Quick Details
-
Weight (KG):
-
0
-
Power:
-
CNC
-
Raw Material:
-
Steel Bar
-
Single Wire (mm):
-
5-13
-
Double Wire (mm):
-
5-10
-
Max. bending angle °:
-
±180
-
Max.length of stirrup side (mm):
-
1400
-
Min length of stirrup side (mm):
-
90
-
Max traction speed (m/min):
-
75-100
-
Max. bending speed (°/sec):
-
800-1450
-
Installed power (kw):
-
27
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
CABR/M
-
Year:
-
2024
-
Weight (KG):
-
0
-
Power:
-
CNC
-
Raw Material:
-
Steel Bar
-
Single Wire (mm):
-
5-13
-
Double Wire (mm):
-
5-10
-
Max. bending angle °:
-
±180
-
Max.length of stirrup side (mm):
-
1400
-
Min length of stirrup side (mm):
-
90
-
Max traction speed (m/min):
-
75-100
-
Max. bending speed (°/sec):
-
800-1450
-
Installed power (kw):
-
27
Product Overview

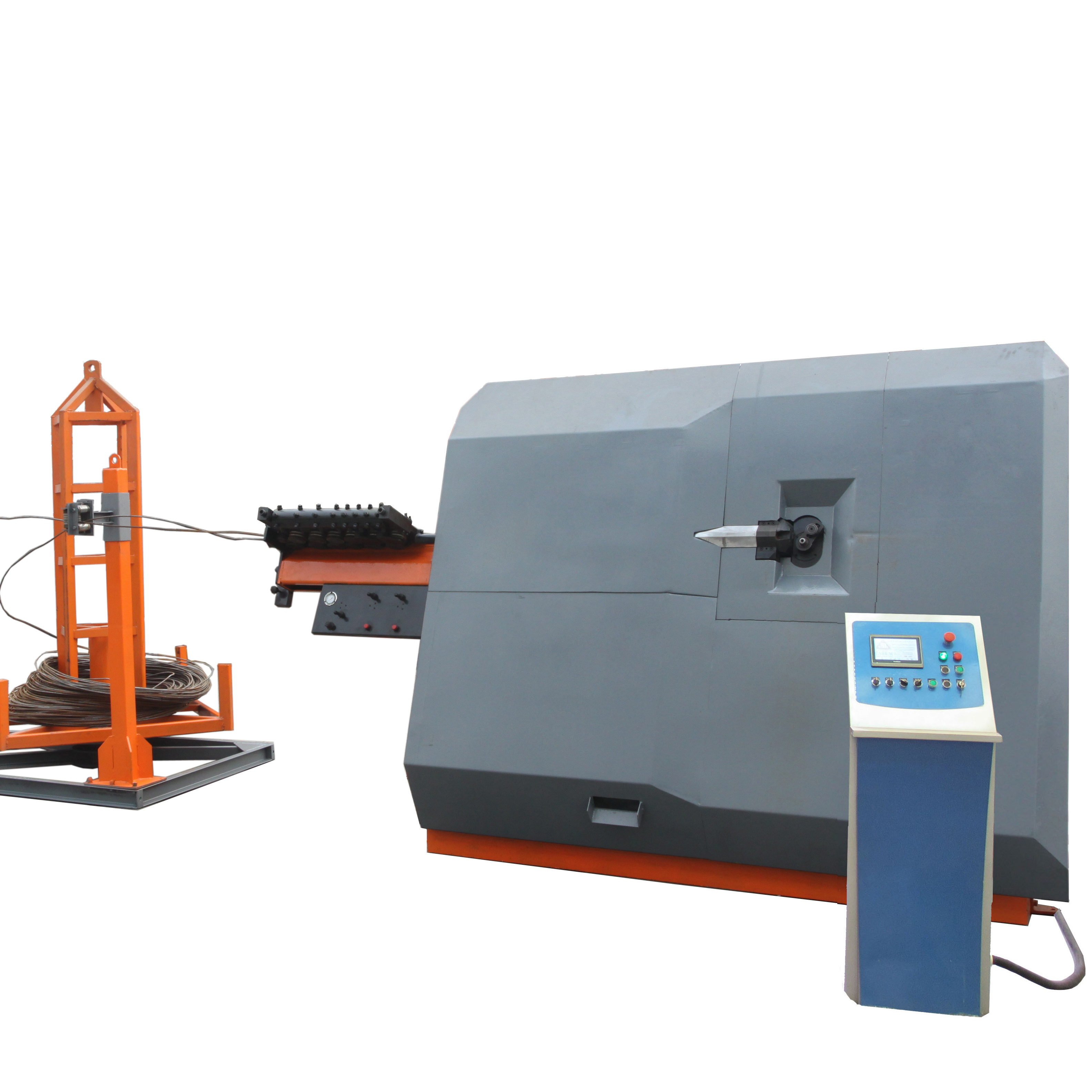

Automatic Rebar Stirrup Bending Machine
The Automatic rebar stirrup bending machine controlled by servo system, can automatically accomplish rebar feeding, straightening,bending and cutting working. Could continuously bend various stirrup figure, mainly used for produce rebar hook and stirrup product in construction, bridge, high-speed road and rebar fabricate plant.
Technical Advantages:
1.Automatic wire feeding system (CNC)
2.Moveable air compressor design, to ensure better cooling effect, easy transportation and installation.
3.Split, multi-blade design (patented) to reduce consumption costs.
4.Large storage capacity can save 500 processing geometric graphics, high degree automation.
5.Automatic double wire feeding system, high processing efficiency.
6.High power feeding motor to ensure bending bar accuracy.
7.The intelligent fault identification alarm system maintenance more convenient.
8.Aerodynamic design observation door, easy adjustment and maintenance, and more security and fast.
9.Heavy-duty design line planes, equipped with a brake and buffer device can prevent chaotic lines caused by downtime.
10.High quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with operating costs.
11.Touch-screen console, easy to operate, and more fast.
12.High efficiency and accurate processing precision.
1.Automatic wire feeding system (CNC)
2.Moveable air compressor design, to ensure better cooling effect, easy transportation and installation.
3.Split, multi-blade design (patented) to reduce consumption costs.
4.Large storage capacity can save 500 processing geometric graphics, high degree automation.
5.Automatic double wire feeding system, high processing efficiency.
6.High power feeding motor to ensure bending bar accuracy.
7.The intelligent fault identification alarm system maintenance more convenient.
8.Aerodynamic design observation door, easy adjustment and maintenance, and more security and fast.
9.Heavy-duty design line planes, equipped with a brake and buffer device can prevent chaotic lines caused by downtime.
10.High quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with operating costs.
11.Touch-screen console, easy to operate, and more fast.
12.High efficiency and accurate processing precision.
PRODUCT SPECIFICATIONS
|
Model
|
GGJ13
|
GGJ16
|
|
|
Single wire (mm)
|
5~13
|
5~16
|
|
|
Dual wire (mm)
|
5~10
|
5~12
|
|
|
Max bending angle(°)
|
±180
|
±180
|
|
|
Max traction speed (m/min)
|
110
|
90
|
|
|
Max bending speed (°/s)
|
1450
|
800-1000
|
|
|
Max side length of stirrup (mm)
|
1400
|
1400
|
|
|
Length accuracy (mm)
|
±1
|
±1
|
|
|
Angle accuracy (°)
|
±1
|
±1
|
|
|
Equipment size (L x B x H) (mm)
|
3500×1400×2100
|
3900×1700×2300
|
|
|
Weight (kg)
|
2400
|
2700
|
|
|
Average power consumption (kw/h)
|
4
|
5.5
|
|
|
Steel wire grade
|
HPB235、HPB300、HRB335、HRB400、HRB500
|
|
|
