Quick Details
-
Model Number:
-
TG2930
-
Product name:
-
Ultrasonic Thickness Gauge
-
Measuring range:
-
1.0-200mm, 0.05-8inch
-
Operating principle:
-
ULTROSONIC
-
Sound velocity:
-
500-9000m/s
-
Calibration block:
-
included
-
Display:
-
5 digits LCD with EL backlight
-
Resolution:
-
0.1mm or 0.01mm
-
Accuracy:
-
±(0.5%H+0.1)
-
RS232C interface:
-
with RS232C
-
Dimensions:
-
126x65x27mm
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
HUATEC
-
Model Number:
-
TG2930
-
Product name:
-
Ultrasonic Thickness Gauge
-
Measuring range:
-
1.0-200mm, 0.05-8inch
-
Operating principle:
-
ULTROSONIC
-
Sound velocity:
-
500-9000m/s
-
Calibration block:
-
included
-
Display:
-
5 digits LCD with EL backlight
-
Resolution:
-
0.1mm or 0.01mm
-
Accuracy:
-
±(0.5%H+0.1)
-
RS232C interface:
-
with RS232C
-
Dimensions:
-
126x65x27mm
Portable Ultrasonic Thickness Gauge Meter /Thickness Measuring Instrument /NDT Test Equipment TG2930
Probe Ultrasonic Thickness Measurement for Chemical Equipment
Application:
Ultrasonic thickness gauge TG-2930 is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc.in industries of petroleum, shipbuilding, power station, and machine manufacturing.
Measuring range (metric/imperial): 1.0-200mm, 0.05-8inch
Operating principle: ULTROSONIC
Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials
Sound velocity: 500-9000m/s
Lower limit steel pipes: 15x2.0mm, 20x3.0mm determined by the transducer
Calibration block: included
Display: 5 digits LCD with EL backlight
Resolution: 0.1mm or 0.01mm
Accuracy: ±(0.5%H+0.1)
RS232C interface: with RS232C
Power supply: 4x1.5V AAA (UM-4)battery
Battery indicator: low battery indicator
Operating conditions:0-+45℃(32℉-104℉), ≤90%RH
Dimensions: 126x65x27mm
Weight: 81g(not including battery)

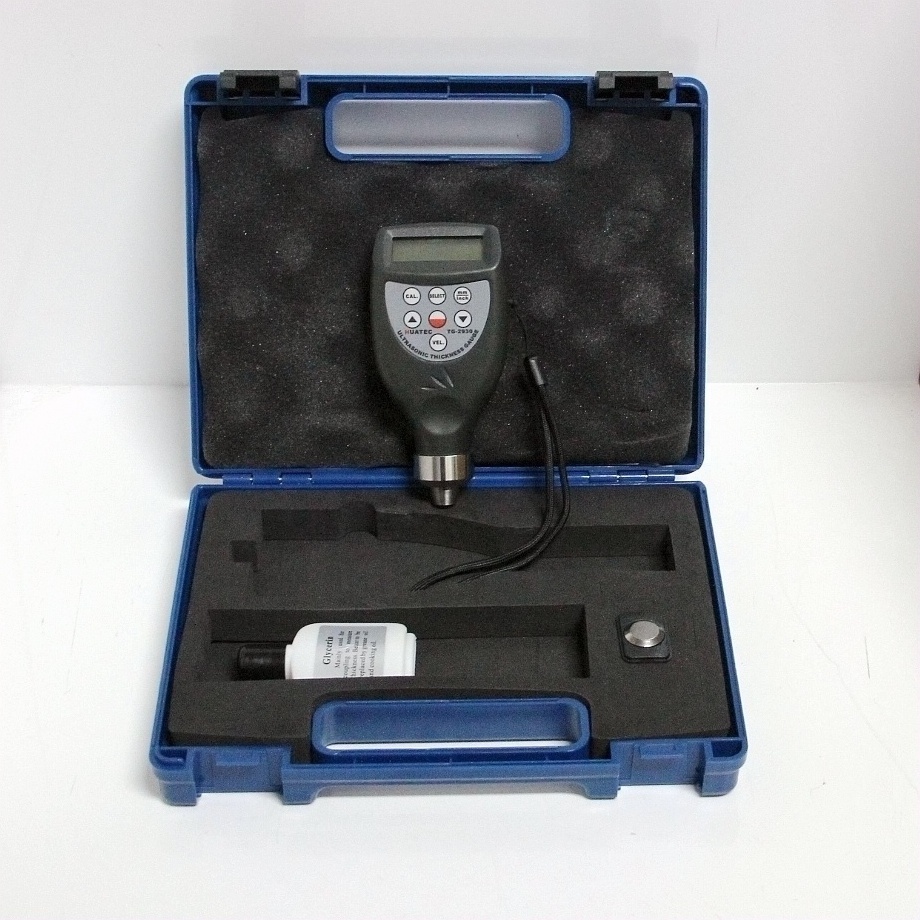

Standard Delivery
Main unit 1
5M 8 Transducer inbuilt 1
Couplant bottle 1
Carrying case 1
Instruction manual 1
Optional Accessories
Cable and Software for RS232C interface
