- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JUXIN
-
Product Name:
-
Trailer Suspension Trailer Spring American Type
-
Material:
-
Steel
-
Type:
-
2 /3/4 Axle Trailer Suspension
-
Color:
-
Orange
-
MOQ:
-
10 Pcs
-
Weight:
-
190kgs-700kgs
-
Balance arm pin shaft:
-
50mm,60mm,70mm
-
Bracket height:
-
H+10/H/H-10
-
Plate spring:
-
90*10*13
-
Scaffold material:
-
T510/Q345
Quick Details
-
OE NO.:
-
FJX2020
-
Max Payload:
-
30T
-
Size:
-
STANDARD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JUXIN
-
Product Name:
-
Trailer Suspension Trailer Spring American Type
-
Material:
-
Steel
-
Type:
-
2 /3/4 Axle Trailer Suspension
-
Color:
-
Orange
-
MOQ:
-
10 Pcs
-
Weight:
-
190kgs-700kgs
-
Balance arm pin shaft:
-
50mm,60mm,70mm
-
Bracket height:
-
H+10/H/H-10
-
Plate spring:
-
90*10*13
-
Scaffold material:
-
T510/Q345

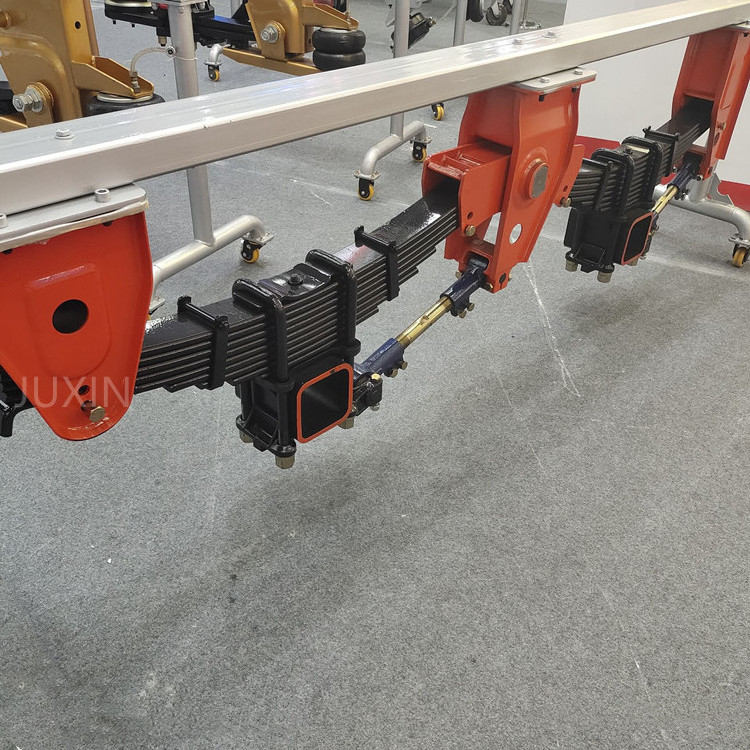

Description:
Our trailer suspension equipped with strong one-piece or welded axle head, exceeding the industry standard for hardness and
tensile strength. Stable and reliable brake system with non-asbestos brake linings.
1. Products Name: American type trailer suspension with leaf spring
2. Suspension Track: 1310mm
3. Suspension Hanger Thickness: 6mm
4. Product type: American, Germany and Europe type
5. Two axles and three axles type are available
6.Equalizer Thickness: 12mm
7.Material: Steel
8.Equalizer Pin: 60mm
Our trailer suspension equipped with strong one-piece or welded axle head, exceeding the industry standard for hardness and
tensile strength. Stable and reliable brake system with non-asbestos brake linings.
1. Products Name: American type trailer suspension with leaf spring
2. Suspension Track: 1310mm
3. Suspension Hanger Thickness: 6mm
4. Product type: American, Germany and Europe type
5. Two axles and three axles type are available
6.Equalizer Thickness: 12mm
7.Material: Steel
8.Equalizer Pin: 60mm
|
Model
|
height traction boarrd
|
L1(MM)
|
L2(MM)
|
L3(MM)
|
L4(MM)
|
L5(MM)
|
H(MM)
|
|
FJXAS-2/3180
|
1180
|
485
|
1310
|
495
|
1135
|
1155
|
180
|
|
FJXAS-2/3230
|
1230
|
485
|
1310
|
495
|
1135
|
1155
|
230
|
|
FJXAS-2/3270
|
1270
|
485
|
1310
|
495
|
1135
|
1155
|
270
|
|
FJXAS-2/3320
|
1320
|
485
|
1310
|
495
|
1135
|
1155
|
320
|
