Quick Details
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
Joneytech
-
Model Number:
-
IPH5112-ANPR
-
sensor type:
-
1/3" Progressive Scan CMOS
-
Lowest:
-
0.01Lux
-
Electronic:
-
1/25 to 1/30,000 seconds
-
Lens:
-
CS interface, fixed iris, 6mm prime lens
-
Recognition rate:
-
≥95%
-
Recognizable license plates:
-
overseas version
-
Picture output:
-
2 mega-pixel JPEG
-
Ultra-wide dynamics:
-
120dB
-
Triggering mode:
-
Video triggering, coil trigger, vehicle capturing rate≥99%
-
Video compression format:
-
H.264 High Profile , Main Profile, Baseline , MJPEG
Quick Details
-
Special Features:
-
license plate recognition
-
Function:
-
vehicle License Plate recognition and capture, black&white list, large angle recognition, special LP recognition, color recognition function
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
Joneytech
-
Model Number:
-
IPH5112-ANPR
-
sensor type:
-
1/3" Progressive Scan CMOS
-
Lowest:
-
0.01Lux
-
Electronic:
-
1/25 to 1/30,000 seconds
-
Lens:
-
CS interface, fixed iris, 6mm prime lens
-
Recognition rate:
-
≥95%
-
Recognizable license plates:
-
overseas version
-
Picture output:
-
2 mega-pixel JPEG
-
Ultra-wide dynamics:
-
120dB
-
Triggering mode:
-
Video triggering, coil trigger, vehicle capturing rate≥99%
-
Video compression format:
-
H.264 High Profile , Main Profile, Baseline , MJPEG

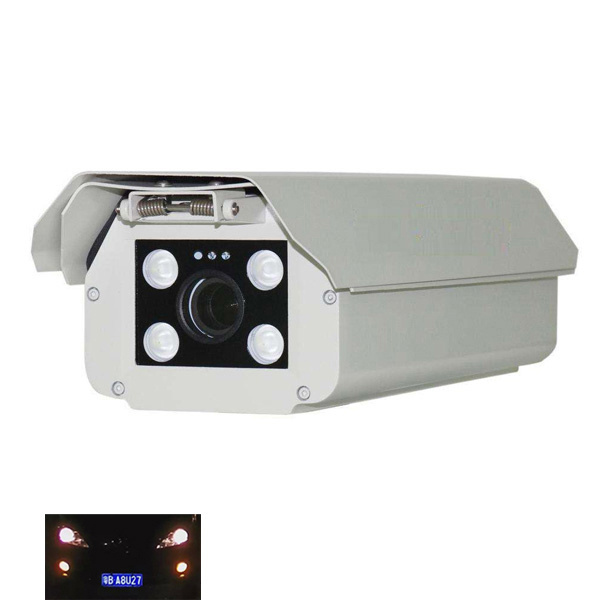

HD LPR ip camera 6-22mm vari-focal lens ANPR camera with License plate recognition for car plate numbers recognition upload and payment system software
Specification
|
Function
|
vehicle License Plate recognition and capture, black&white list, large angle recognition, special LP recognition, color recognition function
|
|
Video Compression Format
|
H.264
|
|
Data Storage Options
|
SD Card
|
|
Hardware indexes
|
|
|
Version
|
V100
|
|
Processor
|
Hisilicon, specialized license plate recognition chip
|
|
sensor type
|
1/3" Progressive Scan CMOS
|
|
Lowest
|
0.01Lux
|
|
Electronic
|
1/25 to 1/30,000 seconds
|
|
Lens
|
CS interface, fixed iris, 6mm prime lens
|
|
Performance indexes
|
|
|
Recognition rate
|
≥95%
|
|
Recognizable license plates
|
overseas version
|
|
Picture output
|
2 mega-pixel JPEG
|
|
Ultra-wide dynamics
|
120dB
|
|
Triggering mode
|
Video triggering, coil trigger, vehicle capturing rate≥99%
|
|
Video compression format
|
H.264 High Profile , Main Profile, Baseline , MJPEG
|
|
Image output
|
1080P（1920×1080），960P（1280x960），720P（1280x720），
D1（704x576），CIF（352x288） |
|
Electric and interface parameters
|
|
|
Network
|
10/100M network adaptive, RJ45 adaptor
|
|
IO
|
interface 2-route input/2-route output 3.5mm connecting terminals
|
|
Power supply
|
AC 220V/DC 12V (optional)
|
|
Power
|
≤7.5W
|
|
Working
|
-35℃~+70℃
|
|
Working
|
≤90% (no condensing)
|
|
Protection
|
IP66
|
|
Surging
|
4KV
|
|
Size (mm)
|
355(L)*151(W)*233(H)
|
|
Weight
|
2.69kg
|
Product features
Built-in vehicle license plate recognition algorithm ;
Support Black & White list ( Hereinafter referred to as B/W list ) management;
Built in LED light, can be used for fill-in light at night recognition;
The algorithm can automatic adjust camera image brightness per to environment light,to ensure the image capture quality whole
day;
The algorithm can automatic adjust camera image brightness per to the vehicle LP brightness ,to ensure LP recognition rate in
smooth and backlight environment;
Support Video ,coil and coil &video hybrid trigger capture mode;
Prime lens, can support from 2.8 to 10 meters recognition, automatic adjustment algorithm resolution;
Support remote access and control;
Support voice broadcast and two-way voice intercom
Support real-time or offline SD card storage, when network recovery, can automatically upload capture data;
Supports variety of SDK docking methods, it is more convenient for camera integration and development ;
Multi-IOs design, control the gate to open, close, normally open, normally closed, receive triggering and anti-crash ground
signal, receive multi-channel gate state signal;
Maximum support for 70°large angle LP recognition;
Fully support for special LP recognition;
Supports coil mode non-motor vehicle filtration;
Support ten car body color recognition .
Built-in vehicle license plate recognition algorithm ;
Support Black & White list ( Hereinafter referred to as B/W list ) management;
Built in LED light, can be used for fill-in light at night recognition;
The algorithm can automatic adjust camera image brightness per to environment light,to ensure the image capture quality whole
day;
The algorithm can automatic adjust camera image brightness per to the vehicle LP brightness ,to ensure LP recognition rate in
smooth and backlight environment;
Support Video ,coil and coil &video hybrid trigger capture mode;
Prime lens, can support from 2.8 to 10 meters recognition, automatic adjustment algorithm resolution;
Support remote access and control;
Support voice broadcast and two-way voice intercom
Support real-time or offline SD card storage, when network recovery, can automatically upload capture data;
Supports variety of SDK docking methods, it is more convenient for camera integration and development ;
Multi-IOs design, control the gate to open, close, normally open, normally closed, receive triggering and anti-crash ground
signal, receive multi-channel gate state signal;
Maximum support for 70°large angle LP recognition;
Fully support for special LP recognition;
Supports coil mode non-motor vehicle filtration;
Support ten car body color recognition .
