Quick Details
-
Name:
-
6m to 10m street pole telescopic CCTV aerial masts
-
Extended height:
-
6m to 10m
-
Retracted height:
-
1.2m to 1.95m
-
Maximum head loads:
-
10kg to 15kg
-
Wind load:
-
80km/h
-
Material:
-
Main Pole: aluminum alloy 6063 T5
-
Color:
-
light bronze
-
Collar style:
-
normal non-lock
-
Lifting speed:
-
2.0m per minute
-
Certificate:
-
CE
Quick Details
-
Brand Name:
-
Talents pneumatic telescopic CCTV aerial masts
-
Model Number:
-
TAL-P002
-
Place of Origin:
-
Tianjin, China
-
Name:
-
6m to 10m street pole telescopic CCTV aerial masts
-
Extended height:
-
6m to 10m
-
Retracted height:
-
1.2m to 1.95m
-
Maximum head loads:
-
10kg to 15kg
-
Wind load:
-
80km/h
-
Material:
-
Main Pole: aluminum alloy 6063 T5
-
Color:
-
light bronze
-
Collar style:
-
normal non-lock
-
Lifting speed:
-
2.0m per minute
-
Certificate:
-
CE
What is a Pneumatic Mast?
Pneumatic masts are a type of elevation solution using compressed air to raise the central column to its extended height. The masts can either be locking, which each section locks into place once it reaches its maximum extension - designed for safety and long term use( do not lift down the mast), or non-locking where each section sits on cushion
of air- more appropriate for short time using.
Classification of masts
Model"AT8"---no cable and no lock, for Short time using and small head load.
Model"AT9"---with lock. for long time using and large head load.
Model"AT7"---with cable. for mounting camera, lights or antenna.
Common application
Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.
Mast specification
Available Extended height:2m to 30m
Head load capacity:5kg to 300kg.
Lift operation choose
If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.
If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.
|
mobile telecommunication tower 6m to 10m street pole telescopic CCTV aerial masts
|
|
|
|
Model No.
|
TAL-P10-1.95-15
|
|
|
Material
|
aluminum alloy6063B/T5
|
|
|
surface treatment
|
Hard anodizing
|
|
|
Color
|
Bronze
|
|
|
Extended height
|
10.0m
|
|
|
Retracted height
|
1.95m
|
|
|
Max head load
|
15kg
|
|
|
Sections
Number
|
7 sections
each section tube OD& thickness
1# 140/5.0mm 2# 118/4.0mm
3# 98/4.0mm 4# 82/3.5mm
5# 66/3.0mm 6# 51/3.0mm
7# 36/3.0mm |
|
|
Mast net weight
|
85kg( without accessories)
|
|
|
Max wind load
|
100km/h ( with guy wire fixed)
|
|
|
top flange
|
150mm/10mm (diameter/thickness)
|
|
|
bottom base
|
235mm/22mm(diameter/thickness)
|
|
|

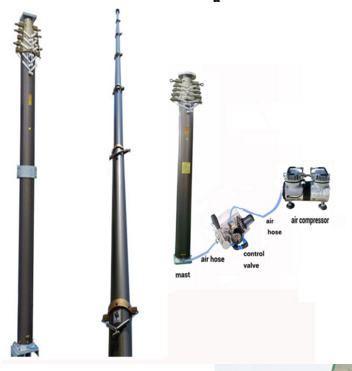

accessories
|
air hose/air compressor/tripod/guy wire/ steel stakes
|
|
Acessories for
8m aluminum pneuma
tic telescopic pole mobil
e antenna
.
Operation steps
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.
9. when lift down the mast, please pull down the lifting control valve handle bar..
|
Pneumatic telescopic mast
|
|
|
|
|
|
|
||||||
|
MODEL No.
|
Extended
Height (m) |
Retracted
Height (m) |
Bottom
OD (mm) |
TOP
OD (mm) |
Section
NO. |
Head-load
(KG) |
||||||
|
TAL-2.0-1.3-150-AT8
|
2
|
1.3
|
118
|
98
|
2
|
150
|
||||||
|
TAL-3.0-1.5-50-AT8
|
3
|
1.5
|
98
|
66
|
3
|
50
|
||||||
|
TAL-4.0-1.3-20-AT8
|
4
|
1.3
|
87
|
43
|
4
|
20
|
||||||
|
TAL-4.5-1.65-50-AT9
|
4.5
|
1.65
|
118
|
66
|
4
|
50
|
||||||
|
TAL-5.0-1.7-40-AT8
|
5
|
1.7
|
98
|
51
|
4
|
40
|
||||||
|
TAL-5.0-1.75-30-AT9
|
5
|
1.75
|
98
|
51
|
4
|
30
|
||||||
|
TAL-6.0-1.7-30-AT8
|
6
|
1.7
|
118
|
51
|
5
|
30
|
||||||
|
TAL-6.0-1.75-12-AT8
|
6
|
1.75
|
87
|
28
|
5
|
12
|
||||||
|
TAL-6.0-2.0-50-AT9
|
6
|
2
|
118
|
66
|
4
|
50
|
||||||
|
TAL-6.0-1.95-30-AT8
|
6
|
1.95
|
87
|
43
|
4
|
30
|
||||||
|
TAL-6.0-1.5-25-AT9
|
6
|
1.5
|
118
|
51
|
5
|
25
|
||||||
|
TAL-7.0-1.95-40-AT8
|
7
|
1.95
|
118
|
51
|
5
|
40
|
||||||
|
TAL-8.0-1.8-50-AT9
|
8
|
1.8
|
160
|
51
|
7
|
50
|
||||||
|
TAL-8.0-2.2-60-AT7
|
8
|
2.2
|
140
|
66
|
5
|
60
|
||||||
|
TAL-8.0-2.0-25-AT8
|
8
|
2
|
118
|
36
|
6
|
25
|
||||||
|
TAL-9.0-2.15-30-AT8
|
9
|
2.15
|
140
|
51
|
6
|
30
|
||||||
|
TAL-10.0-2.4-30-AT7
|
10
|
2.4
|
140
|
51
|
6
|
30
|
||||||
|
TAL-12.0-2.7-250-AT8
|
12
|
2.7
|
279
|
140
|
7
|
250
|
||||||
|
TAL-15.0-3.5-150-AT9
|
15
|
3.5
|
229
|
98
|
6
|
150
|
||||||
|
TAL-16.0-3.0-30-AT8
|
16
|
3
|
180
|
51
|
8
|
30
|
||||||
|
TAL-18.0-3.0-100-AT8
|
18
|
3
|
279
|
66
|
10
|
100
|
||||||
|
TAL-20.0-3.3-55-AT8
|
20
|
3.3
|
229
|
66
|
9
|
55
|
||||||
|
TAL-30.0-4.0-30-AT8
|
30
|
4
|
316
|
51
|
13
|
30
|
||||||
NOTE:
above specification does not include all we can do.
