Quick Details
-
Standard lifting height:
-
3m
-
Running test load:
-
375KN
-
Effort required to lift rated load:
-
450*2N
-
Stands of load chain:
-
12
-
Dia. of load chain:
-
10mm
-
Net Weight:
-
228Kg
-
Extra weight per meter of extra lift:
-
28.3Kg
-
Packing size:
-
88*78*42cm
-
Sling Type:
-
Manual Chain
Quick Details
-
Model Number:
-
HSZ-A1 30ton
-
Place of Origin:
-
Hebei, China
-

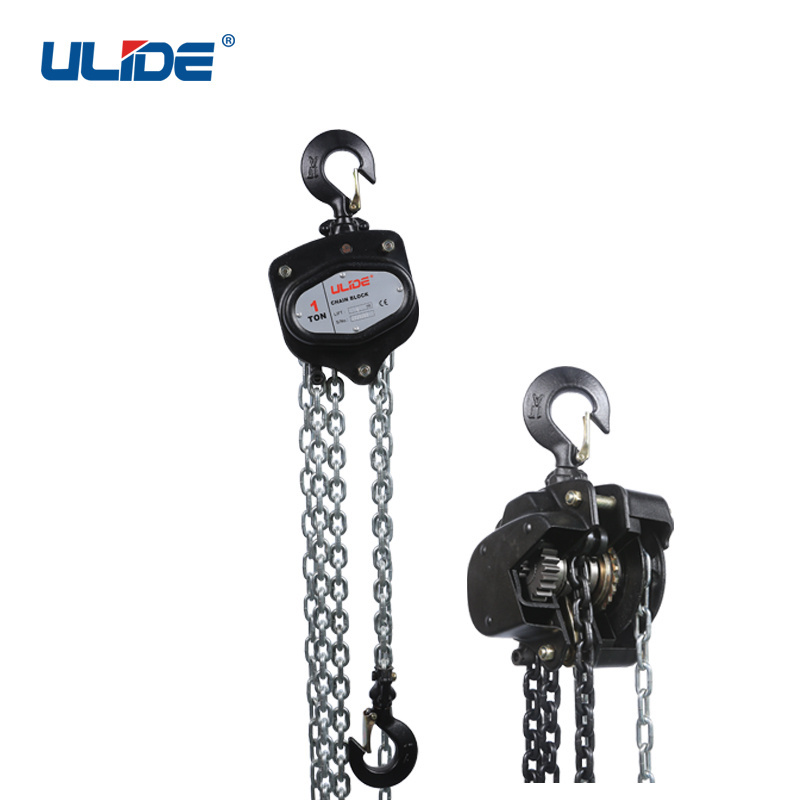

Product name:
-
Chain Hoist
-
Standard lifting height:
-
3m
-
Running test load:
-
375KN
-
Effort required to lift rated load:
-
450*2N
-
Stands of load chain:
-
12
-
Dia. of load chain:
-
10mm
-
Net Weight:
-
228Kg
-
Extra weight per meter of extra lift:
-
28.3Kg
-
Packing size:
-
88*78*42cm
-
Sling Type:
-
Manual Chain
Products Description
|
TECHNICAL PARAMETERS （HSZ-D 250Kg CHAIN BLOCK）
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Rated Load（t)
|
|
10
|
12
|
15
|
20
|
30
|
50
|
75
|
100
|
|||||||||
|
STANDARD LIFT(m）
|
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
|||||||||
|
Running Test Load （KN)
|
|
125
|
150
|
187.5
|
250
|
375
|
625
|
937
|
1250
|
|||||||||
|
Effort required to lift rated load (N)
|
|
420
|
420
|
430
|
420×2
|
450×2
|
450×2
|
450×2
|
450×2
|
|||||||||
|
Strands of the chain
|
|
4
|
4
|
6
|
8
|
12
|
22
|
30
|
38
|
|||||||||
|
Dia. of load chain (mm)
|
|
10
|
10
|
10
|
10
|
10
|
10
|
10
|
10
|
|||||||||
|
Dimensions (mm)
|
A
|
181
|
181
|
181
|
192
|
330
|
410
|
570
|
675
|
|||||||||
|
|
B
|
365
|
365
|
485
|
630
|
670
|
900
|
900
|
900
|
|||||||||
|
|
C
|
798
|
798
|
920
|
890
|
1000
|
1950
|
2100
|
2300
|
|||||||||
|
|
D
|
57
|
57
|
84
|
84
|
84
|
130
|
160
|
180
|
|||||||||
|
|
K
|
70
|
80
|
125
|
162
|
228
|
1085
|
1600
|
1800
|
|||||||||
|
Net Weight （Kg）
|
|
9.8
|
9.8
|
14.2
|
19.6
|
28.3
|
50
|
68
|
87
|
|||||||||
|
Extra weight per meter of extra lift(Kg)
|
|
1
|
1.7
|
1.7
|
2
|
2.3
|
3.1
|
3.1
|
5.3
|
|||||||||
HHBB Electric Chain Hoist
HHBB Electric chain hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the most important parts of the machine is chain and brake system.
HHBB Electric chain hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the most important parts of the machine is chain and brake system.
ADVANTAGES
1. We are devoted to electric chain hoist with rich experience over 10 years；
2. Electric chain hoist capacity is from 500kg to 50T, hook type, manual trolley type, electric type, super-low overhead type, and others customized type( wind power, double hooks, clean type, stage head down type, explosion-proof type)；
3. All the electric chain hoist passed/with CE certification.
4. Light but strong shell, G80 chain with top quality, rubber push button, remote control with high quality.
5. Electric chain hoist can be covered with rain cover, travel limiter, overload limiter.
6. Single speed or dual can be customized!( stationary speed or frequency conversion speed) 7. single phase or 3 phase electric chain hoist : voltage from 220V to 690V, frequency 50/60HZ.
8. Color can be customized: white, black, green,blue, yellow, orange, red, purple, etc.
9. Support OEM & ODM.
1. We are devoted to electric chain hoist with rich experience over 10 years；
2. Electric chain hoist capacity is from 500kg to 50T, hook type, manual trolley type, electric type, super-low overhead type, and others customized type( wind power, double hooks, clean type, stage head down type, explosion-proof type)；
3. All the electric chain hoist passed/with CE certification.
4. Light but strong shell, G80 chain with top quality, rubber push button, remote control with high quality.
5. Electric chain hoist can be covered with rain cover, travel limiter, overload limiter.
6. Single speed or dual can be customized!( stationary speed or frequency conversion speed) 7. single phase or 3 phase electric chain hoist : voltage from 220V to 690V, frequency 50/60HZ.
8. Color can be customized: white, black, green,blue, yellow, orange, red, purple, etc.
9. Support OEM & ODM.
FAQ
Q1: Are you a manufacture or a trading company? Do you support customized service?
A1: We are the professional manufacture.
Yes, of course you can customize. All of our products can be customized depending on your requirements. Please give us the information as straightforward as you can, so we can provide our best design to suit your demands. generally, it will take some time to complete.
Q2: Have you ever exported to the other countries?
A2: Yes, exactly. We have exported to the US, Europe, Southeast and Africa countries before.
Q3: How to confirm the working class of the crane? What kind of package for the hoist?
A3: Please offer us the working environment, working duration, frequency of the crane and our engineer will calculate it for you. It will be packed in non-fumigation wooden box.
Q4: Can you provide lifting tools?
A4: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains
hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc.
Q5: What kind of assistance can you offer with equipment installation?
A5: We have the professional engineer to guide you for installation online.We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
Q6: How do you ship the goods and how long does it take to arrive?
A6： Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.
Q7: What payment terms can you accept?
A7: L/C, D/A, D/P, T/T, Western Union and MoneyGram payments. For example, FOB NINGBO, CIF, DDU, EX WORKS, etc.
Q8: Do you offer guarantee for the products?
A8: Yes, we offer 1 year warranty for our products.
