Scan to see the working video
1.Waste mud and waste solids
discharged from shale shaker, mud
cleaner and centrifuge
2.Drilling mud transfer
3.Waste pit cleaning 4.Hazardous waste recovery
5.Oil sludge, tank bottoms residual
removal and transfer
6.Barge holdings and vessel
bottom clean out
7.Bulk tank and silo transfer of material 8.Sand; Course, fine, conventional
and frac sand
9.Diatomaceous earth 10.Animal waste etc
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
GN
-
Model Number:
-
Solid transfer pump
-
Place of Origin:
-
Hebei, China
-
Structure:
-
vacuum pump
-
Outlet Size:
-
Customized
-
Power:
-
none
-
motor:
-
vacuum pump
-
Max capacity:
-
40m3/h
-
Max suction distance:
-
50 meters
-
Max discharge distance:
-
1000meters
-
Max solid content:
-
80%
-
Max solid size:
-
75mm
-
warranty:
-
12 month
-
MOQ:
-
1 set
-
place of origin:
-
Hebei
-
online support:
-
provide
Quick Details
-
Application:
-
Biofuel Industry, Food and Beverage Industry, Machining, Mining industry, Pharmaceutical industry
-
Pressure:
-
550Kpa-785Kpa
-
Voltage:
-
none
-
Brand Name:
-
GN
-
Model Number:
-
Solid transfer pump
-
Place of Origin:
-
Hebei, China
-
Structure:
-
vacuum pump
-
Outlet Size:
-
Customized
-
Power:
-
none
-
motor:
-
vacuum pump
-
Max capacity:
-
40m3/h
-
Max suction distance:
-
50 meters
-
Max discharge distance:
-
1000meters
-
Max solid content:
-
80%
-
Max solid size:
-
75mm
-
warranty:
-
12 month
-
MOQ:
-
1 set
-
place of origin:
-
Hebei
-
online support:
-
provide
Product Description

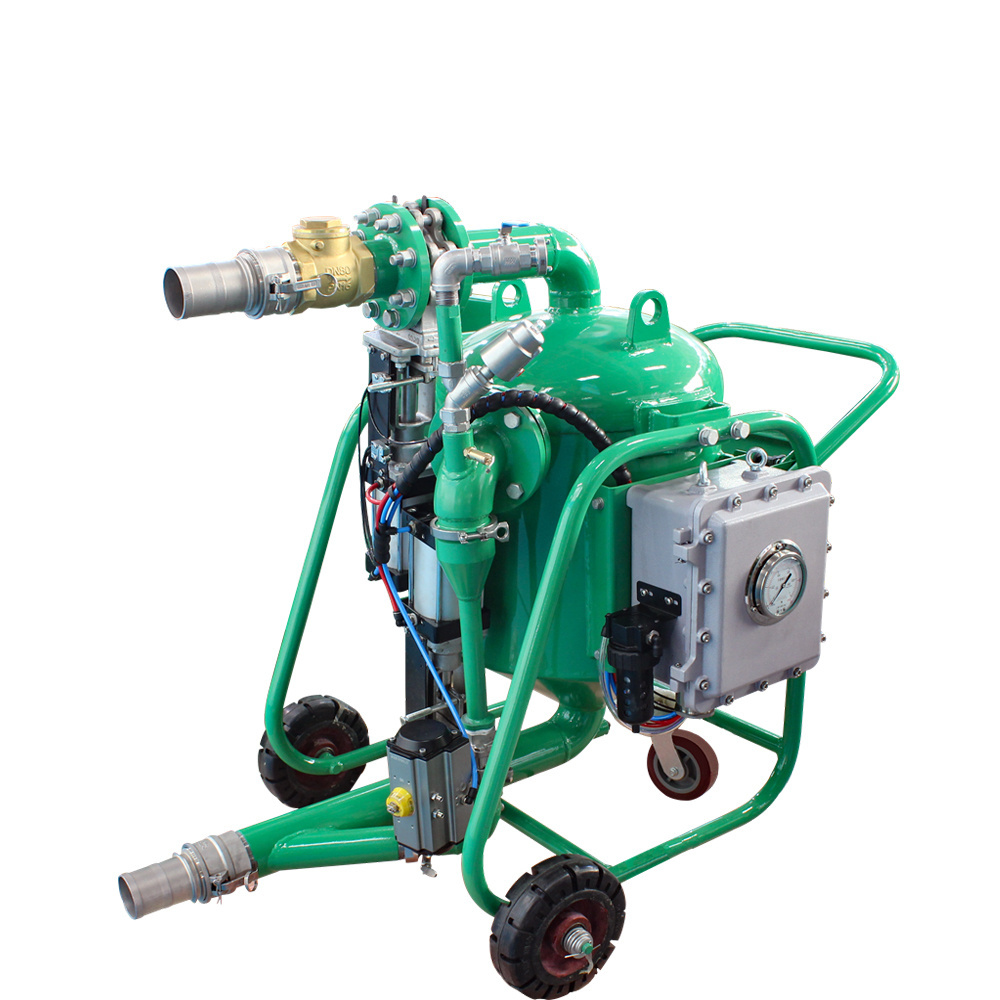

GN Solids Vacuum Pump is fully powered by compressed air to transfer solids, powder, slurry, sludge etc. GN Solids Vacuum Pump is a compact, robust, and efficient pump which is capable of recovering material via 25"hg of vacuum and delivering the over 500 meters. GN Solids vacuum pump single unit is available in 10 m3/h, 20 m3/h and 40 m3/h. GN also is capable to design and make Group Pump Unit in one skid with one
|
Model
|
GNSP-40B
|
GNSP-20B
|
GNSP-10B
|
|
capacity
|
40m3/h
|
20m3/h
|
10m3/h
|
|
dischange distance
|
1000m
|
500m
|
500m
|
|
solid content
|
80%
|
80%
|
80%
|
|
solid size
|
75mm
|
50mm
|
50mm
|
|
air demand
|
17m3/min
|
8m3/min
|
4.3m3/min
|
Material transfer applications：
Detailed Images
solids vacuum pump details
Size Information
Size Chart of This Design
|
Model size
|
GNSP-40B
|
GNSP-20B
|
GNSP-10B
|
||
|
Max Capacity
|
40m3/h
|
20m3/h
|
10m3/h
|
||
|
Inlet/outlet size
|
114mm
|
114mm
|
89mm
|
||
|
Vacuum degree
|
85kpa/25 inch HG(Mercuy Column)
|
15.3
|
15.9
|
||
|
Max Suction distance
|
50m
|
|
|
||
|
Max Discharge distance
|
1000m
|
500m
|
|
||
|
Max solids content
|
80%
|
|
|
||
|
Max solids Size
|
75mm
|
50mm
|
|
||
|
Pressure Request
|
550kpa-785kpa
|
550kpa-690kpa
|
|
||
|
Air demand
|
17m3/min
|
8m3/min
|
4.3m3/min
|
||
|
Dimension(LxWxH)
|
1690*1468*1983mm
|
1421*900*1448mm
|
1283*800*1370mm
|
||
