Quick Details
-
Applicable Models:
-
Universal
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Autool
-
Model Number:
-
CT150
-
Warranty:
-
3 Years
-
Function:
-
Professional Diagnose Tool
-
Package:
-
Standard Packing
-
Feature:
-
Auto Match
-
Weight:
-
10KG
-
Dimensions:
-
39.5*38*30CM
-
Quality:
-
100% Professional Test
-
Performance:
-
Easy Working
-
Material:
-
Aluminum alloy
Quick Details
-
Car Fitment:
-
Universal
-
Voltage:
-
110V/220V
-
Power:
-
70W For Ultrasonic Cleaning
-
Applicable Models:
-
Universal
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Autool
-
Model Number:
-
CT150
-
Warranty:
-
3 Years
-
Function:
-
Professional Diagnose Tool
-
Package:
-
Standard Packing
-
Feature:
-
Auto Match
-
Weight:
-
10KG
-
Dimensions:
-
39.5*38*30CM
-
Quality:
-
100% Professional Test
-
Performance:
-
Easy Working
-
Material:
-
Aluminum alloy
Specification
|

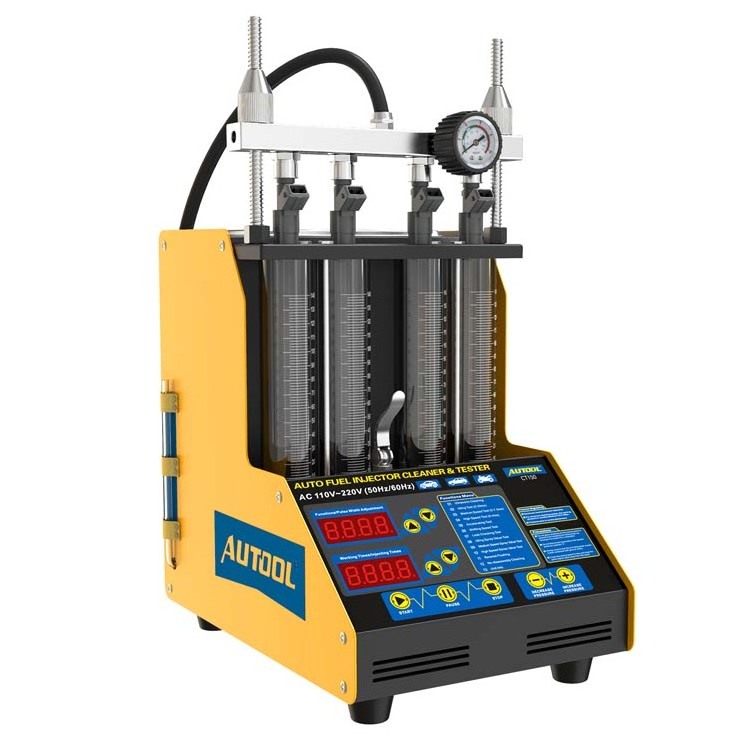

AUTOOL CT150 For Car and Motorcycle Fuel Injector 110v/220v Cleaning Testing Machine
|
|
|
|
Voltage
|
110V/220V
|
|
|
Power
|
70W For Ultrasonic Cleaning
|
|
|
Applicable Models
|
For Most Car
|
|
|
Combination
|
Fuel Injector Cleaner, Fuel Injector Testing, Leaking Test
|
|
|
Place of Origin
|
China
|
|
|
Brand Name
|
AUTOOL
|
|
|
Model Number
|
CT150
|
|
|
Warranty
|
3Years
|
|
|
Product Name
|
Ultrasonic Fuel Injector Cleaner Tester And Cleaner
|
|
|
Weight
|
9.4KG
|
|
|
Function
|
Auto Fuel Injector Cleaning and Testing
|
|
|
Keywords
|
injector cleaner cleaning machine
|
|
|
Dimensions
|
39.5*38*38mm
|
|
|
Power Supply
|
110v/220v
|
|
|
Frequency
|
28KHZ
|
|
|
Ultrasonic Cleaning Power
|
70W
|
|
|
Application
|
Fuel Injection System
|
|
|
Material
|
Metal
|
|
Product Description
How to work--- AUTOOL CT150 Fuel Injector Cleaner Tester
1. Pour in the injector detergent and place the injector nozzle in the ultrasonic cleaner tank.
2. Connect the pulse signal wire and select the ultrasonic cleaning function to remove the carbon deposit.
3. Pour in the test liquid, install the fuel injector to the oil separator and fix it to the main unit by bolts.
4. Test whether the injector nozzle is leaking or blocked under different functions.
Functions Menu：
01. Ultrasonic Cleaning
02. ldling Test (0-20ms)
03. Medium Speed Test (0-7.5ms)
04. High Speed Test (O-4ms)
05. Accelerating Test
06. Shifting Speed Test
07. Leak Checking Test
08. ldling Spray Value Test
09. Medium Speed Spray Value Test
10. High Speed Spray Value Test
11. Reverse Flushing
12. No-disassembly Cleaning
13. Unit Info
Working Condition:
Power supply: AC220V/AC110V±10%
Frequency: 50HZ±0.5
Humidity: ＜85%
Environment Temperature: 0℃～＋40℃
Magnetic Field: ＜400Ａ/m
Spark and fire are prohibited.
Specifications:
Fuel Tank Capacity: 2000 ml
Capacity of Measuring Cylinder: 125 ml
Speed Range: 0~7500 rpm
Injecting Times: 0~9900 Step: 100ms
PWM Pulse: 0~20.0 ms Step: 0.1 ms
System Pressure: 0~0.6Mpa (adjustable)
Time: 0~20 minute (adjustable)
Power of Ultrasonic Cleaning: 70W
Frequency of Ultrasonic Cleaning: 28 KHZ±0.5 KHZ
Weight:10KG
2. Connect the pulse signal wire and select the ultrasonic cleaning function to remove the carbon deposit.
3. Pour in the test liquid, install the fuel injector to the oil separator and fix it to the main unit by bolts.
4. Test whether the injector nozzle is leaking or blocked under different functions.
Functions Menu：
01. Ultrasonic Cleaning
02. ldling Test (0-20ms)
03. Medium Speed Test (0-7.5ms)
04. High Speed Test (O-4ms)
05. Accelerating Test
06. Shifting Speed Test
07. Leak Checking Test
08. ldling Spray Value Test
09. Medium Speed Spray Value Test
10. High Speed Spray Value Test
11. Reverse Flushing
12. No-disassembly Cleaning
13. Unit Info
Working Condition:
Power supply: AC220V/AC110V±10%
Frequency: 50HZ±0.5
Humidity: ＜85%
Environment Temperature: 0℃～＋40℃
Magnetic Field: ＜400Ａ/m
Spark and fire are prohibited.
Specifications:
Fuel Tank Capacity: 2000 ml
Capacity of Measuring Cylinder: 125 ml
Speed Range: 0~7500 rpm
Injecting Times: 0~9900 Step: 100ms
PWM Pulse: 0~20.0 ms Step: 0.1 ms
System Pressure: 0~0.6Mpa (adjustable)
Time: 0~20 minute (adjustable)
Power of Ultrasonic Cleaning: 70W
Frequency of Ultrasonic Cleaning: 28 KHZ±0.5 KHZ
Weight:10KG
Packing & Delivery
Package includes:
1pcs * AUTOOL CT150 Fuel Injector Cleaner Tester Main Unit;
1pcs * Oil Separator;
1pcs * Funnel;
2pcs * Pulse Signal Cable;
1pcs * Cleaning Fluid Drain Valve;
2pcs * Fixing Bolt;
4pcs * 14mm Cleaning Connector;
4pcs * 17mm Cleaning Connector;
4pcs * Washer; 3pcs * Plug;
4pcs * Sealing Ring;
1pcs * Ultrasonic Cleaning Cover;
1pcs * Ultrasonic Cleaning Bracket;
1pcs * Power Cable;
1pcs * CT150 User Manual.
