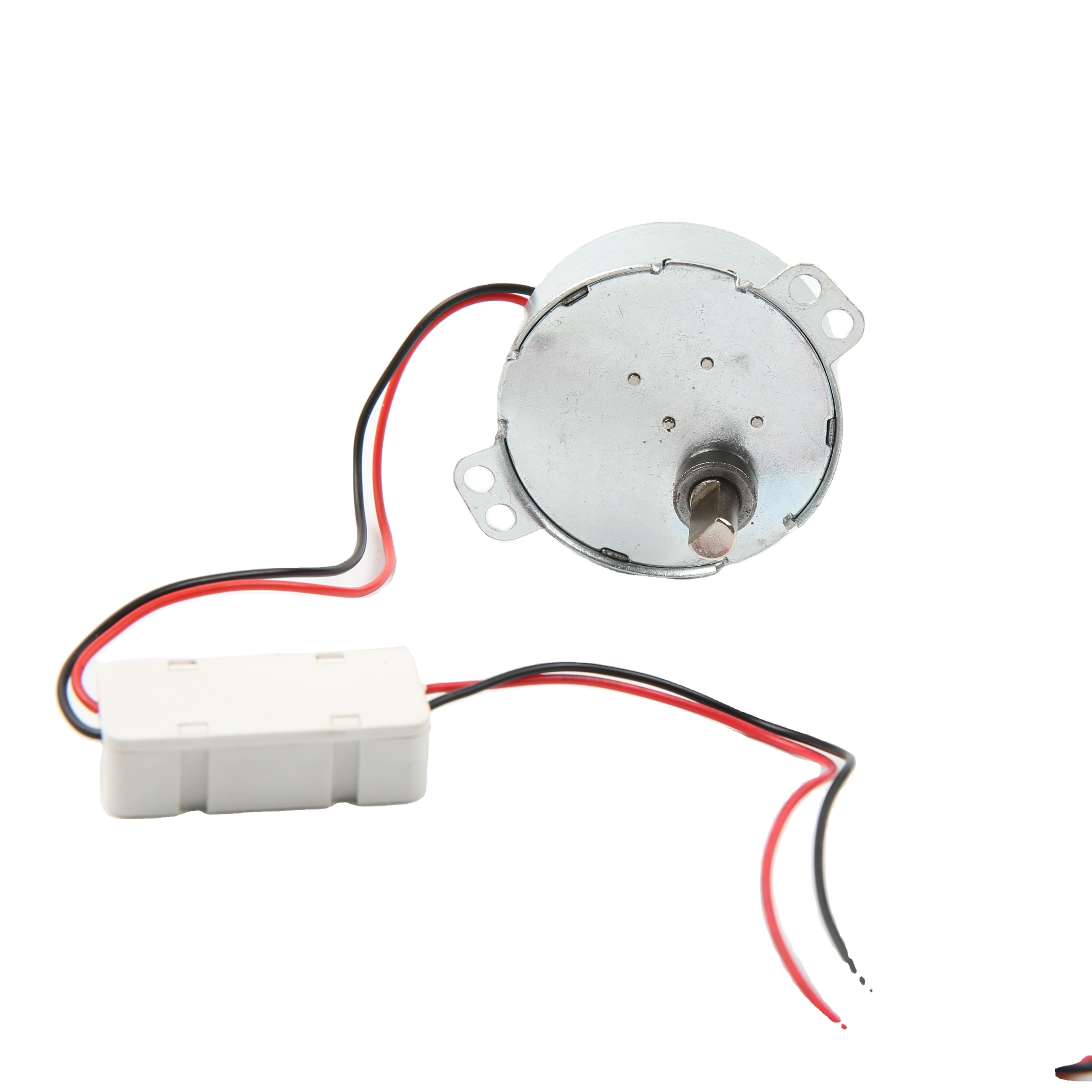

CW CCW dc gear motor 12v 24v 49TYJ used in home devices

CW CCW dc gear motor 12v 24v 49TYJ used in home devices

FOB Reference Price: Get Latest Price

≥2 Pieces

US $3

≥100 Pieces

US $2.4

≥2000 Pieces

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: 49TYJ-AC/DC

Frequency:: /

POLEs:: 8

Insulation class:: Class E

Material:: Metal and POM

Size:: 49*19mm

Housing:: Galvanized Steel

RATED POWER:: 4W

SPEED:: 1.7/2/2.5/2.8/4/5/6/8/10/15/20 RPM

Name:: Synchronous Motor

Color:: White

MOQ:: 2000 Pcs

Quick Details

AC Voltage:: DC 12/24V

Place of Origin:: Zhejiang, China

Brand Name:: CIYAN

Model Number:: 49TYJ-AC/DC

Frequency:: /

POLEs:: 8

Insulation class:: Class E

Material:: Metal and POM

Size:: 49*19mm

Housing:: Galvanized Steel

RATED POWER:: 4W

SPEED:: 1.7/2/2.5/2.8/4/5/6/8/10/15/20 RPM

Name:: Synchronous Motor

Color:: White

MOQ:: 2000 Pcs

Product Overview

I ntegrated by a permanent magnet and reduction gearbox, Synchronous motor has following features:

1. Slim Design and Stable Performance;

2. L ow Power Consumption and Constant Rotation Speed;

3. L ow Noise and H igh Torque;

4. Small Size and Light Weight;

5. No Drive Circuit required and easy to use.

At rated frequency, the rotation speed is not affected by voltage. If overload or stall when loaded, the motor coil will not burn. There are three options of rotation direction to choose from: CW, CCW and CW/CCW.
Note：
If you choose the rotation direction CW/CCW and apply load over rated torque, the rotation direction will automatically reverse.

If you choose the rotation direction CW or CCW, the motor will not change its rotation direction.

Note：
This motor is AC Synchronous motor. The rotation speed is only related with frequency.

Please see the parameter table, for example you choose the rotation speed = 2 rpm.
If your country's frequency is 50Hz, the rotation speed is 2 rpm.
If your country's frequency is 60Hz, the rotation speed is 2*1.2= 2.4 rpm.

We can customize various shafts, speed, torque, wire , lead, etc. according to your requirements. Please send an inquiry or TM to tell us. Please leave a message to tell us your choice of voltage, rotation direction ( CW, CCW and CW/CCW ) to get quick quotation.

For example：
220V 50Hz, 2RPM, Torque ＞ 16kgf.cm，CW, wire length=50cm

Drawing
