Quick Details
-
Power:
-
205KW
-
Place of Origin:
-
American
-
Brand Name:
-
CAT
-
Maximum Digging Height:
-
6950MM
-
Maximum Digging Depth:
-
7240MM
-
Machine Weight:
-
31400 kg
-
Max Digging Radius:
-
7240MM
-
Rated Speed:
-
3 km/h
-
Marketing Type:
-
New Product 2023
-
Product name:
-
CAT Heavy Crawler Excavator
-
Keywords:
-
Excacator
-
Type:
-
Hydraulic Crawlerl Excavator
-
Name:
-
Heavy Excavator Digging Machine
-
Brand:
-
Caterpillar
-
Model:
-
CAT 330
-
Color:
-
Yellow
-
MOQ:
-
1 UNIT
-
Key words:
-
Earth Digger
-
Feature:
-
Earth-moving Machinery Excavator
Quick Details
-
Operating Weight:
-
35 Ton, 3ton, 7TON, 400 Ton, 90 Ton, 1ton, 500 Ton, 6TON, 80 Ton, 1000 Ton, 300 Ton, 2ton, 50 Ton, 4ton, 60 Ton, 25 ton, 15 Ton, 200 Ton, 0.8 TON, 100 ton, Other, 9 ton, 150 TON, 8 Ton, 5ton, 45 Ton, 70 Ton, 10 TON, 20 Ton, 40 ton, 1.8Ton, 1.2ton, 1.5TON
-
Bucket capacity:
-
1.9m³
-
Engine Brand:
-
CAT
-
Power:
-
205KW
-
Place of Origin:
-
American
-
Brand Name:
-
CAT
-
Maximum Digging Height:
-
6950MM
-
Maximum Digging Depth:
-
7240MM
-
Machine Weight:
-
31400 kg
-
Max Digging Radius:
-
7240MM
-
Rated Speed:
-
3 km/h
-
Marketing Type:
-
New Product 2023
-
Product name:
-
CAT Heavy Crawler Excavator
-
Keywords:
-
Excacator
-
Type:
-
Hydraulic Crawlerl Excavator
-
Name:
-
Heavy Excavator Digging Machine
-
Brand:
-
Caterpillar
-
Model:
-
CAT 330
-
Color:
-
Yellow
-
MOQ:
-
1 UNIT
-
Key words:
-
Earth Digger
-
Feature:
-
Earth-moving Machinery Excavator

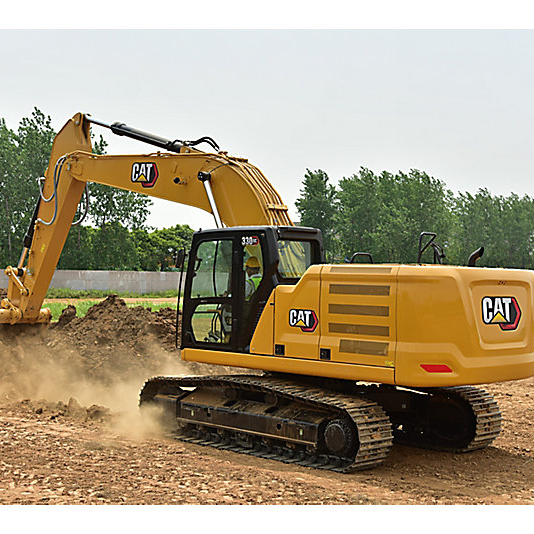

CAT 330 Heavy Duty Famous Brand Crawler Excavator
1.
The CAT 330 raises the performance and fuel efficiency standards for this size class. With the industry's highest level of standard factory technology, a new cab focused on operator comfort and productivity, and lower fuel and maintenance costs, the 330 will set a new pace for your operational productivity and profits.
2. With a larger hydraulic pump, a new electro-hydraulic system and a larger bucket capacity, the machine can deliver more work per unit of fuel.
3. The combination of fewer maintenance items and longer and more synchronized maintenance intervals increases uptime and reduces costs.
4. Offers the industry's highest level of standard factory-equipped technology, including Cat Grade with 2D, Grade with Assist, and Payload.
2. With a larger hydraulic pump, a new electro-hydraulic system and a larger bucket capacity, the machine can deliver more work per unit of fuel.
3. The combination of fewer maintenance items and longer and more synchronized maintenance intervals increases uptime and reduces costs.
4. Offers the industry's highest level of standard factory-equipped technology, including Cat Grade with 2D, Grade with Assist, and Payload.
5.
The 330 emits up to 5% less CO2 than the previous 330F.
|
Net Power - ISO 9249
|
203.7 kW
|
|
Engine Model
|
Cat® C7.1
|
|
Engine Power - ISO 14396
|
205 kW
|
|
Bore
|
105 mm
|
|
Stroke
|
135 mm
|
|
Displacement
|
7.01 l
|
|
Main System - Maximum Flow
|
560 l/min (148 gal/min)
|
|
Maximum Pressure - Equipment
|
35000 kPa
|
|
Maximum Pressure - Equipment - Lift Mode
|
38000 kPa
|
|
Maximum Pressure - Travel
|
35000 kPa
|
|
Maximum Pressure - Swing
|
29800 kPa
|
|
Swing Speed
|
11.5 r/min
|
|
Maximum Swing Torque
|
110 kN·m
|
|
Operating Weight
|
31400 kg
|
|
Fuel Tank Capacity
|
474 l
|
|
Cooling System
|
25 l
|
|
Engine Oil
|
25 l
|
|
Swing Drive
|
10 l
|
|
Final Drive - Each
|
5.5 l
|
|
Hydraulic System - Including Tank
|
310 l
|
|
Hydraulic Tank
|
147 l
|
|
DEF Tank
|
41 l
|
|
Boom
|
Reach 6.15 m (20'2")
|
|
Stick
|
R3.2CB2
|
|
Bucket
|
HD 1.76 m3 (2.30 yd³)
|
|
Shipping Height - Top of Cab
|
3060 mm
|
|
Handrail Height
|
3060 mm
|
|
Shipping Length
|
10420 mm
|
|
Tail Swing Radius
|
3130 mm
|
|
Counterweight Clearance
|
1120 mm
|
|
Ground Clearance
|
490 mm
|
|
Track Length
|
4860 mm
|
|
Length to Center of Rollers
|
3990 mm
|
|
Track Gauge
|
2590 mm
|
|
Transport Width
|
3390 mm
|
|
Maximum Digging Depth
|
7240 mm
|
|
Boom
|
Reach 6.15 m (20'2")
|
|
Stick
|
R3.2CB2
|
|
Bucket
|
HD 1.76 m3 (2.30 yd³)
|
|
Maximum Reach at Ground Level
|
10680 mm
|
|
Maximum Cutting Height
|
10030 mm
|
|
Maximum Loading Height
|
6950 mm
|
|
Minimum Loading Height
|
2300 mm
|
|
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom
|
7090 mm
|
|
Maximum Vertical Wall Digging Depth
|
6010 mm
|
|
Bucket Digging Force - ISO
|
179 kN
|
|
Stick Digging Force - ISO
|
126 kN
|
|
Recyclability
|
97%
|
