Quick Details
-
Item:
-

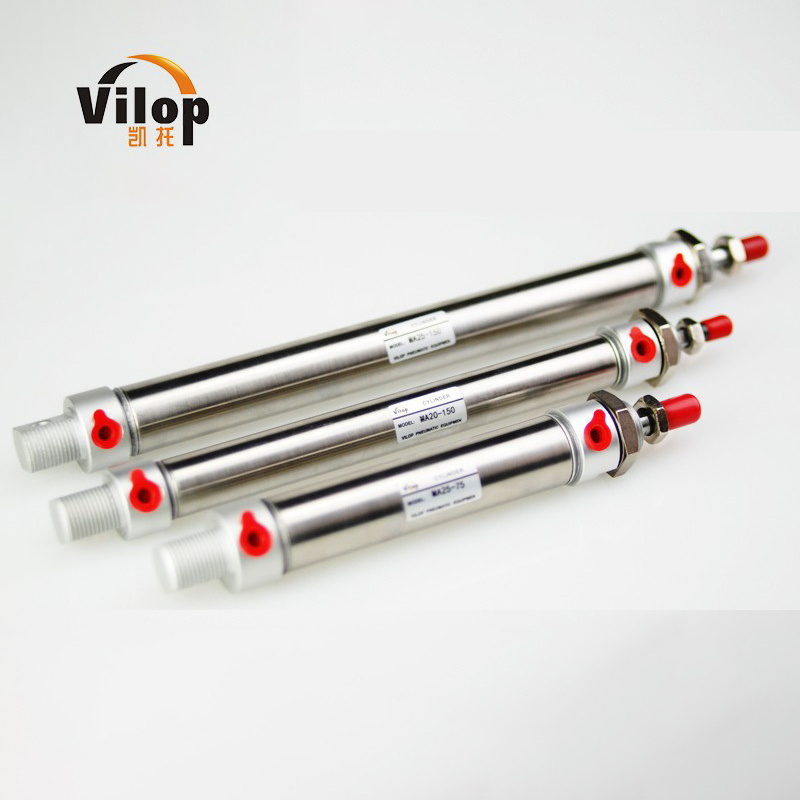

MA/MAC Series Stainless Steel Mini Cylinder
-
Bore:
-
16-63mm
-
Motion pattern:
-
Doulbe Action
-
Working Fluid:
-
Air
-
Operating pressure range:
-
0.4~9.0Mpa
-
Working temperature:
-
-20~70
-
Working speed range:
-
50-800mm
-
Cushion Type:
-
Adjustable Cushion
-
OEM/ODM:
-
Accepted
Quick Details
-
Core Components:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Vilop
-
Item:
-
MA/MAC Series Stainless Steel Mini Cylinder
-
Bore:
-
16-63mm
-
Motion pattern:
-
Doulbe Action
-
Working Fluid:
-
Air
-
Operating pressure range:
-
0.4~9.0Mpa
-
Working temperature:
-
-20~70
-
Working speed range:
-
50-800mm
-
Cushion Type:
-
Adjustable Cushion
-
OEM/ODM:
-
Accepted
MA/MAC Series Stainless Steel Mini Cylinder Stainless Steel Mini Cylinder MA50-70 MA Round Cylinders
Our main products range include standaed and no-standard pneumatic cylinders, pneumatic valves , solenoid valves , , etc. With long time service expreience in industrial automation field, we shall be your right selection and helper on improving your productivity
Product Description
|
|
Brand Name | Vilop |
| Model | SC/SU Series | |
| Structure | Piston Cylinder | |
| MOQ | 20 PC |
Product Feature
1.Standard cylinder manufactured by our enterprise.
2.Piston adopts heterogeneous two-way seal structure. It has compact size and has the function of grease reservation.
3.Front cover has fixed bumper which can reduce the impact of direction change of the cylinder.
4.There are several modes of back cover, which makes the installation of cylinder more convenient.
5.Front and back cover and stainless steel block adopt riveted rolling packer structure to form a reliable connection.
6.The cylinder body has stainless steel pipes with high precision to produce high strength and corrosion resistance.
7.There are cylinders and mounting accessories with several specifications for your choice.
8.All cylinders of this series have magnet.
Product Details
| MA Specification | |||||||||||
| Bore size(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | ||||
| Acting type | MSA,MTA | Single acting | - | ||||||||
| MA.MAD,MAJ | Double acting | - | |||||||||
| MAR | - | Double acting | |||||||||
| MAC,MACD,MACJ | - | Double acting with cushion | |||||||||
| Fluid | Air(to be filtered by 40µ m filter element) | ||||||||||
| Operating pressure | Double acting | 0.1~1.0MPa(15~145psi)(1.0~10.0bar) | |||||||||
| Sing acting | 0.2~1.0MPa(28~145psi)(2.0~10.0bar) | ||||||||||
| Proof pressure | 1.5MPa(215psi)(15bar) | ||||||||||
| Temperature ℃ | -20~70 | ||||||||||
| Speed range mm/s | Double acting:30~800 single acting:50~800 | ||||||||||
| Stroke tolerance | 0~150+1.0>150+1.4 | ||||||||||
| Cushion type | MAC,MACD,MACJ Series:Adjustable cushion Other series:Bumper | ||||||||||
| Port size | M5*0.8 | 1/8” | 1/4” | ||||||||
| PT thread,NPT thread and G thread are available. | |||||||||||
Stroke
| Bore Size(mm) | *Standard Stroke(mm) | Allowable Strock |
| 16 | 25,50,75,100,125,150,160,175,200 | 500 |
| 20 | 25,50,75,100,125,150,160,175,200,250,300 | 650 |
| 25,32,40,50,63 | 25,50,75,100,125,150,160,175,200,250,300,350,400,450,500 | 650 |
*For long strokes,it will be made-to-order
Ordering code
