Quick Details
-
Place of Origin:
-
Heilongjiang, China
-
Brand Name:
-
Langsung
-
Model Number:
-
KYN28A-24
-
Material:
-
metal
-
Product name:
-
KYN28A-24 Power Distribution Cabinet
-
Power frequency withstand voltage:
-
42kV/1min
-
Impulse withstand voltage:
-
75kV
-
Rated frequency:
-
50Hz
-
Rated current:
-
630-4000A
-
Rated thermal stability current:
-
16-50kA/4S
-
Rated dynamic stability current:
-
40-125kA
-
Rated short-circuit breaking current:
-
16-50kA
-
Rated short-circuit making current:
-
40-125kA
-
direct:
-
24,30,48,60,110,220
-
Color:
-
White / Gray
Quick Details
-
Voltage:
-
24
-
Current:
-
4000
-
Size:
-
2450
-
Place of Origin:
-
Heilongjiang, China
-
Brand Name:
-
Langsung
-
Model Number:
-
KYN28A-24
-
Material:
-
metal
-
Product name:
-
KYN28A-24 Power Distribution Cabinet
-
Power frequency withstand voltage:
-
42kV/1min
-
Impulse withstand voltage:
-
75kV
-
Rated frequency:
-
50Hz
-
Rated current:
-
630-4000A
-
Rated thermal stability current:
-
16-50kA/4S
-
Rated dynamic stability current:
-
40-125kA
-
Rated short-circuit breaking current:
-
16-50kA
-
Rated short-circuit making current:
-
40-125kA
-
direct:
-
24,30,48,60,110,220
-
Color:
-
White / Gray
Products Description
Characteristics

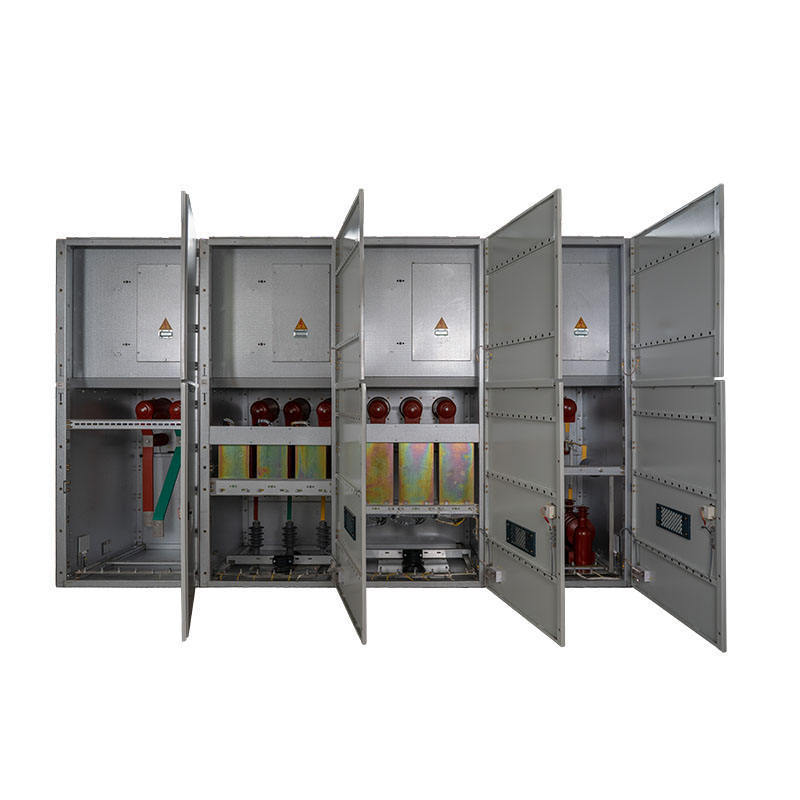

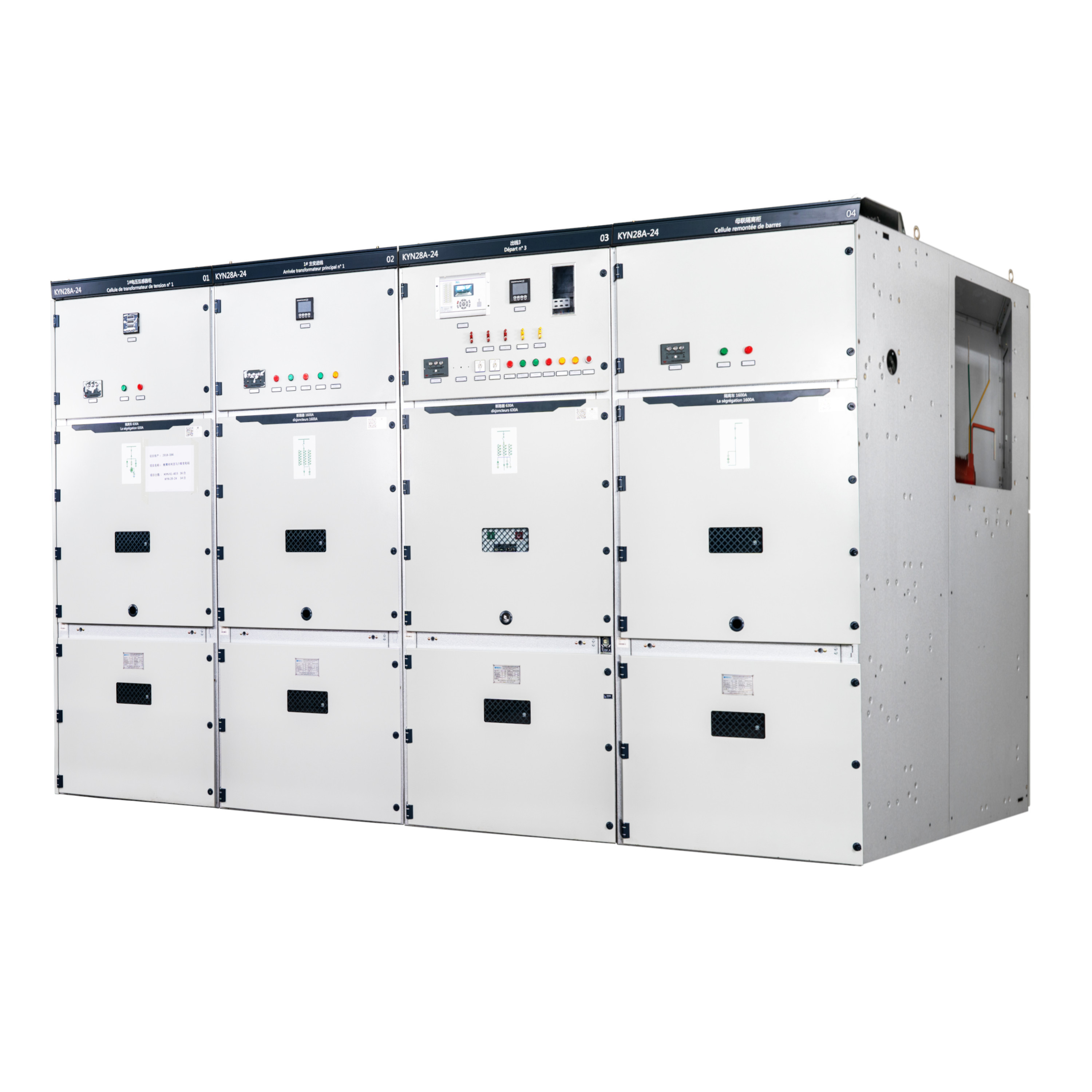

KYN28A-24 metal-armored high-voltage handcar switchgear is a new product designed and developed by our company on the basis of KYN28A-12 switchgear absorbing domestic and foreign advanced manufacturing technology to meet the needs of the power grid.
Suitable for 24KV power distribution system, feed, control and distribution. The product is mainly used in 24KV power distribution system.
Metal armored fully enclosed design, vacuum breaker extraction type.
Five anti interlock safe and reliable, can effectively prevent misoperation.
Equipped with advanced relay device, can realize the automation of power system.
Double-sided maintenance scheme, convenient construction and maintenance work.
Technical Parameter
Suitable for 24KV power distribution system, feed, control and distribution. The product is mainly used in 24KV power distribution system.
Metal armored fully enclosed design, vacuum breaker extraction type.
Five anti interlock safe and reliable, can effectively prevent misoperation.
Equipped with advanced relay device, can realize the automation of power system.
Double-sided maintenance scheme, convenient construction and maintenance work.
Technical Parameter
|
Voltage
|
24kV
|
|
Power frequency withstand voltage
|
42kV/1min
|
|
Impulse withstand voltage
|
75kV
|
|
Rated frequency
|
50Hz
|
|
Rated current
|
630-4000A
|
|
Rated thermal stability current
|
16-50kA/4S
|
|
Rated dynamic stability current
|
40-125kA
|
|
Rated short-circuit breaking current
|
16-50kA
|
|
Rated short-circuit making current
|
40-125kA
|
|
direct
|
24、30、48、60、110、220
|
|
communication
|
110、220
|
|
OEM
|
accept
|
|
Degree of protection
|
IP4x
|
