Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
OPTO-EDU
-
Model Number:
-
A23.1502-T1
-
Material:
-
Metal
-
Dimension:
-
/
-
Magnification:
-
45x
-
Eyepiece:
-
WF10x
-
Nosepiece:
-
N/A
-
Zoom Lens:
-
0.7-4.5x
-
Working Stage:
-
Dia.100mm
-
Condenser:
-
N/A
-
Focusing:
-
Coarse
-
Light Source:
-
N/A
-
Power Supply:
-
N/A
-
LCD Screen:
-
N/A
-
Resolution:
-
N/A
Quick Details
-
Warranty:
-
3 years
-
Theory:
-
Stereo Microscope
-
Drawtube:
-
Trinocular
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
OPTO-EDU
-
Model Number:
-
A23.1502-T1
-
Material:
-
Metal
-
Dimension:
-
/
-
Magnification:
-
45x
-
Eyepiece:
-
WF10x
-
Nosepiece:
-
N/A
-
Zoom Lens:
-
0.7-4.5x
-
Working Stage:
-
Dia.100mm
-
Condenser:
-
N/A
-
Focusing:
-
Coarse
-
Light Source:
-
N/A
-
Power Supply:
-
N/A
-
LCD Screen:
-
N/A
-
Resolution:
-
N/A

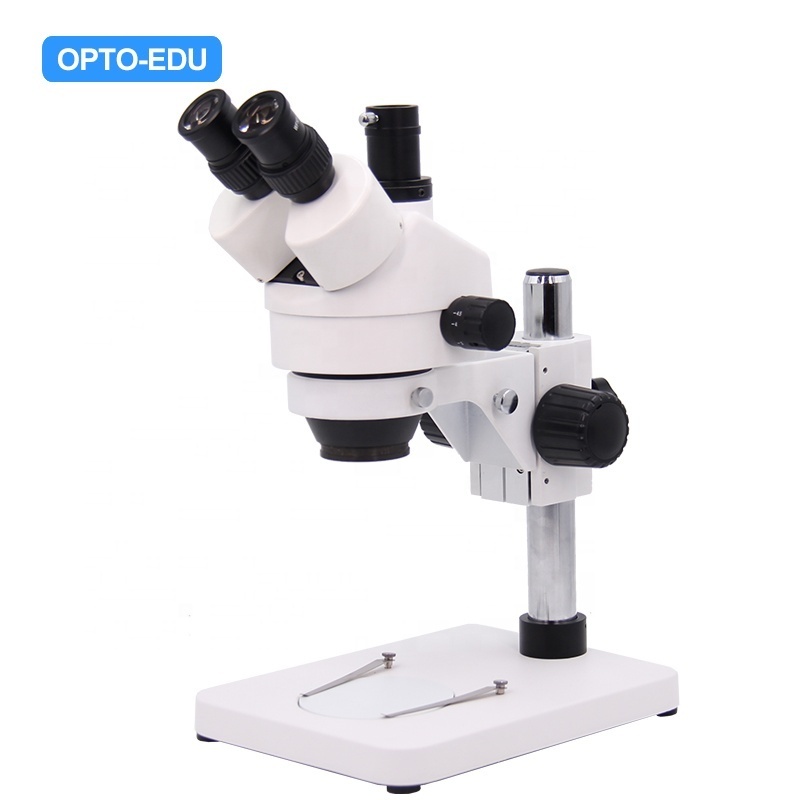

OPTO-EDU A23.1502-T1 Trinocular Head 45 Degree Inclined Optical Zoom Microscope For Teaching
A23.1502 is a type of stereo microscope whose price is a litter bit higher than others, because it is a professional stereo microscope in t eaching demonstration , b iological e ngineering , IT testing an d some other fields . With zoom len s 0.7-4.5x, you can get the c ontinuous zoom image you need. A23.1502 has h igh e yepoint with WF10x/20mm e yepiece , and the f ield of v iew is 1~95.2mm .
Zoom s tereo m icroscope is w idely used in teaching demonstration, bio-engineering, IT industry testing and other fields . A23.1502 has a high resolution and large field of view clarity , so it is also good at e lectronics industry and precision machinery industry parts assembly and testing, agricultural seed inspection and so on .
| A23.1502 Zoom Stereo Microscope Specification | B1 | T1 | |
| Head | Binocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm | o | |
| Trinocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm, With Eyepiece Adatper + 1x C-Mount | o | ||
| Eyepiece | WF10x/20mm, High Eyepoint | ||
| Zoom Lens | 0.7~4.5x | ||
| Zoom Ratio | 1:6.5 | ||
| Magnification | 7x-45x, Up to 3.5x-180x With Optional Eyepieces and Auxiliary Objectives | ||
| Working Distance | 100mm, With Auxiliary Objectives 30~177mm | ||
| Field of View | 1~95.2mm | ||
| Light Source | No Light Source | ||
| Stand | Pole Stand ST1, Height 248mm, Base 200*255*22mm | ||
| A23.1502 Zoom Stereo Microscope Optional Accessories | Cata. No. | ||
| Eyepiece | WF15x/15mm, High-eyepoint | A51.1520-15 | |
| WF20x/10mm, High-eyepoint | A51.1520-20 | ||
| Auxiliary Lens | 0.5X,W.D. 177mm | A52.1520-05 | |
| 0.75X,W.D. 120mm | A52.1520-75 | ||
| 2.0X,W.D. 30mm | A52.1520-20 | ||
| CCD Adapter | 0.5x | A55.1520-05 | |
