Explosion-proof Heater
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
LINHE
-
Voltage:
-
220v/380v/Customerized
-
Power:
-
1.1kw-75kw
-
Dimension(L*W*H):
-
Depends on capacity
-
Weight:
-
300
-
Name:
-
Stainless Steel Chemical Jacketed Reactor
-
Material:
-
Stainless Steel 304L/316L
-
Volume:
-
50-50000L
-
Heating Method:
-
electric,steam,Outer coil
-
Cooling Method:
-
tap water cooling
-
Mixing Speed:
-
0-63 r/min
-
Mixer Type:
-
paddle mixer/ Frame Mixer
-
Layer:
-
3 layers or jackets
-
Sealing Type:
-
Mechanical seals and packing seals
-
Application:
-
Chemical/Food/Beverage
Quick Details
-
Capacity:
-
50-50000L, customer
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LINHE
-
Voltage:
-
220v/380v/Customerized
-
Power:
-
1.1kw-75kw
-
Dimension(L*W*H):
-
Depends on capacity
-
Weight:
-
300
-
Name:
-
Stainless Steel Chemical Jacketed Reactor
-
Material:
-
Stainless Steel 304L/316L
-
Volume:
-
50-50000L
-
Heating Method:
-
electric,steam,Outer coil
-
Cooling Method:
-
tap water cooling
-
Mixing Speed:
-
0-63 r/min
-
Mixer Type:
-
paddle mixer/ Frame Mixer
-
Layer:
-
3 layers or jackets
-
Sealing Type:
-
Mechanical seals and packing seals
-
Application:
-
Chemical/Food/Beverage
Products Description

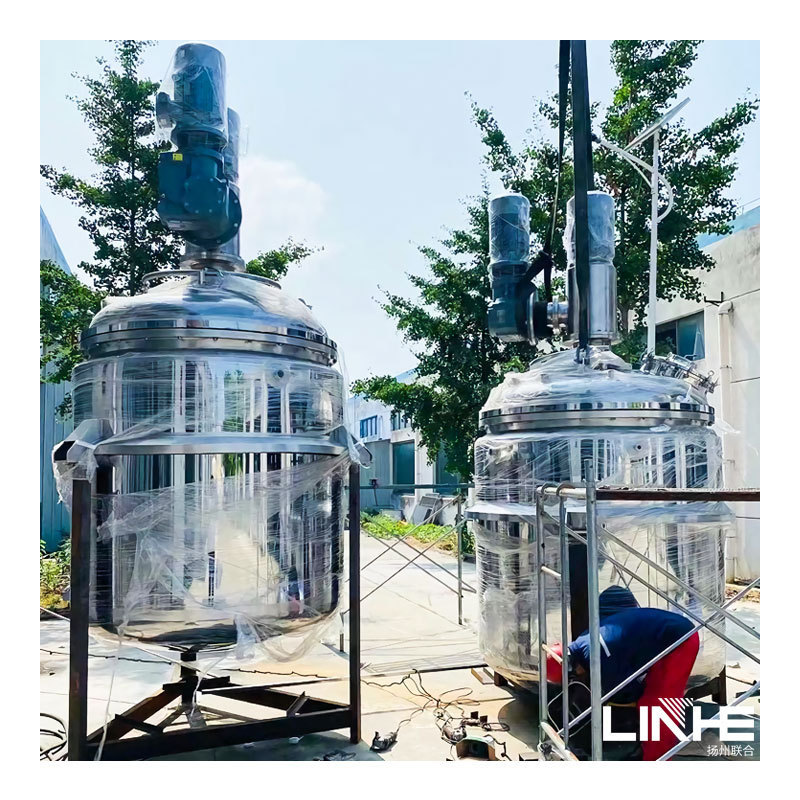

stainless steel Chemical reactor tank reactor
Application:
It is widely applied for producing construction materials , chemicals, foodstuffs , pigments and resinic products .
It is widely applied for producing construction materials , chemicals, foodstuffs , pigments and resinic products .
Performance Characteristics and Advantages:
1. rapid heating,
2. corrosion resistance,
3. high temperature resistance,
4. non environmental pollution,
5. automatic heating without boiler and simple & convenient operation.
Configuration:
1.Volume: 50L~50000L (series of specifications), can be customized as per customer requirement;
2.Components: autoclave body, cover, jacket, agitator, shaft seals,bearing and driving device;
3.Optional Reactor type: Electric heating reactor, Steam heating reactor, Heat conduction oil heating reactor ;
4.Optional Agitator type: Anchor type, Frame type, Paddle type, Impeller type, Vortex type, Propeller type, Turbine type, Push-in type or Bracket type;
5.Optional Structure type: Outer coil heating reactor, Inner coil heating reactor, Jacket heating reactor ;
6.Optional tank material: SS304, SS316L, Carbon steel;
7.Optional inner surface treatment: mirror polished, anti-corrosion painted;
8.Optional outer surface treatment: mirror polished, machinery polished or matt;
9.Optional Shaft Seal: Packing seal or Mechanical seal;
10.Optional feet form: three pyramidal form or tube type;
1. rapid heating,
2. corrosion resistance,
3. high temperature resistance,
4. non environmental pollution,
5. automatic heating without boiler and simple & convenient operation.
Configuration:
1.Volume: 50L~50000L (series of specifications), can be customized as per customer requirement;
2.Components: autoclave body, cover, jacket, agitator, shaft seals,bearing and driving device;
3.Optional Reactor type: Electric heating reactor, Steam heating reactor, Heat conduction oil heating reactor ;
4.Optional Agitator type: Anchor type, Frame type, Paddle type, Impeller type, Vortex type, Propeller type, Turbine type, Push-in type or Bracket type;
5.Optional Structure type: Outer coil heating reactor, Inner coil heating reactor, Jacket heating reactor ;
6.Optional tank material: SS304, SS316L, Carbon steel;
7.Optional inner surface treatment: mirror polished, anti-corrosion painted;
8.Optional outer surface treatment: mirror polished, machinery polished or matt;
9.Optional Shaft Seal: Packing seal or Mechanical seal;
10.Optional feet form: three pyramidal form or tube type;
|
A: Manhole
|
B: Material Inlet
|
C: Standby
|
D: Light
|
E: Distillation Mouth
|
|
F: Blackflow Mouth
|
G: Standby
|
H: Pressure Meter
|
I: Temperatre Measuring Mouth
|
J: Endoscopic Mouth
|
|
K: Overflow Mouth
|
L: Air Mouth
|
M: Waste Outlet
|
O: Discharge Outlet
|
P: Electric-heating Power
|
|
Structure
|
Vertical, ellipse top or flat top, support by legs or lifting lugs. Single wall, or with jacket, or with insulation.
|
|
|
|
|||
|
Material
|
Material adopts S31603, or S304
|
|
|
|
|||
|
Jacket Type
|
Full jacket, internal coil, external semi-coil, dimple jacket.
|
|
|
|
|||
|
Insulation
|
Adopts aluminum silicate or polyurethane, thickness 50 mm or 75 mm.
|
|
|
|
|||
|
Surface Finishing
|
Mechanical polishing, internal mirror polishing Ra 0.45; External matte, Ra 0.8
|
|
|
|
|||
|
Heating Method
|
Steam heating, electric heating, thermal oil/hot water heating
|
|
|
|
|||
|
Agitation System
|
Adopt top center-entry agitator or side-entry agitator.
Agitator type: frame, anchor, paddle, turbine, spiral, screw, magnetic stirring. Agitation speed: 10~120rpm, fixed speed or frequency speed. Motor power: 0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, 5.5kw, 7.5kw, etc. |
|
|
|
|||
|
Accessories
|
Manhole, CIP spraying ball, thermometer, piezometer, air filter, sight glass, light, counter flange.
|
|
|
|
|||
|
Standard
|
All according to GMP requirements and GB150.1~4-2011 Design, Fabrication, Inspection and Acceptance.
|
|
|
|
|||
|
ODM/ODM
|
Can be customized according to customers requirement and product process.
|
|
|
|
|||
Technical Parameters:
|
Type
|
LH-50L
|
LH-100L
|
LH-200L
|
LH-300L
|
LH-500L
|
LH-1000L
|
LH-2000L
|
LH-3000L
|
LH-4000L
|
|
Cylinder Size(mm)
|
450*500
|
450*500
|
600*700
|
750*750
|
900*800
|
1200*1000
|
1400*1500
|
1600*1500
|
1700*1800
|
|
Actual Capacity (L)
|
61
|
150
|
253
|
396
|
699
|
1393
|
3000
|
4066
|
5400
|
|
Jacket Capacity(L)
|
65
|
120
|
200
|
250
|
290
|
560
|
750
|
1015
|
1226
|
|
Heating Area (m2)
|
0.78
|
1.36
|
1.9
|
2.41
|
2.7
|
4.5
|
7.0
|
9.0
|
11.0
|
|
Motor Power (KW)
|
0.55
|
1.1
|
1.5
|
3.0
|
2.2
|
4.0
|
5.5
|
7.5
|
11.0
|
|
Rotating Speed (r/min)
|
85
|
85
|
85
|
85
|
85
|
85
|
85
|
63
|
63
|
|
Discharging Valve
|
DN25
|
DN25
|
DN40
|
DN40
|
DN50
|
DN50
|
DN65
|
DN65
|
DN80
|
