Quick Details
-
Filling Accuracy:
-
95%
-
Place of Origin:
-
China
-
Weight:
-
120 KG
-
Product name:
-
lpg gas cylinder filling machine
-
Function:
-
lpg gas cylinder Filing
-
After-sales Service Provided:
-
Online Support
-
Bottle type:
-
lpg gas cylinders
-
Production capacity:
-
1800-2500 Bottles
-
Stainless steel:
-
SUS304 or 316L
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, Other, 12000BPH
-
Packaging Material:
-
Metal
-
Filling Material:
-
Other
-
Filling Accuracy:
-
95%
-
Place of Origin:
-
China
-
Weight:
-
120 KG
-
Product name:
-
lpg gas cylinder filling machine
-
Function:
-
lpg gas cylinder Filing
-
After-sales Service Provided:
-
Online Support
-
Bottle type:
-
lpg gas cylinders
-
Production capacity:
-
1800-2500 Bottles
-
Stainless steel:
-
SUS304 or 316L
Product Description
LPG Skid Mounted Station
The LPG skid mounted station is an integrated equipment integrating LPG storage tanks, pumps, motors, pipelines, valves and filling equipment. The skid mounted station can fill LPG into steel cylinders or LPG tankers just like a large LPG station.
Main performance:
1. No need for on-site installation, can be used at any time;
2. Strong applicability and easy to move;
3. Complete safety devices and easy operation.
|
LPG Gas Tank Type
|
|
II
|
|
Capacity of LPG Tank
|
cbm
|
10
|
|
Orientation of LPG Tank
|
|
Horizontal Single Layer LPG TANK
|
|
Working Pressure
|
MPa
|
1.63
|
|
Design Pressure
|
MPa
|
1.77
|
|
Max.allowance working pressure
|
MPa
|
1.82
|
|
Working Temperature
|
℃
|
-19~50
|
|
Design Temperature
|
℃
|
-20/54
|
|
Density of Medium
|
kg/m3
|
560
|
|
Main Material
|
|
Q345R
|
|
Filling Coefficient
|
|
0.9
|
|
Setting Pressure of Safety Valve
|
MPa
|
1.82
|
|
Heat Treatment
|
|
Post-weld heat treatment for LPG Tank
|
|
Hydrostatic test pressure
|
MPa
|
2.28
|
|
Air tightness test pressure
|
MPa
|
1.77
|

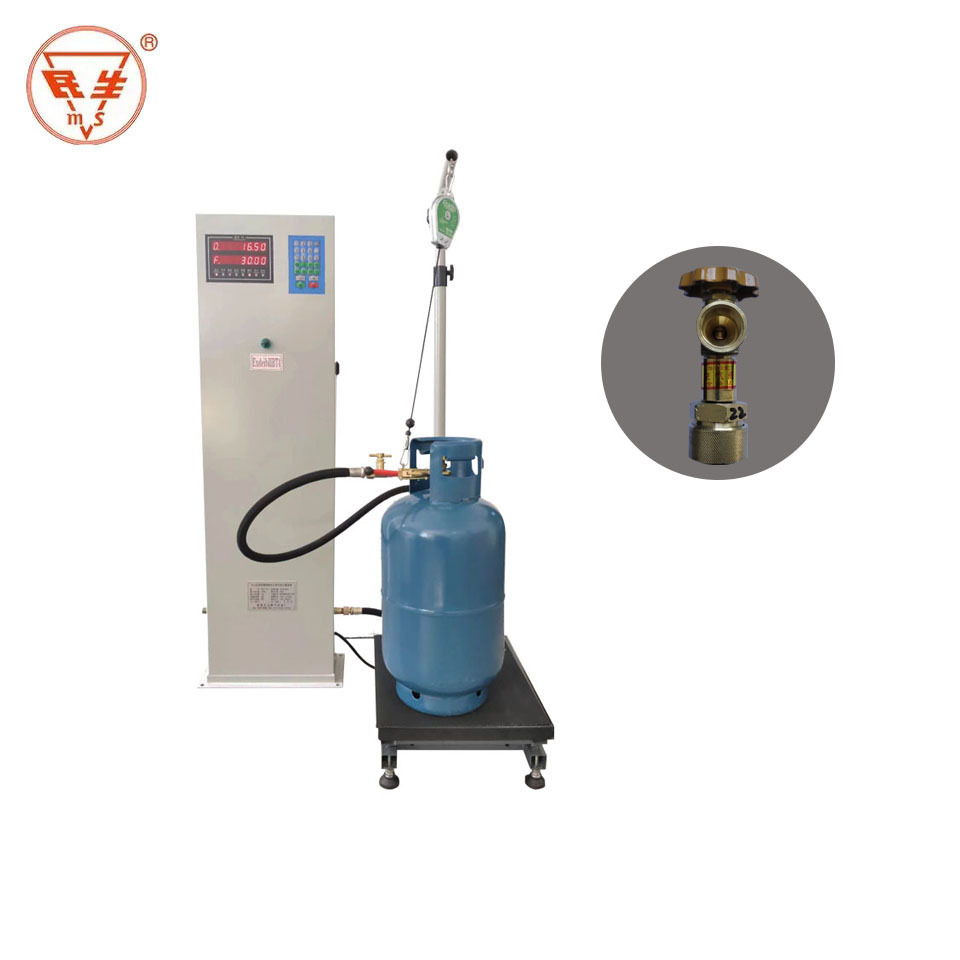

LPG Gas Cylinder Filling Machine
.
LPG electronic filling scale is an ideal filling equipment for LPG filling station to replace traditional mechanical scales or replace ordinary electronic filling scales. The core control instrument is designed and developed with international advanced electronic components, and the important components such as solenoid valve and sensor are selected from domestic and foreign high-quality supporting manufacturers. It has the characteristics of advanced technology, convenient operation, stable quality and accurate filling. The successful development of this series of equipment has brought great convenience to the operation and management of liquefied gas stations and improved the management level of the gas filling industry.
|
Applicable power supply
|
AC220V 50HZ
|
|
Rated power
|
40W
|
|
Max weighing
|
150kg
|
|
Graduation value
|
50g
|
|
Accuracy class
|
X(0.5)
|
|
Operating temperature
|
-40℃~+-40℃
|
|
Working humidity
|
10%~90%
|
|
Work pressure
|
≤1.6Mpa
|
|
Weighing table size
|
520x420
|
