Quick Details
-
Filling Accuracy:
-
2mm
-
Voltage:
-
380V
-
Place of Origin:
-
JiangSu
-
Brand Name:
-
Eqs
-
Dimension(L*W*H):
-
1780*1280*2100mm
-
Weight:
-
1600 KG
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Product Name:
-
Beer Filling Machine
-
Material:
-
SUS304
-
Bottle Volume:
-
500ml
-
Packaging:
-
Film and Wooden Case
-
Certification:
-
CE ISO
-
Bottle type:
-
Glass Botte
-
Filling nozzles:
-
6 Nozzles
-
Marketing Type:
-
HOT SALE
-
Function:
-
Washing Filling Capping
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 6000BPH, 2000BPH, 1000BPH, 200-500BPH
-
Packaging Material:
-
Plastic, Paper
-
Filling Material:
-
Beer
-
Filling Accuracy:
-
2mm
-
Voltage:
-
380V
-
Place of Origin:
-
JiangSu
-
Brand Name:
-
Eqs
-
Dimension(L*W*H):
-
1780*1280*2100mm
-
Weight:
-
1600 KG
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Product Name:
-
Beer Filling Machine
-
Material:
-
SUS304
-
Bottle Volume:
-
500ml
-
Packaging:
-
Film and Wooden Case
-
Certification:
-
CE ISO
-
Bottle type:
-
Glass Botte
-
Filling nozzles:
-
6 Nozzles
-
Marketing Type:
-
HOT SALE
-
Function:
-
Washing Filling Capping
Product Overview
|
Model
|
BGF8-6-1
|
BGF14-12-4
|
BGF18-18-6
|
BGF24-24-8
|
BGF32-32-10
|
BGF40-40-12
|
|
Washing head
|
8
|
14
|
18
|
24
|
32
|
40
|
|
Filling head
|
6
|
12
|
18
|
24
|
32
|
40
|
|
Capping head
|
1
|
4
|
6
|
8
|
10
|
12
|
|
Capacity
|
200-500BPH
one time vacuum
|
1000BPH one time vacuum
|
1500-2000BPH
one time vacuum；1000-1200BPH twice vacuum
|
4000BPH one time vacuum；
3000BPH twice vacuum |
6000BPH one time vacuum；
5000BPH twice vacuum |
8000BPH one time vacuum；
7000BPH twice vacuum |
|
Aseptic air consumption
|
0.2m3/min (0.4-0.6Mpa)
|
0.3m3/min (0.4-0.6Mpa)
|
0.3m3/min (0.4-0.6Mpa)
|
0.4m3/min (0.4-0.6Mpa)
|
0.4m3/min (0.4-0.6Mpa)
|
0.4m3/min (0.4-0.6Mpa)
|
|
CO2 consumption
|
15g/100L
|
18g/100L
|
18g/100L
|
18g/100L
|
18g/100L
|
18g/100L
|
|
Dimensions
|
1780×1280×2100 mm
|
2000×1740×2750mm
|
2360×1880×2750mm
|
2760×2280×2750mm
|
4050×2385×2850mm
|
4030×3100×2850mm
|
|
Weight
|
1600Kg
|
2500 Kg
|
3500 kg
|
5000 Kg
|
7000 KG
|
8000 KG
|

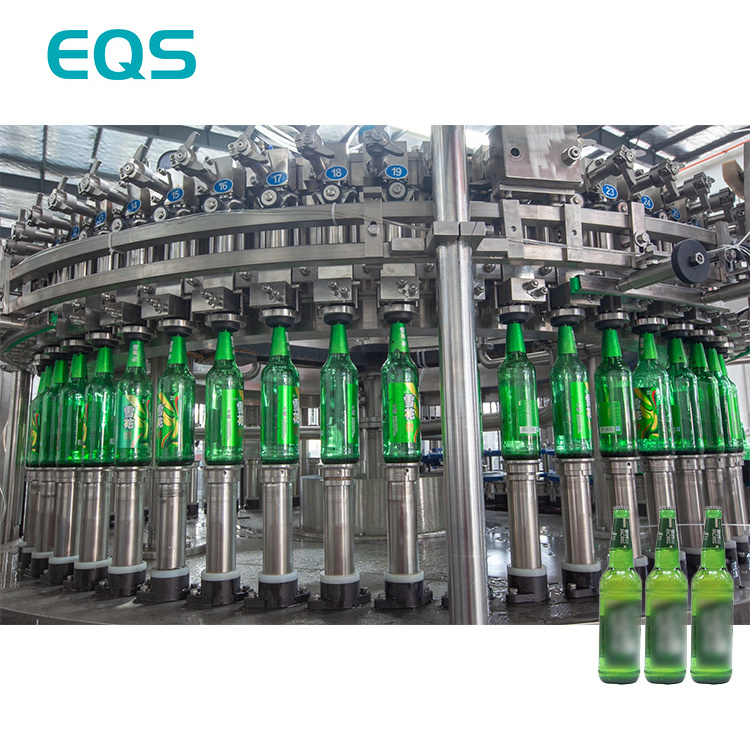

Small Scale High Quality Counter Pressure Glass Bottle Beer Filler
This beer bottling machine is the introduction of German technology, combined with the characteristics
of beer production industry, designed to develop small scale beer filling machine. The machine has excellent mechanical operation reliability, improved rinsing, filling, capping, disinfection sterilization and other functions.
We are the professional automatic 3 in 1 beer bottling machine beer Filling Machine supplier in China.
of beer production industry, designed to develop small scale beer filling machine. The machine has excellent mechanical operation reliability, improved rinsing, filling, capping, disinfection sterilization and other functions.
We are the professional automatic 3 in 1 beer bottling machine beer Filling Machine supplier in China.
Product Description
1.
This b
eer bottling machine
can realize automatic washing and filling and capping in united machine. It's used for glass bottle and crown cap.
2. The available bottle volume can be 200ml, 330ml, 500ml, 750ml,...
2. The available bottle volume can be 200ml, 330ml, 500ml, 750ml,...
3. The available bottle cap type is crown cap.
4. Its capacity is 300-500BPH for 500ml/300ml one time vacuum.
Rinsing Part of Beer Bottling Machine
The washing pipe is plastic material, we can customied into stainless steel washing pipe according to client's actual request.
Filling Part of Beer Bottling Machine
The filling method is the vacuumed type, it can decrease the oxygen content.
Capping Part of Beer Bottling Machine
It's for crown cap, can be customized the capping part according to client's cap samples.
More Production Capacity for Choice
Detailed Technical Data of
Beer Bottling Machine
Learn about related products by clicking
Why Choose Us
*
High level humanized customization service to customize the most suitable products and services for you individually according to your specific needs, budget and actual situation.
* Through more than ten years of experience in mechanical production and investigation of customer feedback, we constantly improve products, improve product details and improve machine quality in the spirit of ingenuity. Each unique design is designed to ensure the best user experience for customers.
* Absolute real material and unique design greatly increase the service life of the machine, ensure the stable output of the
machine and long-term efficient working ability.
* Absolute real material and unique design greatly increase the service life of the machine, ensure the stable output of the
machine and long-term efficient working ability.
Value Added
1). Automatic Frequency Step less Speed Adjustment.
2). Complete Set of CIP Clean Connection Ports.
3). Foaming Device.
4). Security Function, machine stops when open the window (Option).
