The XCMG HB50V concrete pump truck is equipped with more efficient skirt valve and S valve pump technology, more stable reversing buffer technology, more reliable full hydraulic reversing technology.
It complies with China VI emission standard, featuring with powerful output, large torque, high efficiency, energy conservation
and strong off-road performance.
Advantages and highlights:
1.Ultimately Safe Boom.
2. Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
6.The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
- Product Details
- {{item.text}}
Quick Details
-
Productivity:
-
170M3/H
-
Place of Origin:
-
Jiangsu, China
-
Year:
-
2017
-
Brand Name:
-
XCMG
-
Weight:
-
35000 kg
-
Dimension(L*W*H):
-
12700*2540*4000mm
-
After-sales Service Provided:
-
Overseas service center available
-
Concrete pumping pressure:
-
8Mpa
-
After Warranty Service:
-
Online support
-
Certification:
-
CE/ISO9001
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
49.1m
-
Max. horizontal conveying distance:
-
34.4m
-
Productivity:
-
170M3/H
-
Place of Origin:
-
Jiangsu, China
-
Year:
-
2017
-
Brand Name:
-
XCMG
-
Weight:
-
35000 kg
-
Dimension(L*W*H):
-
12700*2540*4000mm
-
After-sales Service Provided:
-
Overseas service center available
-
Concrete pumping pressure:
-
8Mpa
-
After Warranty Service:
-
Online support
-
Certification:
-
CE/ISO9001
Products Description

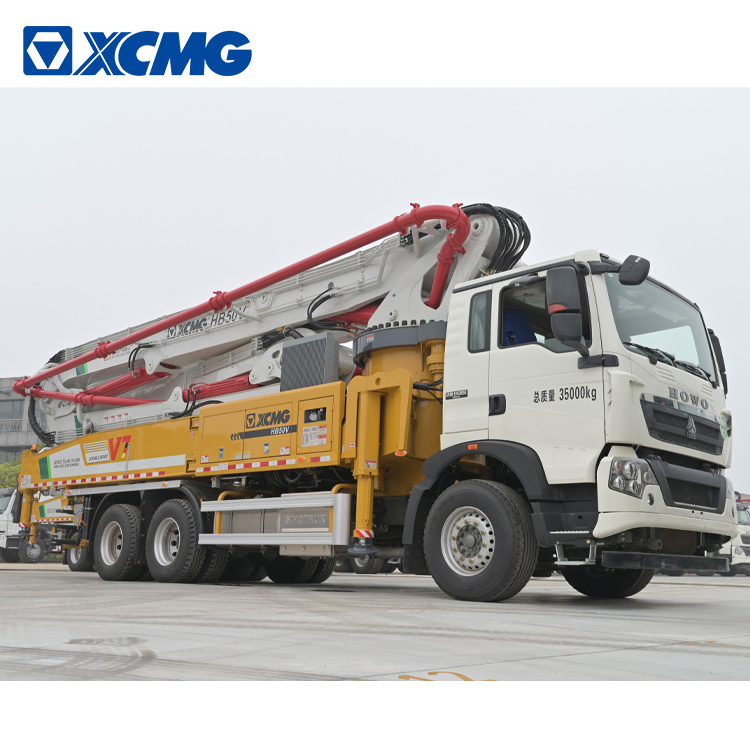

XCMG Manufacturer Used HB50V Chinese Truck Mounted Concrete Pump with Good Price
Specification
|
CATEGORY
|
ITEM
|
UNIT
|
HB50V
|
|
Overall
|
Outlinedimension
|
mm
|
12700×2540×4000
|
|
|
Overall weight
|
kg
|
35000
|
|
|
Brand
|
/
|
Sinotruck
|
|
Chassis
|
Mondel
|
/
|
ZZ5356V524MF1
|
|
|
Wheelbase
|
mm
|
4800+1400
|
|
|
Max.power
|
kW
|
324
|
|
Engine
|
Emission
|
/
|
China VI
|
|
|
Theoretical
|
m³/h
|
170
|
|
Pumping system
|
Concrete pumping pressure
|
Mpa
|
8
|
|
|
Theoretical pumping times
|
Time/min
|
23～26
|
|
|
Delivery cylinder diameter × stroke
|
mm
|
φ260×2000
|
|
Placing boom
|
Reach height
|
m
|
49.1
|
|
|
Reach depth
|
m
|
34.4
|
|
|
Slewing radius
|
m
|
44.2
|
|
|
Slewing angle
|
°
|
±270
|
|
Others
|
Transfer tuble
|
/
|
Rock valve/S valve
|
