Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Abena
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
5500*1300*900mm
-
Weight:
-
3000 kg
-
Feeding width:
-
Other
-
Marketing Type:
-
new product 2022
-
Product name:
-
roof sheet dura fence metal machine
-
Raw material:
-
Steel Coil GI PPGI
-
Cutting blade material:
-
Cr12 Mould Steel
-
Shaft material:
-
High Grade No.45 Steel
-
Control system:
-
PLC(detla) System
-
Certification:
-
CE ISO
-
Main frame:
-
Steel Plate Welded
-
Roller stations:
-
14Stations
-
Decoiler:
-
5T Manual Decoiler
-
Roller material:
-
High Grade 45# Steel
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
20M/MIN
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Abena
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
5500*1300*900mm
-
Weight:
-
3000 kg
-
Feeding width:
-
Other
-
Marketing Type:
-
new product 2022
-
Product name:
-
roof sheet dura fence metal machine
-
Raw material:
-
Steel Coil GI PPGI
-
Cutting blade material:
-
Cr12 Mould Steel
-
Shaft material:
-
High Grade No.45 Steel
-
Control system:
-
PLC(detla) System
-
Certification:
-
CE ISO
-
Main frame:
-
Steel Plate Welded
-
Roller stations:
-
14Stations
-
Decoiler:
-
5T Manual Decoiler
-
Roller material:
-
High Grade 45# Steel
Product Overview

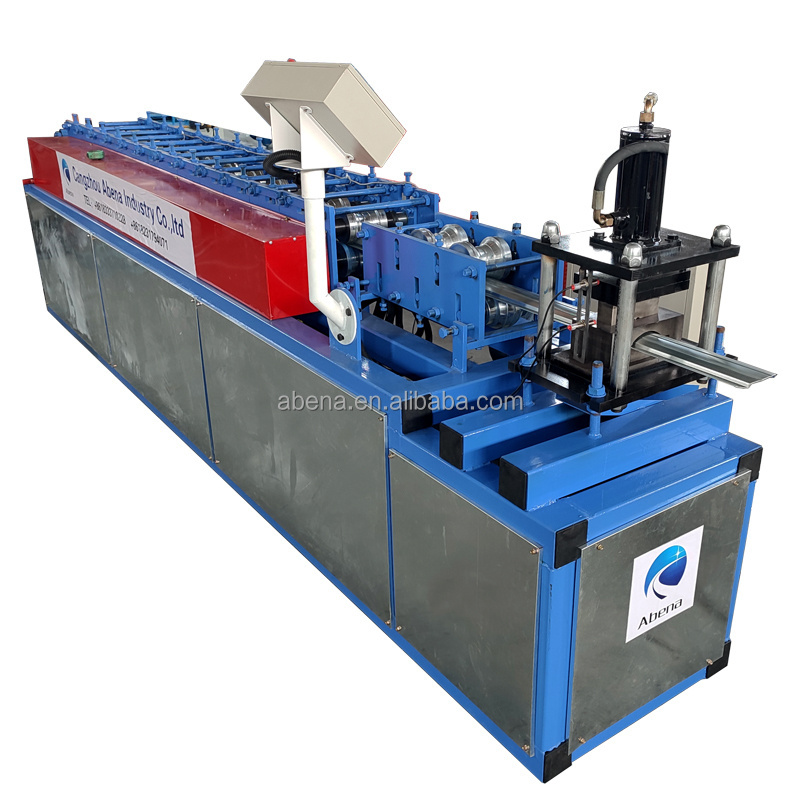

Roof sheet dura fence metal machine
Our company are professional product the
Roof sheet dura fence metal machine
manufacture , We manufacture and supply variants of cold roll forming machines in China, such as trapezoidal roofing sheet roll forming machine ,C Z purlin roll forming machine,light steel keel machine , floor deck roll forming machine, highway guardrail roll forming machine ridge cap roll forming machine ,cutting and bending machine and so on , our machine export all over the world like india、 south africa 、pakistan 、Brazil 、omen and so no , the cold roll forming machine raw material thickness 0.3mm-3mm, we also can make other metal sheet roll forming machine as your requirement ,meet your need ,our company aim :reputation first, customer first
PRODUCT SPECIFICATIONS
|
No
|
TYPE
|
Data
|
SPECIFICATION
|
|
||
|
1
|
Raw material
|
material
|
PPGI GI
|
|
||
|
2
|
Bucket capacity
|
Feeding width
|
as drawing
|
|
||
|
3
|
Operating weight
|
thickness
|
0.3-0.8mm
|
|
||
|
2
|
Decoiler
|
operate
|
manual
|
|
||
|
5
|
Max. breakout force
|
weight capacity
|
5ton
|
|
||
|
3
|
Roll forming machine
|
roller station
|
14
|
|
||
|
|
|
Diameter of shaft
|
55mm
|
|
||
|
|
|
Roller material
|
45# with 0.05mm chrome
|
|
||
|
|
|
Frame
|
steel sheet welding
|
|
||
|
|
|
Frame thickness
|
18mm
|
|
||
|
|
|
Cutting Material
|
Cr 12
|
|
||
|
|
|
Operation
|
automatic cutting
|
|
||
|
|
|
Working speed
|
15-20m/minute
|
|
||
|
|
Power
|
Driving way
|
chain
|
|
||
|
|
|
Main motor
|
4kw
|
|
||
|
|
|
Voltage
|
380v 50hz
|
|
||
|
|
|
Electric box
|
PLC control system, inventer
|
|
||
|
|
|
PLC brand
|
delta
|
|
||
|
|
|
Inverter brand
|
delta
|
|
||
|
|
|
Language
|
chinese and english
|
|
||
Feature of the metal dura fence machine
The components of the
metal dura fence machine
include: decoiler, roll forming machine body, hydraulic cutting, plc control system, main motor, pump station, receving table.
Equipment features: metal dura fence machine adopts advanced automatic control software, metal dura fence machine realizes production information management, and the whole machine automatic control system adopts a highly integrated network, which makes the automation system more superior.
Equipment features: metal dura fence machine adopts advanced automatic control software, metal dura fence machine realizes production information management, and the whole machine automatic control system adopts a highly integrated network, which makes the automation system more superior.
Detail image
If you need machine detail picture and video ,please contact anthony with number below
Decoiler
Loading capacity: 3tons
Hydraulic cutting
Controlled by oil pump
Automatic cutting as target products length Blade material: Cr12, quenching treatment
Automatic cutting as target products length Blade material: Cr12, quenching treatment
Roll forming body
Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
computer control system
Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
Pump station
Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work
Hydraulic oil: 46#
Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa
Hydraulic oil: 46#
Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa
