The equipment adopts Skop compressor and Taikang compressor imported from Europe, which are adjusted by technology, durable in quality and compact in size. The operating system is equipped with vacuum pump protection mechanism. The parts that can contact materials are made of 304 stainless steel and food-grade silica gel, equipped with low-noise vacuum pump, about 60 decibels.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
DZJX
-
Voltage:
-
220V/380V/customizable
-
Power:
-
0.95-180kw
-
Dimension(L*W*H):
-
100*100*100
-
Weight (KG):
-
48
-
Evaporation Capacity(kg/h):
-
1-4800
Quick Details
-
Type:
-
Freeze Drying Equipment
-
Capacity (kg/batch):
-
1-3200kg
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DZJX
-
Voltage:
-
220V/380V/customizable
-
Power:
-
0.95-180kw
-
Dimension(L*W*H):
-
100*100*100
-
Weight (KG):
-
48
-
Evaporation Capacity(kg/h):
-
1-4800
Product Description

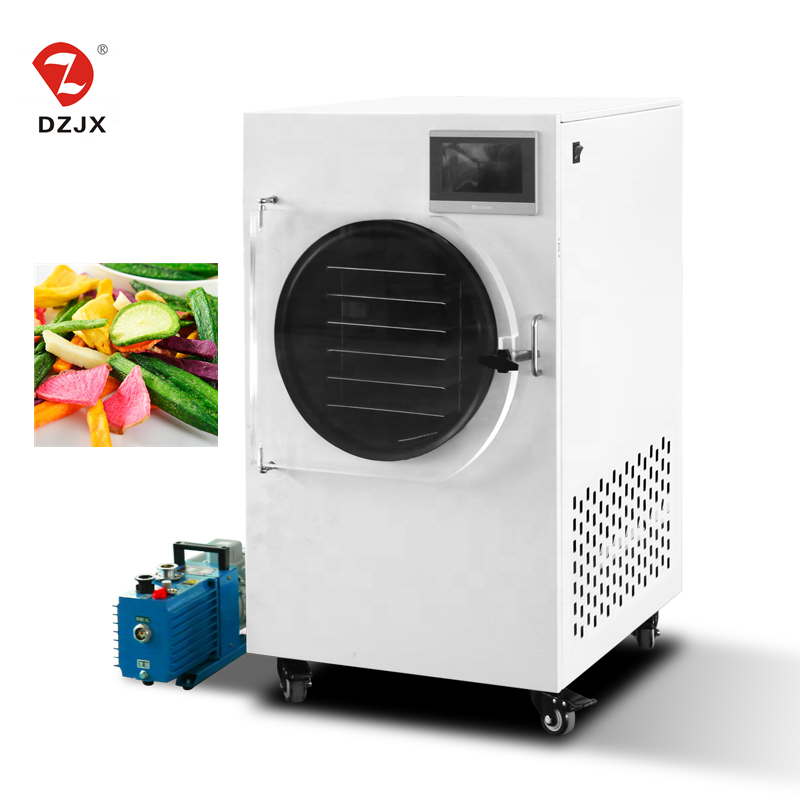

DZJX OEM 1-8kg Vacuum Fruit Freeze Drying Dried Machines Mini Vegetables Lyophilizer Food Freezer Dryer for Sale
Vacuum Freeze Drying Machine is widely used in food, fruit, vegetable, fish, sea cucumber, shrimp, meat drying industry, chemical and biological industry etc. The dried product dried by freeze dryer is with good taste, beautiful color and good shape.
Product Details
Product Show
Vacuum Freeze Drying Dried Machines Fruit Food Mini Vegetables Freezer Dryer
Application
Vacuum Freeze Drying Dried Machines Fruit Food Mini Vegetables Freezer Dryer
The working principle of This freeze vacuum dryer is that the machine remove the moisture in the pre-frozen material under the high vacuum state, it makes the moisture steamed under Ice state,don't have to melt into water.
It means, yes, you are correct,this machine will pre-frozen the material and then create high vacuum state to heat the material to dry with low temperature. which will best maintain the physical properties, and can keep long after drying,compared with other drying ways.
Technical Parameters
Vacuum Freeze Drying Dried Machines Fruit Food Mini Vegetables Freezer Dryer
|
Model
|
DZFD01
|
DZFD04
|
DZFD06
|
|
Lyophilizing Acreage
|
0.1㎡
|
0.4㎡
|
0.6㎡
|
|
Cold trap Temperature
|
-40℃
|
<-50℃
|
<-50℃
|
|
Ultimate Vacuum
|
15 Pa
|
10 Pa
|
10 Pa
|
|
Material Handling Capacity
|
1~2 kg/Wholesale
|
4~6 kg/Wholesale
|
6~8 kg/Wholesale
|
|
Shelf Spacing
|
45 mm
|
45 mm
|
50 mm
|
|
Power Supply
|
220V;50HZ
|
220V;50HZ
|
220V;50HZ
|
|
Power
|
750W
|
1200 W
|
2300 W
|
|
Weight
|
50 kg
|
90 kg
|
165 kg
|
|
Tray size
|
140*278*20 mm；3 floor
|
205*370*20 mm；5 floor
|
230*510*20 mm；5 floor
|
|
Dimension
|
400*550*700mm
|
588*470*760 mm
|
620*694*1100 mm
|
|
Vacuum pump protection
|
/
|
YES
|
YES
|
|
Pressure protection
|
/
|
YES
|
YES
|
Vacuum Freeze Drying Dried Machines Fruit Food Vegetables Freezer Dryer
We produce a variety of models output of freeze-drying machines, support customization. Production from 1-5000 kg can be customized for you.
