Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
weihua crane
-
Product name:
-
Winch
-
Usage:
-
Lifting Materials
-
Feature:
-
High Efficiency
-
Control system:
-
Schneider
-
Origin:
-
100% China
-
Warranty time:
-
One Years
-
Applicaton:
-
Construction Engineering
-
Function:
-
Handing Goods Easily
-
Color:
-
Customer's Request
Quick Details
-
Power:
-
1400W
-
Application:
-
CRANES
-
Voltage:
-
120V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
weihua crane
-
Product name:
-
Winch
-
Usage:
-
Lifting Materials
-
Feature:
-
High Efficiency
-
Control system:
-
Schneider
-
Origin:
-
100% China
-
Warranty time:
-
One Years
-
Applicaton:
-
Construction Engineering
-
Function:
-
Handing Goods Easily
-
Color:
-
Customer's Request
Products Description

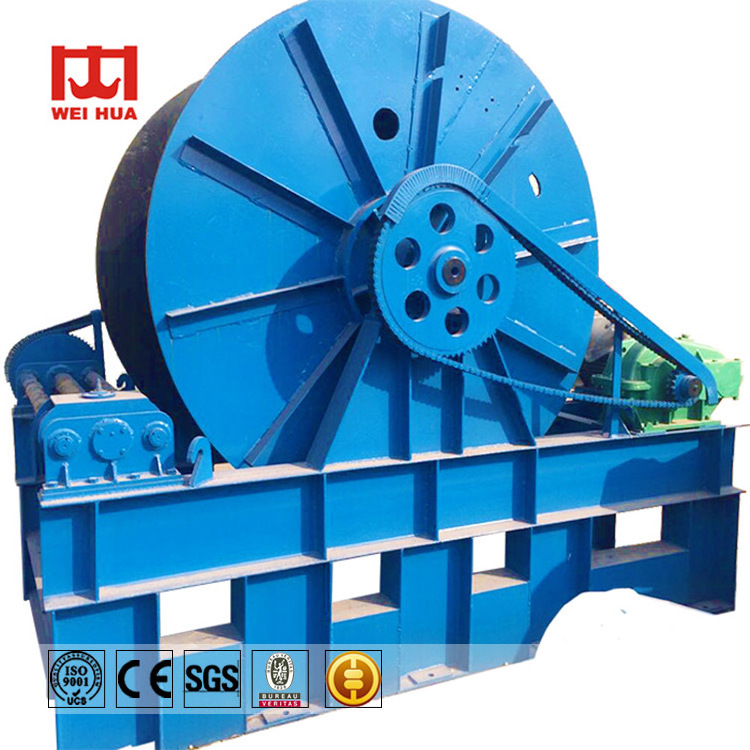

Winch
A electric winch is a small and light lifting device that uses a drum to wind a steel rope or a chain to lift or pull a heavy object. It is also called a winch. The hoist can lift the weight vertically, horizontally or inclinedly.
Now mainly electric winch. It can be used alone or as a component in machinery such as lifting, road construction and mine hoisting.
Now mainly electric winch. It can be used alone or as a component in machinery such as lifting, road construction and mine hoisting.
It is widely used due to its simple operation, large amount of rope winding, and convenient displacement. Mainly used in construction, water conservancy engineering, forestry, mining, wharf, etc. materials lifting or flat towing.
A Electric Winch Features:
1. High versatility, compact structure and small size.
2. Light weight, heavy lifting, easy to use and transfer.
3. As hoisting equipment, it is used for mine hoisting, well drilling and hanging (lifting) well drilling equipment, that is, lifting ore, waste (gangue) rock, lifting personnel, lowering materials, tools and equipment, etc. along the wellbore
4. As transportation equipment, it is used for underground transportation of ore (mining cart), rake ore (slag) in the stope, or filling and removing uprights.
2. Light weight, heavy lifting, easy to use and transfer.
3. As hoisting equipment, it is used for mine hoisting, well drilling and hanging (lifting) well drilling equipment, that is, lifting ore, waste (gangue) rock, lifting personnel, lowering materials, tools and equipment, etc. along the wellbore
4. As transportation equipment, it is used for underground transportation of ore (mining cart), rake ore (slag) in the stope, or filling and removing uprights.
|
Basic Parameters
|
Rated Load
|
Average Speed of Rope
|
Capacity of Rope
|
Rope Diameter
|
Hydraulic Brake
|
Motor Power
|
Overall Dimension
|
Total Weight
|
|
Model
|
KN
|
m/min
|
m
|
mm
|
Type
|
KW
|
mm
|
kg
|
|
JM0.5
|
5
|
16
|
90
|
7.7
|
TJ2-100
|
2.2
|
820X670X330
|
120
|
|
JM1
|
10
|
16
|
120
|
9.3
|
TJ2-150
|
5.5
|
830X670X330
|
220
|
|
JM1.5
|
15
|
16
|
160
|
11
|
TJ2-200
|
7.5
|
1150X900X510
|
310
|
|
JM2
|
20
|
16
|
150
|
12.5
|
TJ2-200/YWZ-200/25
|
7.5
|
1190X925X550
|
350
|
|
JM3
|
30
|
16
|
200
|
12.5
|
TJ2-200/YWZ-200/25
|
11
|
1250X1037X560
|
450
|
|
JM5
|
50
|
9
|
200
|
19.5
|
YWZ-300/45
|
11
|
1568X1300X765
|
1000
|
|
JM5
|
50
|
9
|
200
|
19.5
|
YWZ-300/45
|
15
|
1568X1350X765
|
1100
|
|
JM8
|
80
|
9
|
300
|
26
|
YWZ-300/45
|
15
|
1950X1570X1040
|
1800
|
|
JM8
|
80
|
15
|
300
|
26
|
YWZ-300/45
|
22
|
1950X1630X1040
|
1900
|
|
JM10
|
100
|
9
|
300
|
30
|
YWZ-300/45
|
22
|
2100X1700X1050
|
2200
|
|
JM10
|
100
|
15
|
300
|
30
|
YWZ-300/45
|
30
|
2100X1700X1050
|
2400
|
|
JM12
|
120
|
9
|
300
|
32
|
YWZ-300/45
|
22
|
2200X1800X1006
|
2500
|
|
JM16
|
160
|
9
|
400
|
36.5
|
YWZ-400/90
|
30
|
2330X2250X1320
|
4000
|
|
JM20
|
200
|
9
|
450
|
39
|
YWZ-400/90
|
45
|
2450X2315X1400
|
4500
|
|
JM30
|
300
|
9
|
450
|
47.5
|
YWZ-400/90
|
55
|
2600X2700X1740
|
7800
|
