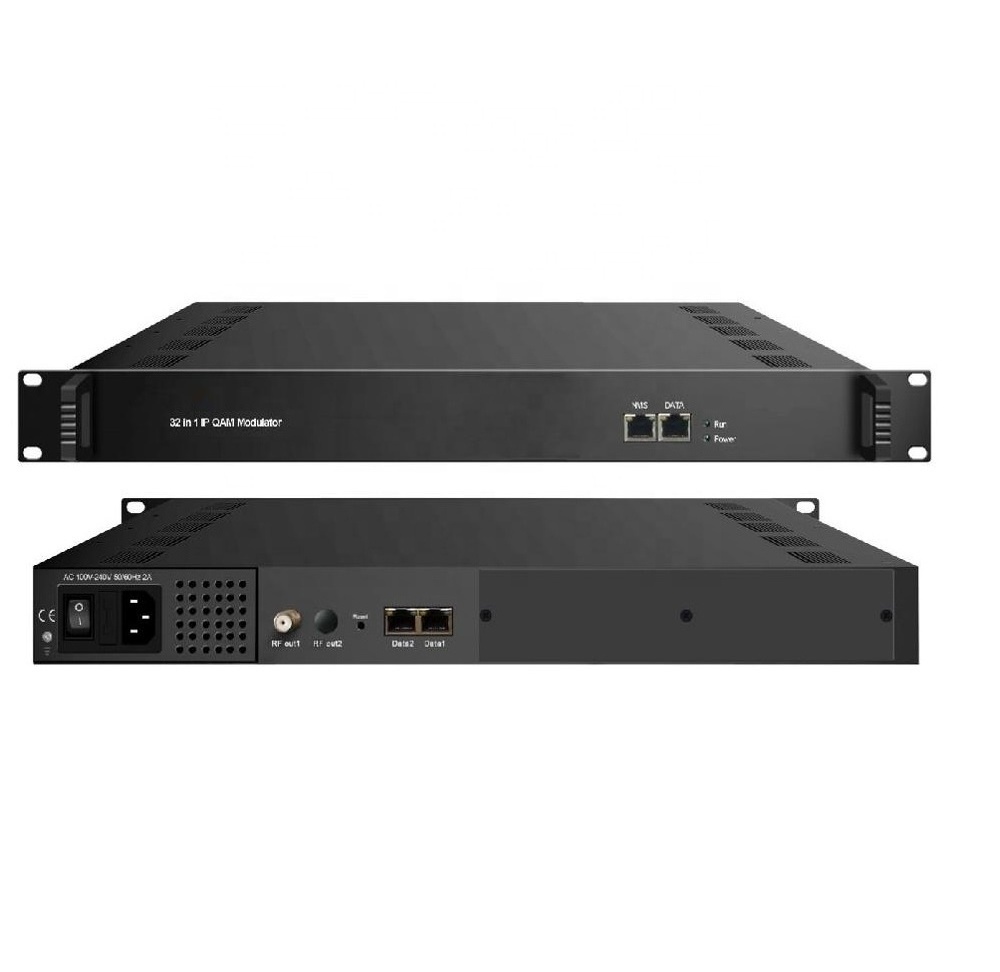

Quick Details
-
Input:
-
ip INPUT
-
Output Attenuation:
-
-30dBm~-10dBm (per QAM carrier), 0.1dB Stepping
-
MER:
-
≥40db
-
ACLR (Adjacent channel leakage ratio):
-
-55dBC
-
Dimension(W*D*H):
-
482mm*300mm*44.5mm
-
Weight:
-
3.7kg
-
Maximum simulcrypt CA:
-
4
-
Standard:
-
EN300 429/ITU-T J.83A/B/C
-
Symbol Rate:
-
5.0Msps~9.0Msps, 1ksps stepping
-
Constellation:
-
16/32/64/128/256QAM
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
yatai
-
Model Number:
-
3316
-
Input:
-
ip INPUT
-
Output Attenuation:
-
-30dBm~-10dBm (per QAM carrier), 0.1dB Stepping
-
MER:
-
≥40db
-
ACLR (Adjacent channel leakage ratio):
-
-55dBC
-
Dimension(W*D*H):
-
482mm*300mm*44.5mm
-
Weight:
-
3.7kg
-
Maximum simulcrypt CA:
-
4
-
Standard:
-
EN300 429/ITU-T J.83A/B/C
-
Symbol Rate:
-
5.0Msps~9.0Msps, 1ksps stepping
-
Constellation:
-
16/32/64/128/256QAM
1. 3 Inner Structure
1. 4 Carrier Setting Illustration
1.5 Specifications
|
Input |
In put |
M ax 512 IP input through 3 ( front-panel Data port , Data 1 and Data 2) 100/1000M Ethernet Port (SFP interface optional). Each Data1 or Data 2 port can input max 512 IP, while front-panel Data port can input max 128 IP |
||
|
Transport Protocol |
TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
|||
|
Transmission Rate |
Max 840Mbps for each GE input |
|||
|
Mux |
Input Channel |
512 |
||
|
Output Channel |
16 |
|||
|
Max PIDs |
180 per channel |
|||
|
Functions |
PID remapping(auto/manually optional) |
|||
|
PCR accurate adjusting |
||||
|
PSI/SI table automatically generating |
||||
|
Scrambling Parameters |
Max simulscrypt CA |
4 |
||
|
Scramble Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
|||
|
Connection |
Local/remote connection |
|||
|
Modulation Parameters |
DVB-C Modulator Sectioon |
J.83A |
Constellation : 16/32/64/128/256QAM |
|
|
Bandwidth :8M |
||||
|
J.83B |
Constellation : 64QAM/ 256QAM |
|||
|
Bandwidth :6M |
||||
|
QAM Channel |
16 non-adjacent carrier |
|||
|
Modulation Standard |
EN300 429/ITU-T J.83A/B (DVB-C) |
|||
|
Symbol Rate |
5.0~7.0Msps , 1ksps stepping |
|||
|
FEC |
RS (204 , 188) |
|||
|
RF Output |
Interface |
1 F type d output port for 16 carriers, 75Ω impedance |
||
|
RF Range |
50 ~ 960 MHz , 1kHz stepping |
|||
|
Output Level |
- 20 dBm~ +10 dBm( 87~117 dbµV) , 0. 1 dB stepping |
|||
|
MER |
≥ 40dB |
|||
|
TS output |
16 IP output over UDP/RTP/RTSP, unicast/multicast , 2 (Data1& Data2) 100/1000M Ethernet Ports |
|||
|
System |
Network management software (NMS) supporting |
|||
|
General |
Demission |
420 mm×4 40 mm×44.5mm (WxLxH) |
||
|
Temperature |
0~45 ℃ (operation) , -20~80 ℃ (storage) |
|||
|
Power Supply |
AC 100V±10% , 50/60Hz or AC 220V±10% , 50/60Hz |
|||
