The materials are crushed by impact energy produced in the crusher. When the materials enter the zone of the blow bar, they are flung into the impact equipments via the high-speed impact of the blow bar. These materials will be re-crushed after rebounding into the impact plate. The process goes on until the materials are crushed to the required size and then will be discharged.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Datong
-
Dimension(L*W*H):
-
5100MMX4700MMX4300MM
-
Weight:
-
27500 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-
PF Type Impact Crusher
-
Other name:
-
breaker/kibbler
-
Product type:
-
Small used rock hazemag impact crusher for sale with high quality
-
Max input size:
-
300MM
-
Production capacity:
-
150-250tph
-
Motor power:
-
315kw
-
Boundary dimension:
-
5100X4700X43000MM
-
Color:
-
customized
-
Installation:
-
Under engineer's guide
Quick Details
-
Application:
-
Construction, mining
-
Capacity(t/h):
-
150-250
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Datong
-
Dimension(L*W*H):
-
5100MMX4700MMX4300MM
-
Weight:
-
27500 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-
PF Type Impact Crusher
-
Other name:
-
breaker/kibbler
-
Product type:
-
Small used rock hazemag impact crusher for sale with high quality
-
Max input size:
-
300MM
-
Production capacity:
-
150-250tph
-
Motor power:
-
315kw
-
Boundary dimension:
-
5100X4700X43000MM
-
Color:
-
customized
-
Installation:
-
Under engineer's guide
Product Description

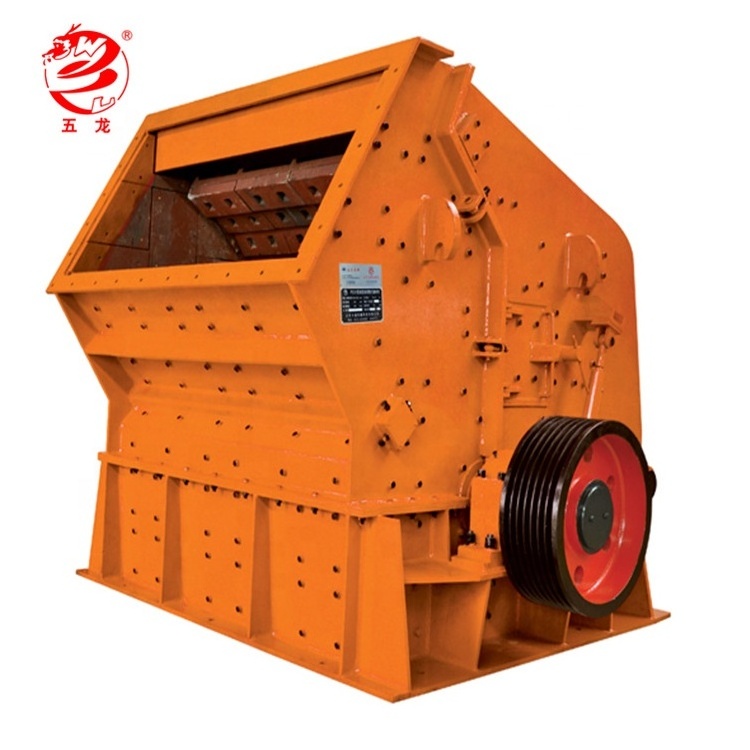

Small used rock hazemag impact crusher for sale with high-quality service
Impact crusher which can also be called impact breaker is a new type highly efficient crushing machine with the advantages of small size, simple structure, high crushing ratio, low energy consumption, high production capacity, even product granularity and selective rock crushing, so that it is a promising crushing equipment.Impact crusher is mainly used for secondary and fine crushing for all kinds of minerals and rocks(for example, the granite, marble, and limestone) with compressive strength less than 320 MPa. It is widely used for sand and rock producing in the industry of roads, railways,construction, electricity power, building materials and so on.
Working Principle
Impact Crusher Machine Advantages
1. Cubic shaped end products;
2. Adjustable end products sizes, simple crushing process;
3. High chrome and abrasion resistant blow bar, powerful impacting force;
4. Non-key connected, easy maintenance, economical and reliable;
5. Compact structure, high efficiency.
What Datong Machine can do
1.Pre-sale service:recommend suitable and economic machine, design production line for free, factory visiting and warm reception before placing order, etc.
2.After-sales service: Datong Machine accepts any forms of consults about machine installation, use and maintenance. If necessary engineers will go to the site for installation guidance, debugging and training operators.Spare parts can be bought and replaced conveniently from Datong Machine.
Quick reply can be got via below contacts:
David Qu
Cell/Wechat: +86 18615159345
WhatsApp: +86 18053310345
Skype: 115931169(@)qq.com
Email: sddt(@)datong-machinery.com
Specification
PF Type Impact Crusher
|
Model
|
Max. Feed Size(mm)
|
Production of Capacity (t/h)
|
Motor Power(mm)
|
Weight(T)
|
|
PF-1007
|
200
|
25-50
|
55
|
6.1
|
|
PF-1010
|
250
|
30-80
|
75
|
9.6
|
|
PF-1210
|
300
|
60-120
|
110
|
14
|
|
PF-1212
|
300
|
80-140
|
132
|
20
|
|
PF-1214
|
300
|
100-160
|
132
|
22
|
|
PF-1310
|
300
|
70-140
|
132
|
22.6
|
|
PF-1315
|
300
|
100-180
|
220
|
23
|
|
PF-1320
|
300
|
150-250
|
315
|
27.5
|
|
PF-2018
|
700
|
300-600
|
250X2
|
63.5
|
Success Cases
For crushing line project, we sent experienced engineers to the site to guide installation, debugging and training operators, and have abundant experience on project abroad.
Customers and engineers abroad
