Quick Details
-
Mounting Type:
-
Vertical installation
-
Description:
-

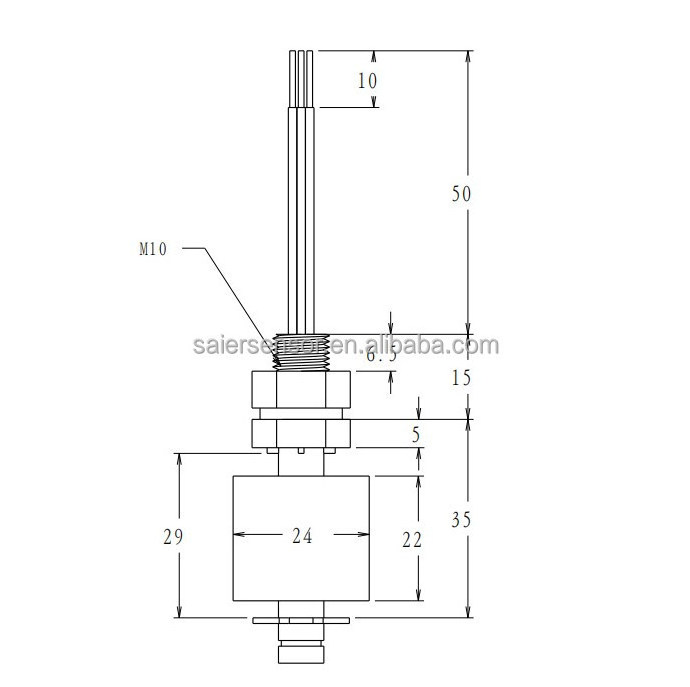

Using the fixing M10 screw verticaly entry 35mm, SEN-PPI
-
Model Number:
-
SEN-PPI
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAIER
-
Theory:
-
Dry Reed Theory
-
Output:
-
0/1
-
Material:
-
PP Plastic
-
Color:
-
white
-
Used medium:
-
Water or liquid that has no damage to the float,0- 60℃
-
Switching power:
-
10W,normally open,(NO)
-
Rated voltage:
-
≤DC24V(for high voltage use, access intermediate relay)
-
Switching response time:
-
0.2ms
-
Fix screw:
-
M10
-
Line specification and install direction:
-
could be Customized
-
Installation method:
-
Vertical entry 35mm
-
Shape:
-
I Shape
Quick Details
-
Usage:
-
Widely used in home appliances
-
Series:
-
Float Level Switch
-
Features:
-
Shape
-
Mounting Type:
-
Vertical installation
-
Description:
-
Using the fixing M10 screw verticaly entry 35mm, SEN-PPI
-
Model Number:
-
SEN-PPI
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAIER
-
Theory:
-
Dry Reed Theory
-
Output:
-
0/1
-
Material:
-
PP Plastic
-
Color:
-
white
-
Used medium:
-
Water or liquid that has no damage to the float,0- 60℃
-
Switching power:
-
10W,normally open,(NO)
-
Rated voltage:
-
≤DC24V(for high voltage use, access intermediate relay)
-
Switching response time:
-
0.2ms
-
Fix screw:
-
M10
-
Line specification and install direction:
-
could be Customized
-
Installation method:
-
Vertical entry 35mm
-
Shape:
-
I Shape
Normally Open Length 210mm Horizontal Float Switch DC110V Mercury Float Level Switch Water Level Sensor
Product Description
|
Product Name
|
water flow switch
|
|
|
|
|
||||
|
Material
|
Plastic PP material,
|
|
|
|
|
||||
|
Used medium
|
Water or liquid that has no damage to the float,0- 60℃
|
|
|
|
|
||||
|
Voltage/current
|
Below DC110V,≤0.5A
|
|
|
|
|
||||
|
Rated voltage
|
≤DC24V(for high voltage use, access intermediate relay)
|
|
|
|
|
||||
|
Installation method
|
Vertical entry 35mm
|
|
|
|
|
||||
