Quick Details
-
Rated Lifting Moment:
-
240 KN*m
-
Span:
-
4.3*3.6m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HW
-
Weight (KG):
-
16000 kg
-
Name:
-
Truck and trailer mounted crane crane 25 ton
-
Max. lifting height:
-
30m,35m
-
Max. loading capacity:
-
16000kg
-
Power (kw hp):
-
95KW (130hp)
-
Outrigger distance:
-
4.23*3.7m
-
Overall dimension:
-
11.2m*2.4m*3.2m
-
Driving speed:
-
60km/h
-
Main hoisting mechanism:
-
16T
-
Auxiliary hoisting mechanism:
-
12T
-
Boom section number:
-
7m X 5 section rope inside 7m X 6 section rope outside
Quick Details
-
Rated Loading Capacity:
-
25 ton, 15 TON, 16t
-
Max. Lifting Height:
-
24m
-
Application:
-
Construction
-
Rated Lifting Moment:
-
240 KN*m
-
Span:
-
4.3*3.6m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HW
-
Weight (KG):
-
16000 kg
-
Name:
-
Truck and trailer mounted crane crane 25 ton
-
Max. lifting height:
-
30m,35m
-
Max. loading capacity:
-
16000kg
-
Power (kw hp):
-
95KW (130hp)
-
Outrigger distance:
-
4.23*3.7m
-
Overall dimension:
-
11.2m*2.4m*3.2m
-
Driving speed:
-
60km/h
-
Main hoisting mechanism:
-
16T
-
Auxiliary hoisting mechanism:
-
12T
-
Boom section number:
-
7m X 5 section rope inside 7m X 6 section rope outside
Product Description

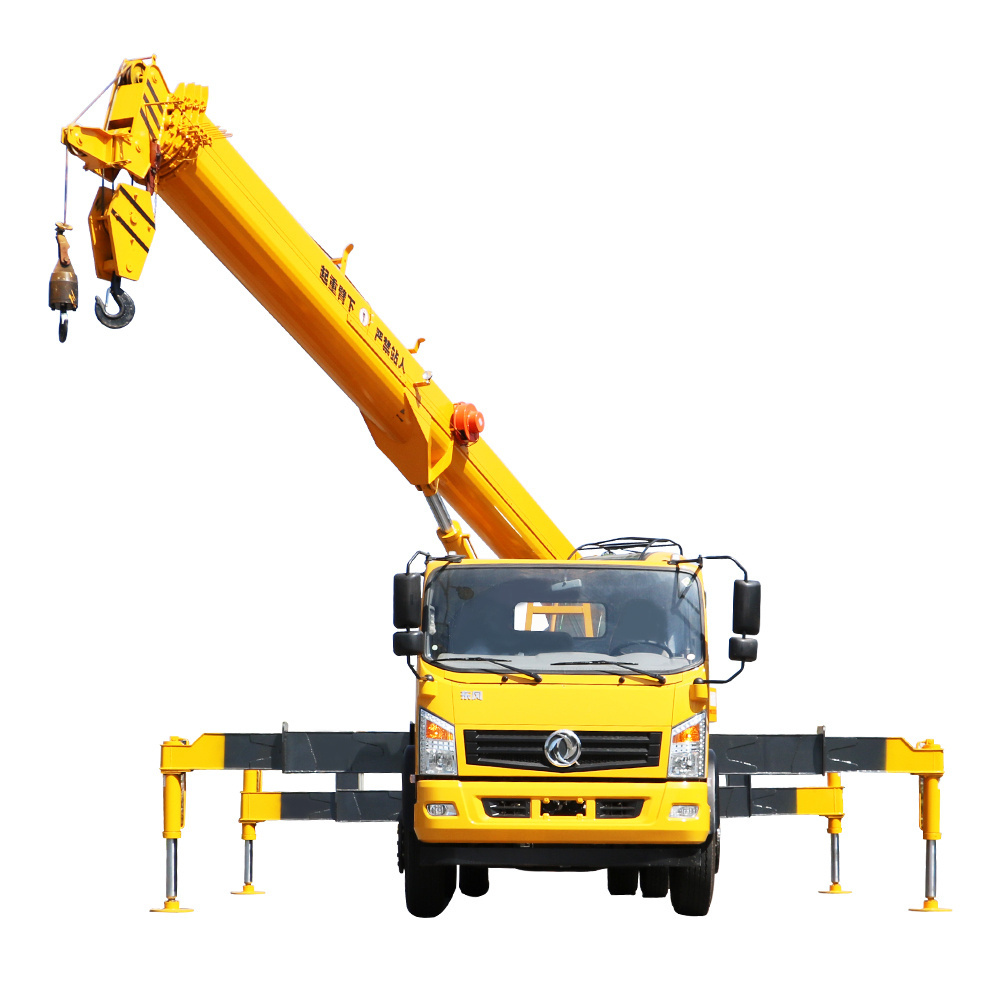

Truck and trailer mounted crane crane 25 ton/ 16ton truck mounted crane with
telescopic
boom
1. Boom telescopic limit marking and automatic stop report, limit switch three insurance.
2. Hydraulic double-section outriggers, extra-large outrigger span, larger working range and safer. The outrigger cylinder is
ejected with small clearance.
3. Double hooks and double winches to improve work efficiency. The winch adopts high-strength multi-strand anti-rotation
phosphor-plated steel wire rope, which has long life, high strength and more stable operation.
4. U-shaped section of the arm body, anti-twist design, more uniform force, better telescopic guidance, more stable telescopic
2. Hydraulic double-section outriggers, extra-large outrigger span, larger working range and safer. The outrigger cylinder is
ejected with small clearance.
3. Double hooks and double winches to improve work efficiency. The winch adopts high-strength multi-strand anti-rotation
phosphor-plated steel wire rope, which has long life, high strength and more stable operation.
4. U-shaped section of the arm body, anti-twist design, more uniform force, better telescopic guidance, more stable telescopic
Technical Parameter
The specification of
Truck and trailer mounted crane crane 25 ton/ 16ton truck mounted crane with telescopic boom
|
Model
|
HWQY16T
|
|
Chassis models
|
XCMG DONGFENG
|
|
Weight
|
16000kg (Without counterweight)
|
|
Overall Dimensions
|
10.2m*2.45m*3.5m
|
|
Wheelbase
|
3800mm
|
|
Max. loading capacity
|
16000kg
|
|
Max. lifting height
|
30m、35m
|
|
Gearbox model
|
6-speed
|
|
Power (kw hp)
|
95KW (130hp)
|
|
Emission Standards
|
China Ⅲ
|
|
Braking System
|
Air brake
|
|
Steering machanism
|
Hydraulic Power Steering
|
|
Boom section number
|
7m X 5 section rope inside 7m X 6 section rope outside
|
|
Main hoisting mechanism
|
16T
|
|
Auxiliary hoisting mechanism
|
12T
|
|
slewing mechanism
|
Planetary reducer
|
|
Outrigger
|
5 full hydraulic outriggers (double section)
|
|
Outrigger span (mm)
|
6250mm
|
|
Protective device
|
two way hydraulic control
|
|
Number of work lights
|
2
|
|
Hydraulic pump
|
double pump 50/40
|
|
Oil and electricity dual use
|
15KW IP6pole motor 40/32
|
|
Tire
|
900
|
Product Details
The specification of Truck and trailer mounted crane crane 25 ton/ 16ton truck mounted crane with telescopic boom
Gearbox model: 6-speed
Power (kw hp): 95KW（130hp）
Emission Standards: China Ⅲ
