Quick Details
-
Certification:
-
API
Quick Details
-
Weight (KG):
-
20
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zhaoxin
-
Certification:
-
API
PDC Drill Bits for Oilfield
We provide both steel body PDC bits and matrix body PDC bits for oil & gas drilling.
Steel Body PDC Bits Features:
Body of steel body PDC bits are made of premium alloy steel.
Extensive tungsten carbide hardfacing prolongs the bit life.
High performance PDC cutters enhance the ROP and lifetime.
Optimal layout of blades and cutters increase the ROP and stability.
Optimal nozzle layout promotes hydro-horsepower of bits.
Matrix Body PDC Bits Features:
Body of PDC matrix body bits are cast by tungsten carbide matrix powder bonded with a copper-nickel alloy binder.
High performance PDC cutters enhance the ROP and lifetime.
Optimal layout of blades and cutters increase the ROP and stability.
Optimal nozzle layout promotes hydro-horsepower of bits.
The specifications and main parameters
|
SIZE(inch) |
Cutters |
Blades |
Flow rate |
Rotary speed |
Weight on bit |
|
5 1/2 |
21 |
5 |
400~600GPM/25~38L/S |
60~350RPM |
3~15Kibs/14~67KN |
|
7 7/8 |
38 |
5 |
400~600GPM/25~38L/S |
60~350RPM |
3~15Kibs/14~67KN |
|
8 1/2 |
48 |
6 |
400~600GPM/25~38L/S |
60~350RPM |
3~15Kibs/14~67KN |
|
9 1/2 |
67 |
7 |
475~700GPM/30~90L/S |
60~350RPM |
3~20Kibs/14~90KN |
|
12 1/4 |
87 |
7 |
475~700GPM/30~60L/S |
60~350RPM |
3~29Kibs/14~129KN |
|
16 |
66 |
6 |
950~1450GPM/60~90L/S |
60~300RPM |
5~36Kibs/22~160KN |
|
17 1/2 |
65 |
5 |
950~1450GPM/41~63L/S |
60~300RPM |
4~30Kibs/18~134KN |

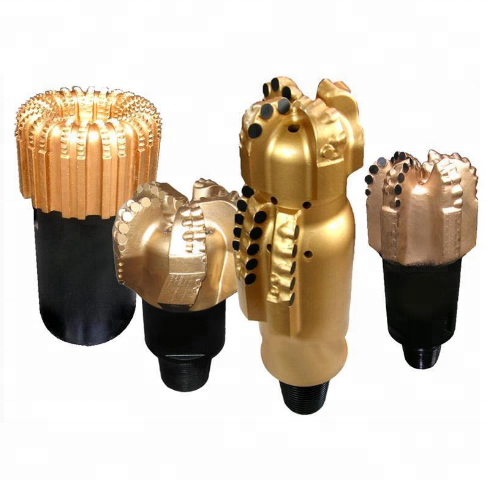

P
roduct show :
