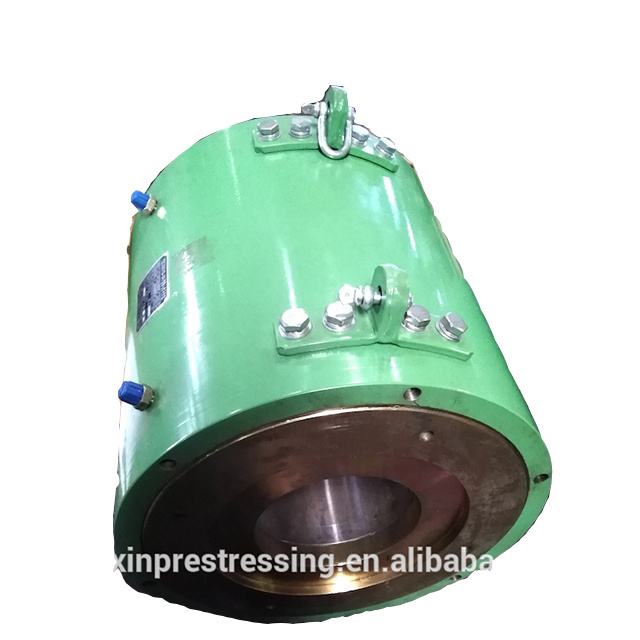

Heavy Capacity 500 tons Hydraulic Hollow Jacks YCQ500Q Multi Strand Jack

Heavy Capacity 500 tons Hydraulic Hollow Jacks YCQ500Q Multi Strand Jack

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1800

≥5 Pieces

US $1600

≥10 Pieces

US $1300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangxi, China

Brand Name:: DAXIN

Model Number:: YCQ500Q

Min Height:: 50mm, 50mm

Product name:: Capacity 500 tons Hydraulic Hollow Jacks YCQ500Q Multi Strand Jack

Max Capacity:: 50tons at least

Tension Pisiton Area:: 100.53x10-3

Nom Force:: 5000kN

Retuen Pressure Area:: 47.75x10-3

Min Service Space:: 1800mm

Stand Precutting Length:: 800mm

Quick Details

Warranty:: 3 years

Type:: Hydraulic Jack

Max Height:: 200mm, 200mm

Place of Origin:: Guangxi, China

Brand Name:: DAXIN

Model Number:: YCQ500Q

Min Height:: 50mm, 50mm

Product name:: Capacity 500 tons Hydraulic Hollow Jacks YCQ500Q Multi Strand Jack

Max Capacity:: 50tons at least

Tension Pisiton Area:: 100.53x10-3

Nom Force:: 5000kN

Retuen Pressure Area:: 47.75x10-3

Min Service Space:: 1800mm

Stand Precutting Length:: 800mm

Product Description

YCQQ before the cassette-type jack is a cassette jack before, using the bilt-in front point tools anchor,can be used to kinds of strand, single strand tensioning anchorage,or porous anchorage by root tension. Just turn the jack equipped device can effectively prevent when tension the jack and strand rotation.

Tension can also be self-locking anchor and anchor top pressure. Required to
anchor top pressure,install in the jack of the top pressure control,and install FL in the oil pump on the way shunt valve.

YCQQ series of light jack is a universal strong prestress feedthrough jack ,through the use of new sealing technology, computing and design, optimization design, successgully developed a new type of light jack, which is replacement of a series jack products TCQ, also have a small size, light weight, good sealing performance, high reliability,easy operation and so on, YCQQ series equipped with the ZB4-500-type oil pump electric pump is mainly used for the series is mainly used for anchorage jack the tension
anchor, when configured with fidderent accessories can tension head bolt,cold cast anchor and other anchorage respectively.

Detailed Images

Project	Unit	YCQ250Q	YCQ300Q	YCQ350Q	YCQ400Q	YCQ500Q
Nom.Pressure	MPa	54	52	52	50	50
Tension Pisiton Area	㎡	46.122x10-3	57.727x10-3	67.859x10-3	79.168x10-3	100.53x10-3
Nom.Force	kN	2490	3000	3528	3958	5000
Retuen Pressure Area	㎡	25.780x10-3	31.337x10-3	34.626x10-3	45.945x10-3	47.75x10-3
Stroke	mm	200	200	200	200	200
Cavity Aperture ΦB	mm	Φ131	Φ145	Φ165	Φ165	Φ196
Weight	kg	145	170	230	240	390
Overal Size ΦAXC	mm	Φ340x342	Φ376x342	Φ412x357	Φ432x362	Φ500x392
Min. Service Space	mm	1300	1300	1350	1350	1800
Min. Service Space	mm	230	250	300	300	350
Stand Precutting Length	mm	630	630	700	700	800

Packing & Delivery

Certifications

Customers

Projects

FAQ .

Q: Are there calibration certificate of the jack?

A: Our Jack are calibrated by China authority, is Chinese standard.

Q: How can I get the anchorage?

A: If you need the anchorage, please offer us your drawing to confirm. IF you dont have drawing, we can show you ours.

Q: What is your term of delivery?

A: We accept EXW, FOB Shenzhen, FOB Guangzhou, CIF, DDU.

Q: What about the lead time for the mass production?

A: We often arrange our product within 7 working days. Sometimes it depends on your order quantity and the season you placesd. .
