Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZUOAN
-
Model Number:
-
CZ109
-
Video Compression Format:
-
H.265; H.264; H.264H; H.264B; MJPEG
-
Certification:
-
ATEX, IECEx certified
-
Material:
-
Stainless Steel 304/316L
-
Enclosure Protection:
-
IP66 IP68 (2m 2h) IP69
-
Lens:
-
Motorized vari-focal lens 2.8 ~ 12mm
-
IR Distance:
-
60 m (197 ft)
Quick Details
-
Special Features:
-
NIGHT VISION, Motion Detection, Waterproof / Weatherproof, Two-way Audio, Smart Codec
-
Function:
-
Two-way Audio, Alarm I/O
-
Customized support:
-
OEM, ODM
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZUOAN
-
Model Number:
-
CZ109
-
Video Compression Format:
-
H.265; H.264; H.264H; H.264B; MJPEG
-
Certification:
-
ATEX, IECEx certified
-
Material:
-
Stainless Steel 304/316L
-
Enclosure Protection:
-
IP66 IP68 (2m 2h) IP69
-
Lens:
-
Motorized vari-focal lens 2.8 ~ 12mm
-
IR Distance:
-
60 m (197 ft)
Description

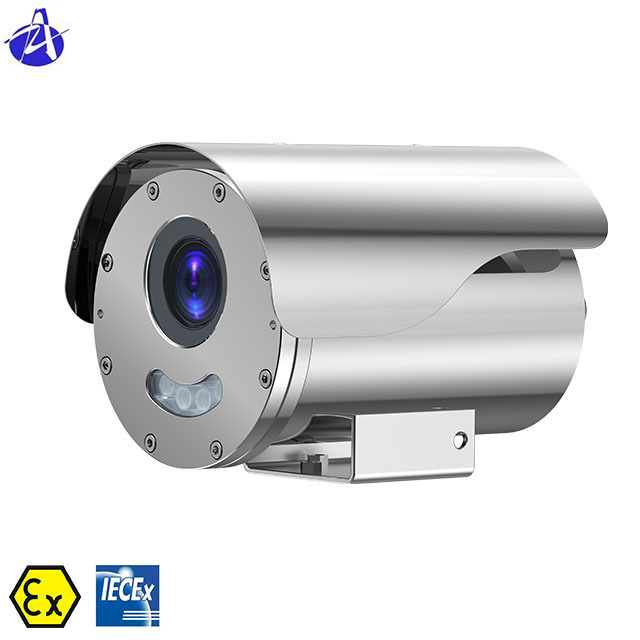

The ATEX & IECEx certified CZ109 are ZUOAN designed classic explosion-proof corrosion-proof camera, which can load various camera. This product has obtained group II explosion-proof level certification and temperature level certification, applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. For example: refine, oil extraction, gas extraction, chemical, petrol station and other environment.
Features
* ATEX, IECEx certified
* Application: Gas zone 1 and zone 2; Dust zone 21 and zone 22
* Ex db IIC T6 Gb/Ex tb IIIC T80℃ Db
* Stainless steel 304/316L
* Optional electropolished or corrosion resistant paint finish
* Enclosure Protection:IP66 IP68 (2m 2h) IP69
* Motorized vari-focal lens2.8 ~ 12mm
* 4MP, 1/3”CMOS image sensor
* Outputs max. 4MP (2688X 1520)@30 fps
* ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
* Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
* Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection
* Intelligent detection: Intrusion, tripwire
* 12V DC/POE power support
* SmartIR,up to 60m (164ft) IR distance
* Supports max. 256 G Micro SD card
* Application: Gas zone 1 and zone 2; Dust zone 21 and zone 22
* Ex db IIC T6 Gb/Ex tb IIIC T80℃ Db
* Stainless steel 304/316L
* Optional electropolished or corrosion resistant paint finish
* Enclosure Protection:IP66 IP68 (2m 2h) IP69
* Motorized vari-focal lens2.8 ~ 12mm
* 4MP, 1/3”CMOS image sensor
* Outputs max. 4MP (2688X 1520)@30 fps
* ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
* Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
* Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection
* Intelligent detection: Intrusion, tripwire
* 12V DC/POE power support
* SmartIR,up to 60m (164ft) IR distance
* Supports max. 256 G Micro SD card
Specification
|
Camera
|
|
|
|
Image Sensor
|
1/3” 4Megapixel progressive CMOS
|
|
|
Effective Pixels
|
2688 (H) ×1520 (V)
|
|
|
ROM
|
128 MB
|
|
|
RAM
|
512 MB
|
|
|
Scanning System
|
Progressive
|
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100000 s
|
|
|
Min. Illumination
|
0.005 Lux@F1.5
|
|
|
IR Distance
|
60 m (197 ft)
|
|
|
IR On/Off Control
|
Auto/Manual
|
|
|
IR LEDs Number
|
4 (IR LEDs)
|
|
|
Lens
|
|
|
|
|
|
|||||
|
Lens Type
|
|
Motorized vari-focal
|
|
|
|
|||||
|
Mount Type
|
|
φ14
|
|
|
|
|||||
|
Focal Length
|
|
2.7 mm–13.5 mm
|
|
|
|
|||||
|
Max. Aperture
|
|
F1.5
|
|
|
|
|||||
|
Field of View
|
|
Horizontal: 104°–27°
Vertical: 55° –15° Diagonal: 124° –31° |
|
|
|
|||||
|
Iris Type
|
|
Fixed aperture
|
|
|
|
|||||
|
Close Focus Distance
|
|
0.8 m (2.6 ft)
|
|
|
|
|||||
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|||||
|
|
W
|
64.0 m
(210.0ft)
|
25.6 m
(84.0 ft)
|
12.8 m
(42.0 ft)
|
6.4 m
(21.0 ft)
|
|||||
|
|
T
|
222.0 m
(728.3 ft)
|
88.8m
(291.3 ft)
|
44.4 m
(145.7 ft)
|
22.2 m
(72.8 ft)
|
|||||
|
Professional, Intelligent
|
|
|
|
Perimeter Protection
|
Tripwire; intrusion (Recognition of human and vehicle)
|
|
|
Intelligent Search
|
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
|
|
|
Video
|
|
|
|
Video Compression
|
H.265; H.264; H.264H; H.264B; MJPEG
|
|
|
Smart Codec
|
Yes
|
|
|
Video Frame Rate
|
Main stream (2688 × 1520@1–25/30 fps)
sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps) third stream (1280 × 720@1–25/30 fps) |
|
|
Stream Capability
|
3 streams
|
|
|
Resolution
|
4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 ×
1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|
|
Bit Rate Control
|
CBR/VBR
|
|
|
Video Bit Rate
|
H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps
|
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
|
BLC
|
Yes
|
|
|
HLC
|
Yes
|
|
|
WDR
|
120 dB
|
|
|
White Balance
|
Auto/natural/street lamp/outdoor/manual/regional custom
|
|
|
Gain Control
|
Auto/Manual
|
|
|
Noise Reduction
|
3D DNR
|
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
|
Region of Interest(RoI)
|
Yes (4 areas)
|
|
|
Smart IR
|
Yes
|
|
|
Image Rotation
|
0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)
|
|
|
Mirror
|
Yes
|
|
|
Privacy Masking
|
4 areas
|
|
|
Optional Audio
|
|
|
|
Audio Compression
|
G.711a; G.711Mu; G726; AAC
|
|
|
Network
|
|
|
|
Network
|
RJ-45 (10/100 Base-T)
|
|
|
Protocol
|
IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;
Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
|
|
Interoperability
|
ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
|
|
|
Scene Self-adahptation
|
Yes
|
|
|
User/Host
|
20 (Total bandwidth: 64 M)
|
|
|
Edge Storage
|
FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
|
|
|
Browser
|
IE: IE8, IE9, IE11
Chrome Firefox |
|
|
Management Software
|
Smart PSS, DSS, DMSS
|
|
|
Mobile Phone
|
IOS; Android
|
|
|
Optional Port
|
|
|
|
Audio Input
|
1-channel (RCA port)
|
|
|
Audio Output
|
1-channel (RCA port)
|
|
|
Alarm Input
|
1 channel in: 5mA 3V–5V DC
|
|
|
Alarm Output
|
1 channel out: 300mA 12V DC
|
|
|
Power
|
|
|
|
Power Supply
|
12V DC/PoE (802.3af)
|
|
|
Power Consumption
|
<9.8W
|
|
|
Environment
|
|
|
|
Operating Conditions
|
-40°C to +60°C (-40°F to +140°F), Humidity: ≤95% RH (non-condensing)
|
|
|
Strorage Conditions
|
-40°C to +60°C (-40°F to +140°F), Humidity: ≤95% RH (non-condensing)
|
|
|
Ingress Protection
|
IP66, IP68 (2m 2h), IP69
|
|
|
Structure
|
|
|
|
Casing
|
Stainless Steel 304/316L
|
|
|
Dimensions (L × W × H)
|
270.50mm × 166.00mm × 160.00mm (10.6” × 6.5” × 6.3”)
|
|
|
Pigtail Cable
|
2meters standard combined cable (power+UTP)
|
|
|
Net Weight
|
5.6 kg (12.34 lb)
|
|
|
Gross Weight
|
6.5 kg (14.33 lb)
|
|
|
Bracket
|
ZAZ100B Wall bracket with adaptor
|
|
