Quick Details
-
Size:
-
By need
-
Place of Origin:
-
Shandong, China
-
USAGE:
-
Bitumen Transport
-
Logo:
-
By customer Needs
-
Condition:
-
New/Customize by needs (production time 15 days)
-
Axle Style:
-
American /Germany 13-20Tons
-
Suspension:
-
Bogie/Air/Mechanic/Rigid Optional
-
Color:
-
By customer needs
-
Aftersale:
-
1 year
-
King pin:
-
2"(50mm)or3.5"(90mm)
-
Brake System:
-
Dual Line Braking System
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
20-80Tons
-
Brand Name:
-
Eleph
-
Size:
-
By need
-
Place of Origin:
-
Shandong, China
-
USAGE:
-
Bitumen Transport
-
Logo:
-
By customer Needs
-
Condition:
-
New/Customize by needs (production time 15 days)
-
Axle Style:
-
American /Germany 13-20Tons
-
Suspension:
-
Bogie/Air/Mechanic/Rigid Optional
-
Color:
-
By customer needs
-
Aftersale:
-
1 year
-
King pin:
-
2"(50mm)or3.5"(90mm)
-
Brake System:
-
Dual Line Braking System

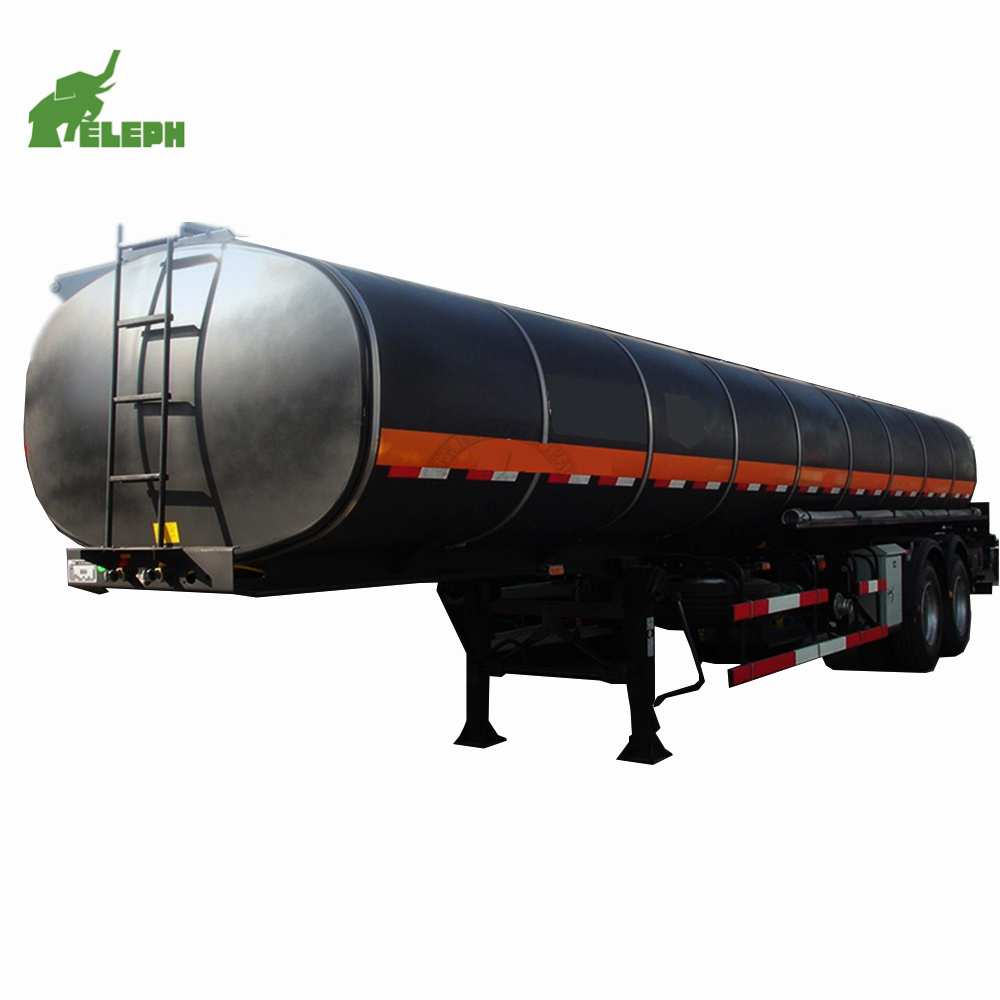

Asphalt/Bitumen Tanker
|
Volume(CBM) |
50CBM (Size can be Accustomed) |
|
Medium |
Bitumen |
|
Overall Dimension(L*W*H)(mm) |
12800*2500*3850 |
|
Shape of the tank body |
Straight |
|
Tank body thickness |
5mm/Q235B |
|
Dish end thickness |
5mm/Q235B |
|
Baffle |
4mm/Q235B |
|
Dish end shape |
Oval |
|
Compartment(piece) |
One |
|
Manhole |
Two(500mm in dimension) |
|
Discharge valve(piece) |
Two |
|
Valve form |
Ball vale |
|
Valve specification |
6” |
|
Insulation or not |
Yes |
|
Running part |
|
|
1,Axle number&specification:13T FUWA axle,3 pieces,with ABS |
|
|
2,Suspension specification&number:Leaf spring 13*90*10 6 pieces |
|
|
3,Kingpin:90# |
|
|
4,Relay valve:Copy the American standard |
|
|
5,Landing gears:20T |
|
|
6,Tire specification&number:Brand Triangle 12R22.5,12 pieces |
|
|
7,Rim specification&number:9.0*22.5,12 pieces |
|
|
8,Break chamber:single/double/double,6 pieces |
|
|
Electric System |
|
|
1.Voltage: 24v 2.Receptacle: 7 ways (7 wire harness) 3.Tail lamp with turn signal, brake light & reflector, side lamp etc |
|
|
Accessories |
|
|
1,Fire extinguishing |
8kg*2 pieces |
|
2,Tool box |
One piece*1.5m |
|
3,Spare wheel carrier |
One piece |
