- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Electric Rotating Brush Battery Operated Solar Cleaning Brush Machine
-
Application:
-
Battery Operated Solar Cleaning Brush
-
Function:
-
Solar Panel Cleaning Machine
-
Cleaning Mode:
-
Motor/ Manual
-
Length:
-
3.6m/5.4m/7.2m
-
Warranty:
-
180 days
-
Work Efficiency:
-
0.5-0.8MWp/day/pcs
-
Weight:
-
18-22 Kgs(2Packages)
-
Battery Life:
-
3-4h Affected by work environment
-
Usage:
-
Solar Panel Rotating Brush
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Electric Rotating Cleaning Brush
-
Model Number:
-
FSCM03
-
Product name:
-
Electric Rotating Brush Battery Operated Solar Cleaning Brush Machine
-
Application:
-
Battery Operated Solar Cleaning Brush
-
Function:
-
Solar Panel Cleaning Machine
-
Cleaning Mode:
-
Motor/ Manual
-
Length:
-
3.6m/5.4m/7.2m
-
Warranty:
-
180 days
-
Work Efficiency:
-
0.5-0.8MWp/day/pcs
-
Weight:
-
18-22 Kgs(2Packages)
-
Battery Life:
-
3-4h Affected by work environment
-
Usage:
-
Solar Panel Rotating Brush
FS Electric Rotating Brush Battery Operated Solar Cleaning Brush Machine
Products Description

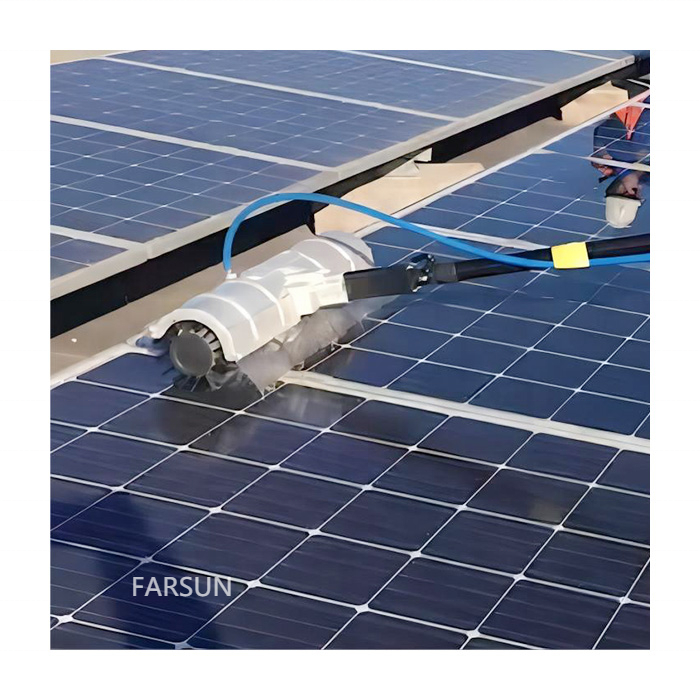

Solar cleaning machine, which is designed and made for the special environment of photovoltaic power station.
It is suitable for barren mountain power station , distributed power station and farming photovoltaic power station within meters where the big solar panel cleaning system can't get into.
Product Paramenters
|
ITEM
|
|
3600mm
|
5400mm
|
7200mm
|
|
|
Product Parameters
|
Type
|
With water feeder
|
With water feeder
|
With water feeder
|
|
|
|
Minimum size
|
575*2330mm
|
575*2330mm
|
575*2330mm
|
|
|
|
Maximum size
|
575*3630mm
|
575*5430mm
|
575*7230mm
|
|
|
|
Net weight
|
12KG
|
13KG
|
14KG
|
|
|
|
Gross weight
|
13KG
|
14KG
|
15KG
|
|
|
|
Carton size
|
2030* 170*420MM
|
2030* 170*420MM
|
2030* 170*420MM
|
|
|
Technical
Parameters
|
Working mode
|
Motor
|
Motor
|
Motor
|
|
|
|
Operating voltage
|
24V
|
24V
|
24V
|
|
|
|
Charging voltage
|
220V/110V
|
220V/110V
|
220V/110V
|
|
|
|
Motor power
|
200W
|
200W
|
200W
|
|
|
|
Battery capacity
|
20Ah
|
20Ah
|
20Ah
|
|
|
|
ldler electric current
|
7~8A
|
7~8A
|
7~8A
|
|
|
|
ldler revolutions
|
500~600rpm
|
500~600rpm
|
500~600rpm
|
|
|
|
Battery life
|
3~4h Affected by working environment and season
|
3~4h Affected by working environment and season
|
3~4h Affected by working environment and season
|
|
|
|
Length of brush roller
|
ф 150*570*400mm
|
ф 150*570*400mm
|
ф 150*570*400mm
|
|
|
|
Length of telescopic rod
|
3600mm
|
5400mm
|
7200mm
|
|
|
|
Day work efficiency
|
0.5~0.8MW
|
0.5~0.8MW
|
0.5~0.8MW
|
|
|
|
Work temperature range
|
-30~60℃
|
-30~60℃
|
-30~60℃
|
|
