Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Dimension:
-
2170*890*1150mm
-
Cooling way:
-
condensing
-
Semi-axis:
-
360mm
-
Tire model:
-
6.00-12
Quick Details
-
Brand Name:
-
ANON
-
Place of Origin:
-
Hubei, China
-
Weight:
-
60 KG, 320KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Dimension:
-
2170*890*1150mm
-
Cooling way:
-
condensing
-
Semi-axis:
-
360mm
-
Tire model:
-
6.00-12

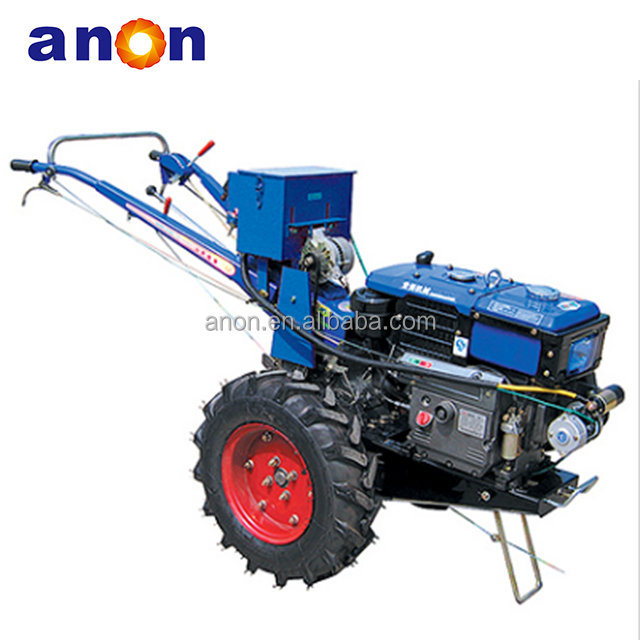

ANON best selling hand operation farm walking tractor machine 2 wheel walk behind tractor in Afria
ANON best selling hand operation farm walking tractor machine 2 wheel walk behind tractor in Afria
4. The products are suitable for operating in paddy field, dry field, orchard, greenhouse, hilly field.
ANON best selling hand operation farm walking tractor machine 2 wheel walk behind tractor in Afria
| 8HP | 10HP | 12HP | |
| Dimension(L*W*H)mm | 2170*890*1150 | 2170*890*1150 | 2170*1150 |
| Min ground distance(mm) | 210 | 210 | 210 |
| Wheel base(mm) | 640-680 | 640-680 | 640-680 |
| Weight(KG) | 320 | 280 | 280 |
| Semi-axis(mm) | 360 | 360 | 360 |
| Tire model(KG) | 6.0-12 | 6.0-12 | 6.0-12 |
| Triangle belt | B1800 | B1800 | B1800 |
| Starting system | Hand/electric starter | Hand/electric starter | Hand/electric starter |
| Engine | ZR 180NL | ZR 190NLD | ZR 195NLD |
| Type | Single cylinder,horizontal,water cooled,four stroke | Single cylinder,horizontal,water cooled,four stroke | Single cylinder,horizontal,water cooled,four stroke |
| Combustion | Direct injection | Direct injection | Direct injection |
| Cooling mode | Condensing | Condensing | Condensing |
| Power(1 hour) | 5.67kw/8hp | 7.7kw/10.5hp | 8.91kw/12hp |
| Model | XG61 | XG101 | XG151 |
| Type | Traction&driving | Traction&driving | Traction&driving |
| Power/hp | 5.88-8.8kw/8-12hp | 5.88-8.8kw/8-12hp | 11.03-13.34kw/15-18hp |
| Rate traction | 1700n | 1700n | 2400n |
| Dimension(l*w*h)mm | 2240*840*1310 | 2170*890*1150 | 2680*960*1250 |
| Min ground distance(mm) | 210 | 210 | 185 |
| Structure weight | 230KG | 230KG | 350KG |
| Type of clutch | Double friction disc of constant combination | Single/double friction disc of constant combination | Double friction disc of constant combination |
| Type of steering gear | Meshing sleeve | Meshing sleeve | Meshing sleeve |
| Triangle bell | B1800,2PCS | B1800,2PCS | B1800,4PCS |
| Type of tyre | 6.00-12 | 6.00-12 | 6.00-12 |
| Tread | 640-680mm | 640-680mm | 580-800mm |
These tractors can be used with the below configurations according to customer's demands.
