Quick Details
-
Voltage:
-
380V 50Hz 3PH
-
Disc Dia.:
-
None
-
No Load Speed:
-
0.25-0.3m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LONGXIANG
-
Model Number:
-
LX-D75/40C
-
Warranty:
-
one year
-
Product name:
-

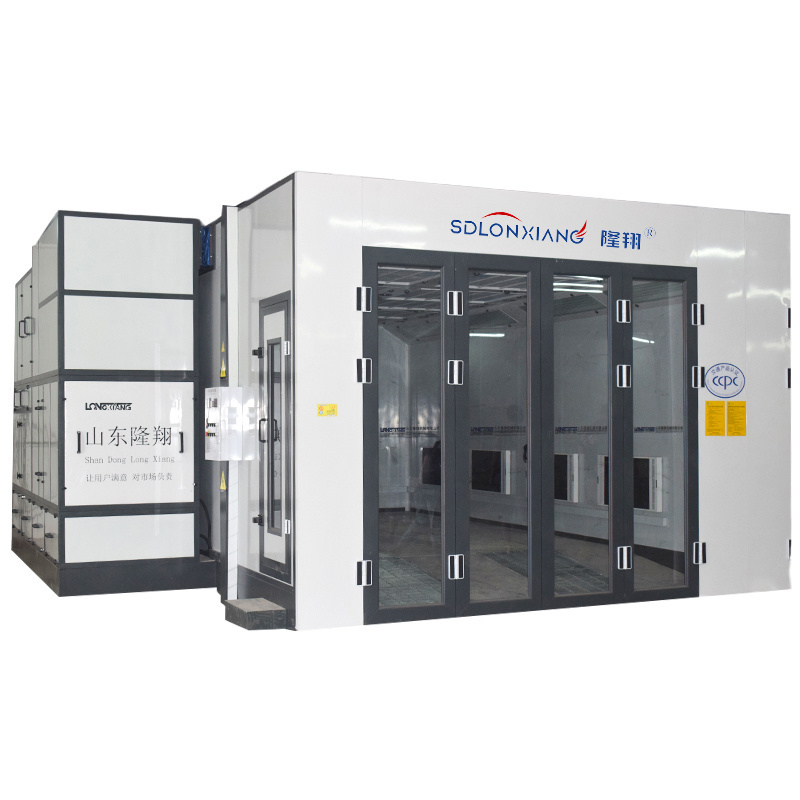

Spray Paint Booth
-
Usage:
-
Car Baking Spray Paint Booth
-
Heating System:
-
Infrared Heating
-
Color:
-
Client's Requirements
-
Lighting System:
-
LED Light
Quick Details
-
Power:
-
45.5KW
-
External Size:
-
7000*5450*3400mm
-
Internal Size:
-
6900*4000*2650mm
-
Voltage:
-
380V 50Hz 3PH
-
Disc Dia.:
-
None
-
No Load Speed:
-
0.25-0.3m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LONGXIANG
-
Model Number:
-
LX-D75/40C
-
Warranty:
-
one year
-
Product name:
-
Spray Paint Booth
-
Usage:
-
Car Baking Spray Paint Booth
-
Heating System:
-
Infrared Heating
-
Color:
-
Client's Requirements
-
Lighting System:
-
LED Light
Products Description
|
|
|
LX-D75/40C
|
|
|
|||
|
Outside size
|
|
7000×5450×3400mm(L×W×H)
|
|
|
|||
|
Inside size
|
|
6900×4000×2650mm(L×W×H)
|
|
|
|||
|
Entrance door
|
|
3 folds, 3000x2600 mm(W×H), bending steel door,tempered glass windows
|
|
|
|||
|
Emergency door
|
|
650*2000mm(W*H), equipped with handle lock,watch window,one-step
|
|
|
|||
|
Cabin system
|
Wall panel
|
50mm rock wool board, 0.5mm thick steel, anti-flame and heat- insulation.
High quality galvanized steel roof panel.
|
|
|
|||
|
|
|
Galvanized steel assemble, 280 mm high, with steel structure support, 2 rows of 30*5mm grills,3 rows of diamond plates.
3 ramps, external setting, 970*2000mm(W*L)/pc
|
|
|
|||
|
|
Inlet fan
|
1*7.5kw turbo fans, each set air capacity: 28000m³/h, direct drive.
|
|
|
|||
|
|
Outlet fan
|
1*7.5kw turbo fans, each set air capacity: 28000m³/h, direct drive.
|
|
|
|||
|
|
|
Intake air from side upper, adopt powder quadrate steel frame, strong and beautiful.
Air duct * 2 units. Elbow: 90°*1 unit. |
|
|
|||
|
|
Airflow speed
|
On-load speed: 0.4m/s, ventilation rate: 320times/h
|
|
|
|||
|
Heating system
|
Electric
|
Adopt 10 sets of high-efficiency short-wave infrared lamp, 3 pieces in each group, 1KW each.(24 *1KW heating tubes are arranged on both sides
of the room, and 6 *1KW heating tubes are arranged on the rear wall panel.) Total power: 30KW. Adopt separate control by grouping contactors. Maximum operating temperature: 80℃, heating speed (20-80℃) : 15-20min.
|
|
|
|||
|
|
Ceiling lights
|
8units*4pieces*16w LED Lighting
|
|
|
|||
|
|
Side lights
|
Optional
|
|
|
|||
|
|
Primary filter
|
Grade G2 plate type , filtering rate＞83%
|
|
|
|||
|
|
Ceiling filter
|
EU5 grade high efficient filter, filtering rate＞98%
|
|
|
|||
|
|
Floor filter
|
Multi-layer fiberglass filter, filtering rate＞70%
|
|
|
|||
|
Eco system
|
Active carbon filter
|
Grade G4, dust purification rate ≥85%
Active carbon, small cabinet with activated carbon granule
|
|
|
|||
|
Control system
|
Control panel
|
Luxury intelligent electronic control system
|
|
|
|||
|
|
Function
|
Lighting, temperature time setting, painting, constant temperature painting, baking, emergency stop, failure indication, etc
|
|
|
|||
|
Total power
|
45.5 KW
|
|
|
|
|||
|
Voltage/frequency
|
380V, 50HZ, 3phase
|
|
|
|
|||
