- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V
-
Weight:
-
20 KG
-
Dimension(L*W*H):
-
Based on equipmenmt
-
Core Components:
-
Oxygen tower
-
Item:
-
Oxygen production plant
-
Material:
-
Zeolite molecular sieve
-
Oxygen producing method:
-
PSA(Pressure Swing Adsorption)
-
Oxygen output:
-
3LPM, 5LPM, 8LPM and 10LPM
-
Parts:
-
Oxygen tower,air compressor,fan,chiller,etc
-
Oxygen purity:
-
90%±3%
-
Outlet pressure:
-
0.06-0.08Mpa
-
Inlet pressure:
-
0.2Mpa
-
Noise:
-
<58Db
-
NW:
-
16-26kgs
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Globalozone
-
Production Rate:
-
90%
-
Voltage:
-
220V
-
Weight:
-
20 KG
-
Dimension(L*W*H):
-
Based on equipmenmt
-
Core Components:
-
Oxygen tower
-
Item:
-
Oxygen production plant
-
Material:
-
Zeolite molecular sieve
-
Oxygen producing method:
-
PSA(Pressure Swing Adsorption)
-
Oxygen output:
-
3LPM, 5LPM, 8LPM and 10LPM
-
Parts:
-
Oxygen tower,air compressor,fan,chiller,etc
-
Oxygen purity:
-
90%±3%
-
Outlet pressure:
-
0.06-0.08Mpa
-
Inlet pressure:
-
0.2Mpa
-
Noise:
-
<58Db
-
NW:
-
16-26kgs

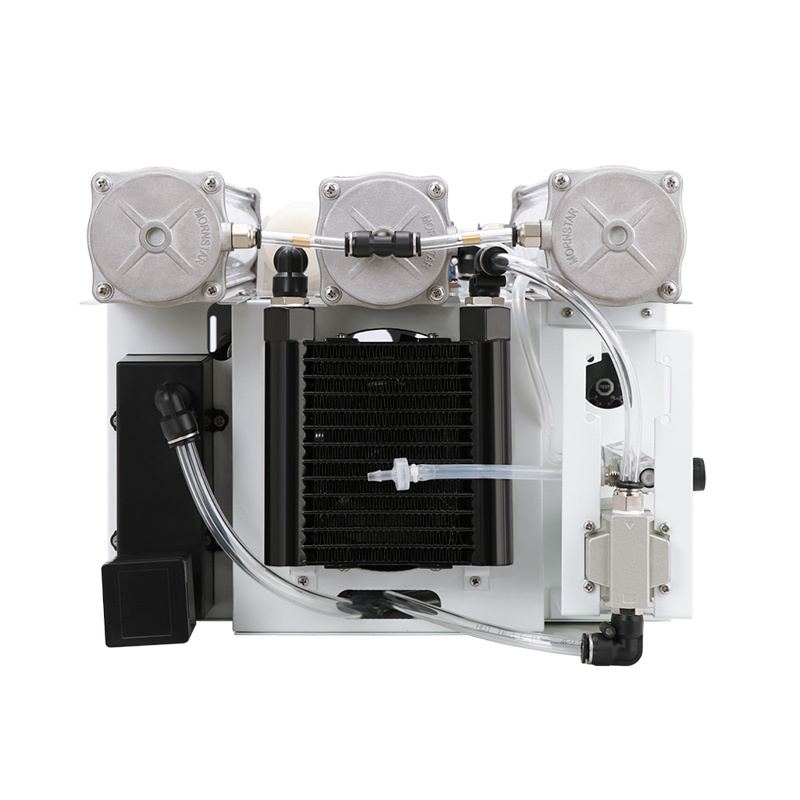

Oxygen production plant /industrial oxygen generator parts 5L and 10L
Features
1. Oxygen output: 3LPM, 5LPM, 8LPM and 10LPM
2. All with assembly, you just need to put it into an machine case and connect power
3. Oxygen purity: 90%+-3%
4. Oxygen outlet pressure: 0.06-0.08Mpa, special pressure can be special made
5. Material: Imported molecular sieve bed
6. PSA technology with 2 towers exchange working, one tower working another tower stop.
7. Life time for zeolite sieve: 8000-15000 hours, the inlet gas quality is the determining factor for life time.
Parameter
|
Item |
Unit |
GO-OL 3L |
GO-OL 5L |
GO-OL 8L |
GO-OL 10L |
|
Oxygen outlet |
LPM | 3 | 5 | 8 | 10 |
|
Oxygen purity |
% |
90%±3% |
|||
|
Oxygen pressure |
Mpa |
0.06-0.08
|
|||
|
Air inlet flow rate |
LPM |
70 |
90 |
100-105 |
110 |
|
Air inlet pressure |
Mpa |
0.18-0. 2 |
0. 2 |
0. 2 |
0. 2 |
|
Power |
W |
≥ 4 05 |
≥ 505 |
≥ 615 |
≥ 615 |
|
Size |
mm |
39 0× 29 0× 45 0 |
39 0× 29 0× 46 0 |
39 0× 29 0× 47 0 |
39 0× 29 0× 49 0 |
|
Mounting holes |
mm |
24/M10 |
|||
| NW | Kg |
19.20 |
21.60 |
22.00 | 23.40 |
FAQ :
Q: Are you a manufacturer or a trading company?
A: We are manufacturer since 2009 in Guangzhou China, providing OEM & ODM service for the ozone equipment, oxygen equipment and water treatment equipment.
Q: What ’ s your warranty ?
A: All products covered with 12 months warranty, life time technical support.Any quality problem during warranty time, we will send more parts for replacement.
Q: What's MOQ?
A:. One piece for certain model.
Q: Can I buy a sample for test purpose, then if it’s ok, I’ll buy more?
A: Yes, you can.
Q: Is there any discount?
A: Of course, more quantities, more discount , you can contact our sales online for more details or leave your message to us.
Q: Are your products conforming to our standards?
A:Yes, our products can pass the testings as you require, e.g.:CE, PSE, etc.
Q: How do you control the quality?
A:We control the product quality by IQC, three tests on production lines, and 100% aging testing before packaging. We had passed ISO900 1 report.
Q: How do you ship the goods and how long does it take?
A:We usually ship by DHL, UPS, FEDEX,TNT. It usually takes 4-5days to arrive. By air or by sea both acceptable.
Q: What ’ s the payment term ?
A: TT, PayPal, LC and also Alibaba order.
