Quick Details
-
Model Number:
-
KYT
-
Max. Current:
-
32A
-
Type:
-
Disconnect Switch
-
Rated current:
-
32A
-
Pole:
-
4P
-
Standard:
-
IEC60947*3
-
Mechanical Life:
-
20000 times
-
Electric Life:
-
2000 times
-
OEM:
-
Yes
-
Protection degree:
-
IP40
-
Installation mode:
-
Screw mounting
-
Quality:
-
GOOD
Quick Details
-
Max. Voltage:
-
1200V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kayal
-
Model Number:
-
KYT
-
Max. Current:
-
32A
-
Type:
-
Disconnect Switch
-
Rated current:
-
32A
-
Pole:
-
4P
-
Standard:
-
IEC60947*3
-
Mechanical Life:
-
20000 times
-
Electric Life:
-
2000 times
-
OEM:
-
Yes
-
Protection degree:
-
IP40
-
Installation mode:
-
Screw mounting
-
Quality:
-
GOOD
Products Description

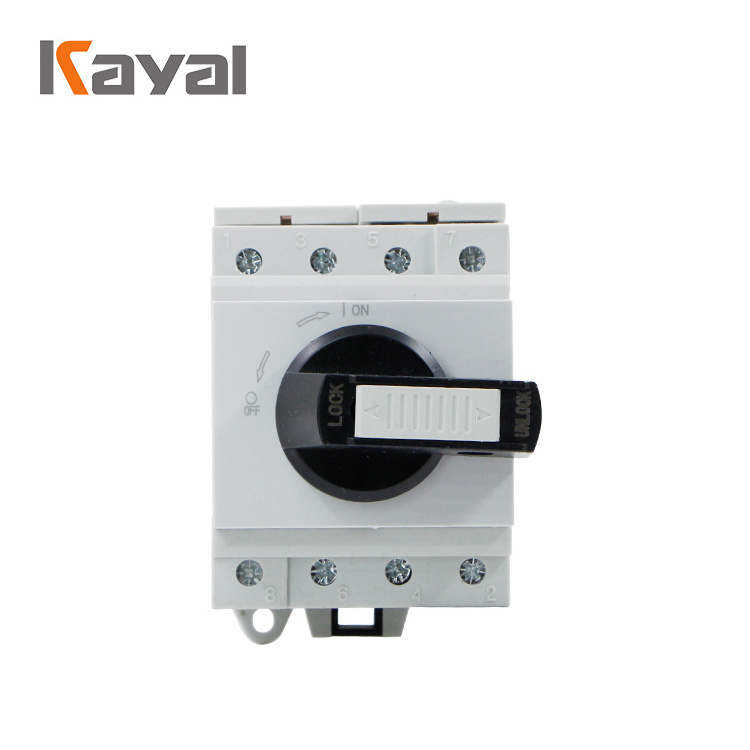

DC Isolator Switches
Application
KYT series DC Isolator Switches are applied to 1-20KW Inverter, Controller, DC Combiner Box, used for Residential or Commercial PV solar power system (on-grid/of-grid). Arcing time less than 3ms, that make PV solar system effectively disconnected.
KYT.2-32 DC Isolator Switches
• DIN Rail Mounting
• KYT.2-32 Rated Voltage 1200V DC
• OFF LOCKABLE
• Flame-Retardant
• Arcing Time < 3ms
• IEC60947*3
• 4Potes(Single/Double Strings Available)
• DC-21B:16A.25A.32A up to 1200V DC
Application
KYT series DC Isolator Switches are applied to 1-20KW Inverter, Controller, DC Combiner Box, used for Residential or Commercial PV solar power system (on-grid/of-grid). Arcing time less than 3ms, that make PV solar system effectively disconnected.
KYT.2-32 DC Isolator Switches
• DIN Rail Mounting
• KYT.2-32 Rated Voltage 1200V DC
• OFF LOCKABLE
• Flame-Retardant
• Arcing Time < 3ms
• IEC60947*3
• 4Potes(Single/Double Strings Available)
• DC-21B:16A.25A.32A up to 1200V DC
|
Parameter
|
|
|
|
Etectrical Characteristics
|
|
|
|
Function
|
Isolator, Control
|
|
|
Comply with
|
IEC60947-3
|
|
|
Pole
|
4P
|
|
|
Max Rated Current
|
32A
|
|
|
Rated Working Voltage Ue
|
1200V DC
|
|
|
Rated Current In
|
16A/25A/32A
|
|
|
Rated Insulated Voltage Ui
|
1200V DC
|
|
|
Rated Impulsed Voltage Uimp
|
8KV
|
|
|
Service Life/Cycle Operation
|
10 years
|
|
|
Mechanical
|
20000
|
|
|
Electrical
|
2000
|
|
|
Installation Environment
|
Diversified
|
|
|
Size of Terminal Screw
|
M4
|
|
|
Tightening Torque
|
2.5
|
|
|
Maximum Cable Cross Sections
|
4-16
|
|
|
Ingress Protection
|
IP40
|
|
|
Storage Temperature
|
-5℃ ~ 80℃
|
|
