Kuickwheel Factory covers an area of 10,000 square meters, specializing in producing electric scooters, electric skateboards,hover boards, self-balancing scooters, and etc. High end and professional facilities are equipped to producing the best-qualityproducts.
- Product Details
- {{item.text}}
Quick Details
-
Max Speed:
-
30km/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kuickwheel
-
Model Number:
-
S1-C PRO
-

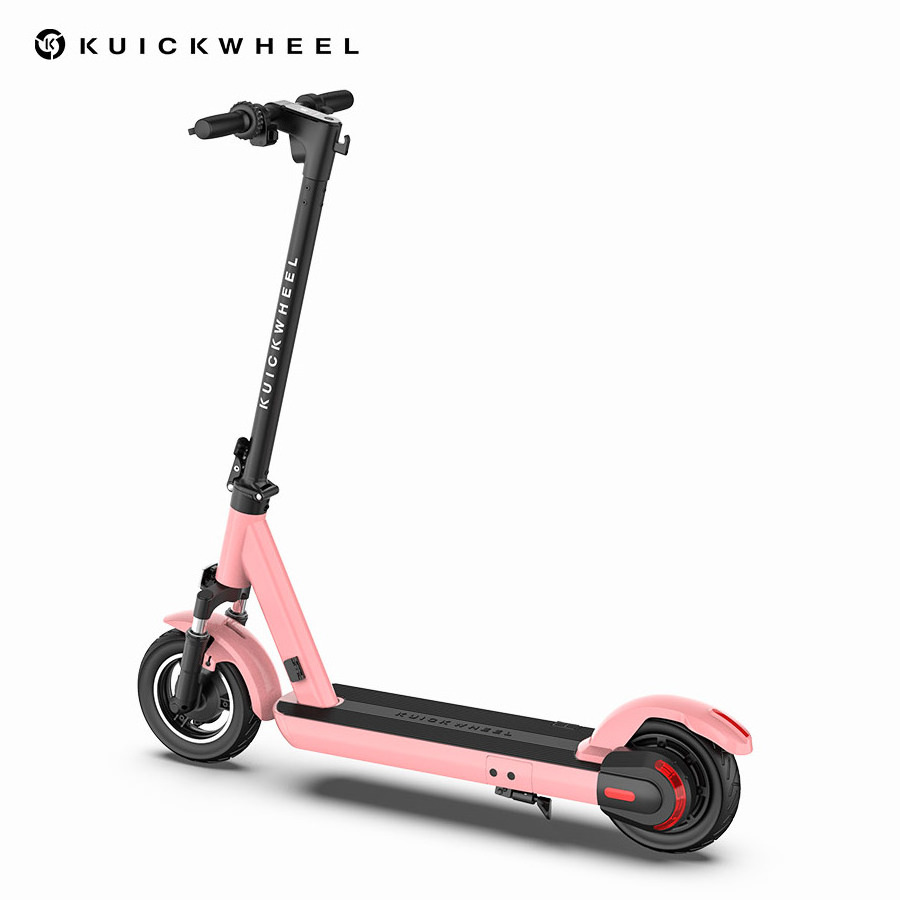

Product name:
-
Foldable Electric Scooter
-
Battery:
-
36V 13AH Lithium Battery
-
Motor power:
-
500W
-
Color:
-
Customized
-
Max load:
-
120kg
-
Brake:
-
Drum Brake+E-ABS
-
Tire:
-
10 Inch Pneumatic Tire
-
Suspension:
-
Dual Front Suspension
-
Light:
-
LED Headlight+Taillight
-
Display:
-
LED Digital Display
-
Certification:
-
CE
Quick Details
-
Voltage:
-
36V
-
Foldable:
-
Yes
-
Range Per Charge:
-
50km
-
Max Speed:
-
30km/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kuickwheel
-
Model Number:
-
S1-C PRO
-
Product name:
-
Foldable Electric Scooter
-
Battery:
-
36V 13AH Lithium Battery
-
Motor power:
-
500W
-
Color:
-
Customized
-
Max load:
-
120kg
-
Brake:
-
Drum Brake+E-ABS
-
Tire:
-
10 Inch Pneumatic Tire
-
Suspension:
-
Dual Front Suspension
-
Light:
-
LED Headlight+Taillight
-
Display:
-
LED Digital Display
-
Certification:
-
CE
EUROPEAN
WARHOUSE
FREE SHIPPING & TAX
RETAILERS WANTED
!
Know about us at www.kuickwheel.com
PRODUCT DESCRIPTION
SPECIFICATIONS
|
KUICKWHEEL SPECS SHEET
|
|
|
|
|||
|
General
|
Model
|
S1-C
|
S1-C PRO
|
|||
|
|
Dimension
|
Fold: 1155*455*625mm
Unfold: 1155*455*1195mm |
|
|||
|
|
N.W.
|
22KG
|
22KG
|
|||
|
Parameters
|
Max. Payload
|
120 KG
|
|
|||
|
|
Mileage
|
30KM
|
50KM
|
|||
|
|
Max. Speed
|
35KM/H
|
|
|||
|
|
Max. Slope
|
21%
|
24%
|
|||
|
|
Charging Duration
|
2.5-4.5 h
|
|
|||
|
Parts
|
Body Frame
|
Aluminum alloy Kuickwheel proprietory frame
|
|
|||
|
|
Suspension
|
Dual front suspension
|
|
|||
|
|
Dashboard
|
LED dashboard
|
|
|||
|
|
Braking
|
Front drum brake & Rear E-ABS
|
|
|||
|
|
Tires
|
10-inch front and rear pneumatic tires
|
|
|||
|
|
Front Light
|
1.1W built-in LED front light
|
|
|||
|
|
Rear/Braking Light
|
Dual LED rear light
|
|
|||
|
|
Bell
|
Integrated rotary bell
|
|
|||
|
|
Grip
|
TPE integrated grips
|
|
|||
|
|
Kickstand
|
Left side kickstand
|
|
|||
|
Rider
|
Recommended Age
|
14~50 years old
|
|
|||
|
|
Required Height
|
3'11"-6'6" (120-200 cm)
|
|
|||
|
Motor
|
Nominal Power
|
350W
|
500W
|
|||
|
|
Max. Power
|
600W
|
750W
|
|||
|
Battery
|
Battery
|
7800mAh
|
13000mAh
|
|||
|
|
Nominal Voltage
|
36V DC
|
|
|||
|
|
Max. Charging Voltage
|
42V DC
|
|
|||
|
|
Nominal Capacity
|
280Wh
|
468Wh
|
|||
|
|
Charging Temperature
|
32~104ºF (0~40ºC)
|
|
|||
|
|
Battery Management System
|
Over heating,over current, over charge, over dis-charge and short circuit protection
|
|
|||
|
Charger
|
Output Power
|
84W
|
126W
|
|||
|
|
Input Voltage
|
100-240V ~ 50/60Hz
|
|
|||
|
|
Output Voltage
|
42V DC
|
|
|||
|
|
Output Current
|
2.0A
|
3.0A
|
|||
|
Features
|
IP Rating
|
IPX7
|
|
|||
|
|
NFC Unlocking
|
N/A
|
YES
|
|||
|
|
Riding Modes
|
Energy Saving / Standard / Sport
|
|
|||
|
|
Folding
|
3-Sec Floding Mechanism
|
|
|||
|
|
Turn Signals
|
N/A
|
YES
|
|||
|
Standards&Certifications
|
|
CE / ROHS
|
|
|||
KUICKWHEEL LAB & TESTING
INSIDE KUICKWHEEL
COMPANY PROFILE / FACTORY
Founded in 2014, Kuickwheel Technology is a Chinese provincial high-tech enterprise that provides customers with one-stop shared travel service solutions and customized needs, including vehicle design, motor algorithm, IoT design, APP development management. Our products are sold to more than 100 countries and regions.
TEAMS
Kuickwheel Technology has a complete
team structure of R&D, sales, marketing, sourcing, production, quality assurance, and logistics, providing customers with a whole set of professional services.
Over 1/3 associates are in R&D deparment, which continuously contributes to our great products.
AWARDS
Kuickwheel Technology has more than 100 hundred national patents, and has also won many international awards, including IF Design Award, Audi Innovation Lab Champion, Red Star Design Award, “Looking for Unicorns” – Global Championship, and “Beauty Made in China” – Silver Award.
CERTIFICATES
In order to meet the various needs of different customers around the world, we have passed a number of internationally renowned certifications, including CE / ISO / ABE (eKFV) / RoHS / CNAS / UL, to ensure that our products meet the laws and regulations of different regions.
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2014,sell to Domestic Market(54.39%),Western Europe(30.38%),North
America(9.52%),Eastern Asia(3.81%),Southeast Asia(1.27%),Eastern Europe(0.63%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Electric Scooter,Kickscooter,IoT Module,Scooter OEM
4. Why should you buy from us not from other suppliers?
1. High-tech enterprise in China, with a 30+ people R&D team.
We are based in Jiangsu, China, start from 2014,sell to Domestic Market(54.39%),Western Europe(30.38%),North
America(9.52%),Eastern Asia(3.81%),Southeast Asia(1.27%),Eastern Europe(0.63%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Electric Scooter,Kickscooter,IoT Module,Scooter OEM
4. Why should you buy from us not from other suppliers?
1. High-tech enterprise in China, with a 30+ people R&D team.
2. 10,000 square meters factory equipped with high-end equipment.
3. Complete software and hardware product services
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union
3. Complete software and hardware product services
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union
