All Avant mini loaders have a hydrostatic drive system and a hydraulic drive motor on each wheel. The drive circuit is equipped
with valves for traction control in a variety of situations. To avoid damaging surfaces sensitive surfaces when turning, the the
wheels on the left and right sides of the loader roll at different speeds. This reduces tyre wear on hard surfaces.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Machine Weight:
-
733 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-

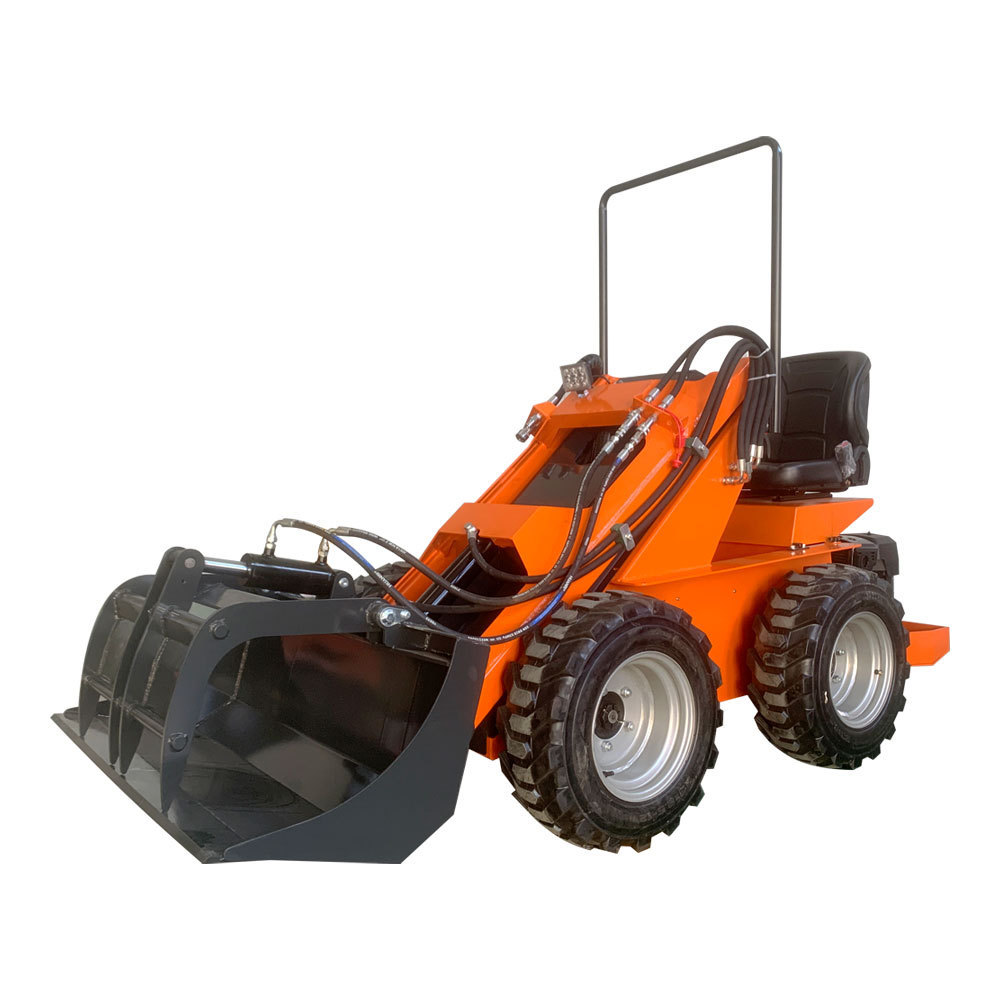

mini loader
-
Keyword:
-
Mini Loader Skid Steer
-
MOQ:
-
1 Unit
-
Length:
-
2640mm
-
Width:
-
1130mm
-
Height:
-
1730-2380mm
-
Standard Bob-weight:
-
25kg
-
Tipping load:
-
500kg
-
Drive motor:
-
Hydraulic
-
Oil cooler:
-
yes
Quick Details
-
Engine Brand:
-
lifan
-
Power:
-
Other
-
Brand Name:
-
RIMA
-
Place of Origin:
-
Shandong, China
-
Machine Weight:
-
733 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
mini loader
-
Keyword:
-
Mini Loader Skid Steer
-
MOQ:
-
1 Unit
-
Length:
-
2640mm
-
Width:
-
1130mm
-
Height:
-
1730-2380mm
-
Standard Bob-weight:
-
25kg
-
Tipping load:
-
500kg
-
Drive motor:
-
Hydraulic
-
Oil cooler:
-
yes
Product Description
1.
Mini Wheel Skid Steer Loaders are sold in more than 200 countries around the world,
The quality is much higher than other suppliers in the same industry.
2.
Feature rich!
3.
Powerful!
4.
A variety of accessories can be replaced! Full hydraulic control system!
5.
The latest design in 2023!
Product Parameters
|
Model
|
RL500/15
|
RL500/24
|
|
Engine
|
Petrol, LIFAN, 15HP, 10A
|
Petrol, LIFAN 24HP
|
|
|
Petrol, KOHLER,14HP (Optional)
|
Petrol, HONDA GX630 (Optional)
|
|
Length
|
2640mm
|
2640mm
|
|
Width
|
1130mm
|
1130mm
|
|
Height
|
1730-2380mm
|
1730-2380mm
|
|
Standard Bob-weight
|
25kg
|
25kg
|
|
Tipping load
|
500kg
|
500kg
|
|
Optimal lifting capacity with bucket
|
300kg
|
300kg
|
|
Optimal lifting capacity without bucket
|
360kg
|
360kg
|
|
High speed
|
0-6km/h
|
0-6km/h
|
|
Low speed
|
0-3km/h
|
0-3km/h
|
|
Hydraulic flow on low speed
|
20L/min
|
20L/min
|
|
Hydraulic flow on high speed
|
40L/min
|
40L/min
|
|
Transmission drive
|
4-WD
|
4-WD
|
|
Drive motor
|
Hydraulic
|
Hydraulic
|
|
Pulling force
|
650kg
|
650kg
|
|
Working pressure
|
19Mpa
|
21Mpa
|
|
Oil cooler
|
Yes
|
Yes
|
|
Hydraulic tank capacity
|
32L
|
32L
|
|
Bucket width
|
1130mm
|
1130mm
|
|
Standard bucket weight
|
61kg
|
61kg
|
|
Wheel
|
23x8.5-12
|
23x8.5-12
|
|
Wheel-base
|
900mm
|
900mm
|
|
Ground clearance
|
200mm
|
200mm
|
|
Loader weight without bucket
|
733kg
|
763kg
|
|
Packing size without bucket
|
2250×900×1260mm
|
2250×900×1260mm
|
|
Bucket packing size
|
1200×800×350mm
|
1200×800×350mm
|
Detailed images
4-Wheel Drive
Powerful lifting
The compact size still retains a powerful lifting capacity.
Compact size
Mini loaders are compact and agile for moving around sites and hard to access areas. They can easily be transported between job
sites on a trailer or truck
Compact size
Mini loaders are compact and agile for moving around sites and hard to access areas. They can easily be transported between job
sites on a trailer or truck
