Quick Details
-
Item No.:
-
Z-ERG-20
-
Total stroke:
-
20mm (adjustable)
-
Clamping Force:
-
30-100N (adjustable)
-
Repeatability:
-
0.2mm
-
Rotating Max. Torque:
-
1.5Nm
-
One-way Movement Time:
-
0.3s
-
Rotating Max. Speed:
-
180RPM
-
Rotating Backlash:
-
±1°
-
Dimensions:
-
65*65*184mm
-
Motor Type:
-
Brushless DC motor
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hitbot
-
Weight (KG):
-
1
-
Item No.:
-
Z-ERG-20
-
Total stroke:
-
20mm (adjustable)
-
Clamping Force:
-
30-100N (adjustable)
-
Repeatability:
-
0.2mm
-
Rotating Max. Torque:
-
1.5Nm
-
One-way Movement Time:
-
0.3s
-
Rotating Max. Speed:
-
180RPM
-
Rotating Backlash:
-
±1°
-
Dimensions:
-
65*65*184mm
-
Motor Type:
-
Brushless DC motor

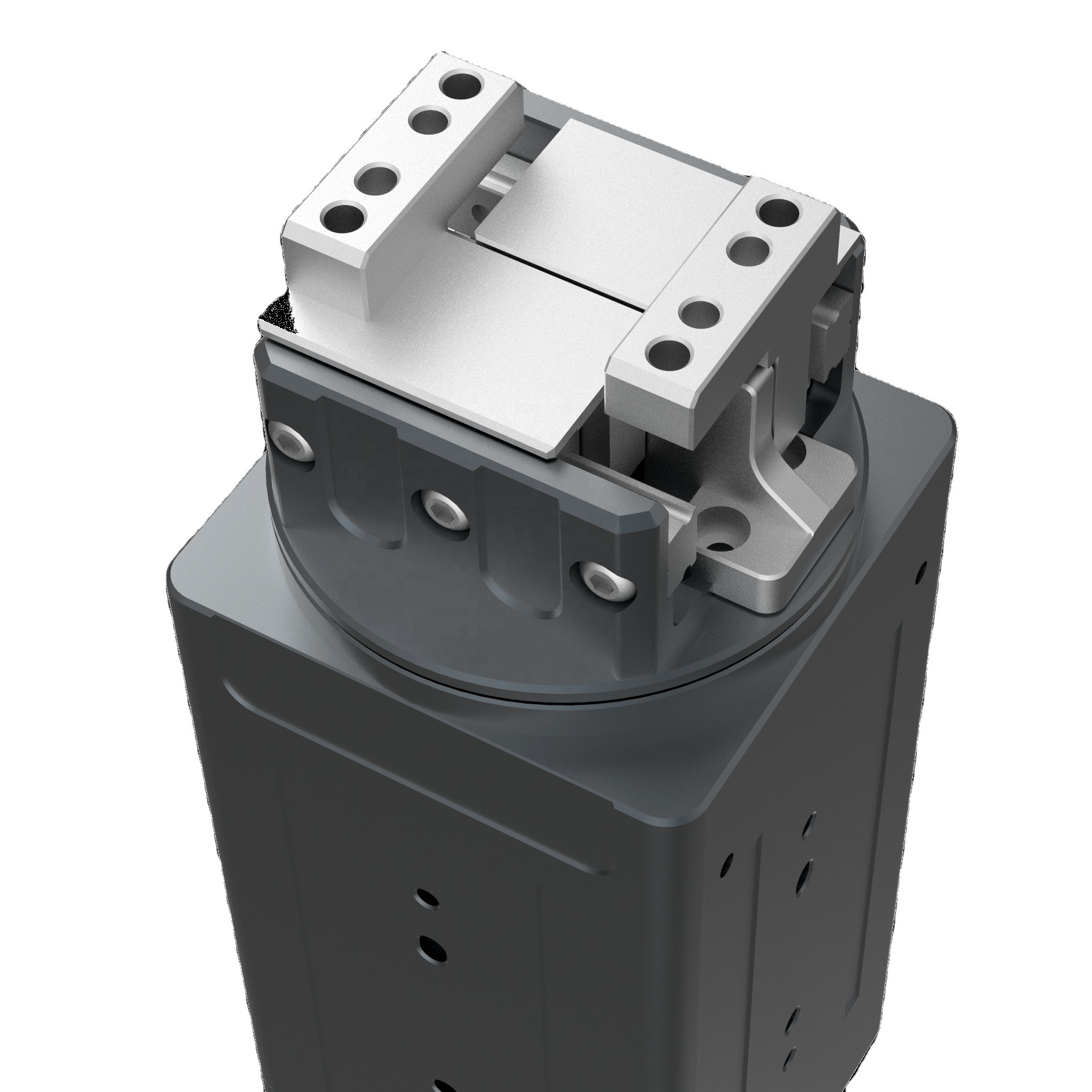

Product Display
Product Paramenters
|
Item
|
Value
|
|
|
Item No.
|
Z-ERG-20-100S
|
|
|
Total Stroke
|
20mm
|
|
|
Repeatability
|
±0.2mm
|
|
|
Clamping Force
|
30-100N （adjustable)
|
|
|
Suggestion Clamping Weight
|
≤ 1.0kg
|
|
|
Transmission Type
|
Rack and pinion + Linear Guid
|
|
|
One-way Stroke Motion Time
|
0.3s
|
|
|
The Max Rotation Torque
|
1.5NM
|
|
|
The Max Rotation Speed
|
180RPM
|
|
|
Rotation Ranging
|
Infinite Rotation
|
|
|
Rotation Backlash
|
±1°
|
|
|
Motor Type
|
Servo Motor
|
|
|
Product Weight
|
1.2KG
|
|
|
Product Size
|
54*54*170mm
|
|
|
Work Voltage
|
24V ±10%
|
|
|
Rated Current
|
2.0A
|
|
|
Max Current
|
4A
|
|
|
Protection Grade
|
IP40
|
|
|
Work Temperature
|
5-55℃
|
|
|
Work Humidity
|
RH35-80 (No Frost)
|
|
