Quick Details
-
Color Temperature(CCT):
-
NO
-
CRI (Ra>):
-
NA
-
Lamp Luminous Efficiency(lm/w):
-
NA
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20-45℃
-
Length:
-
customized length
-
Style:
-
classic style
-
Item type:
-
Warning light led
-
Light source:
-
SMD3528,1-4W
-
Voltage:
-
12V/24V/220V
-
Lifespan of source:
-
50000hrs
-
Beam angle:
-
360degrees
-
Light-emitting color:
-
Red,Green,Yellow,Blue,White.
-
Layer:
-
Multilayer multi-function
-
Installation:
-
Collapsible type/Stem-disc type/L-plate type/Pole type;
-
Certificate:
-
CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ONN
-
Model Number:
-
M4
-
Color Temperature(CCT):
-
NO
-
CRI (Ra>):
-
NA
-
Lamp Luminous Efficiency(lm/w):
-
NA
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20-45℃
-
Length:
-
customized length
-
Style:
-
classic style
-
Item type:
-
Warning light led
-
Light source:
-
SMD3528,1-4W
-
Voltage:
-
12V/24V/220V
-
Lifespan of source:
-
50000hrs
-
Beam angle:
-
360degrees
-
Light-emitting color:
-
Red,Green,Yellow,Blue,White.
-
Layer:
-
Multilayer multi-function
-
Installation:
-
Collapsible type/Stem-disc type/L-plate type/Pole type;
-
Certificate:
-
CE

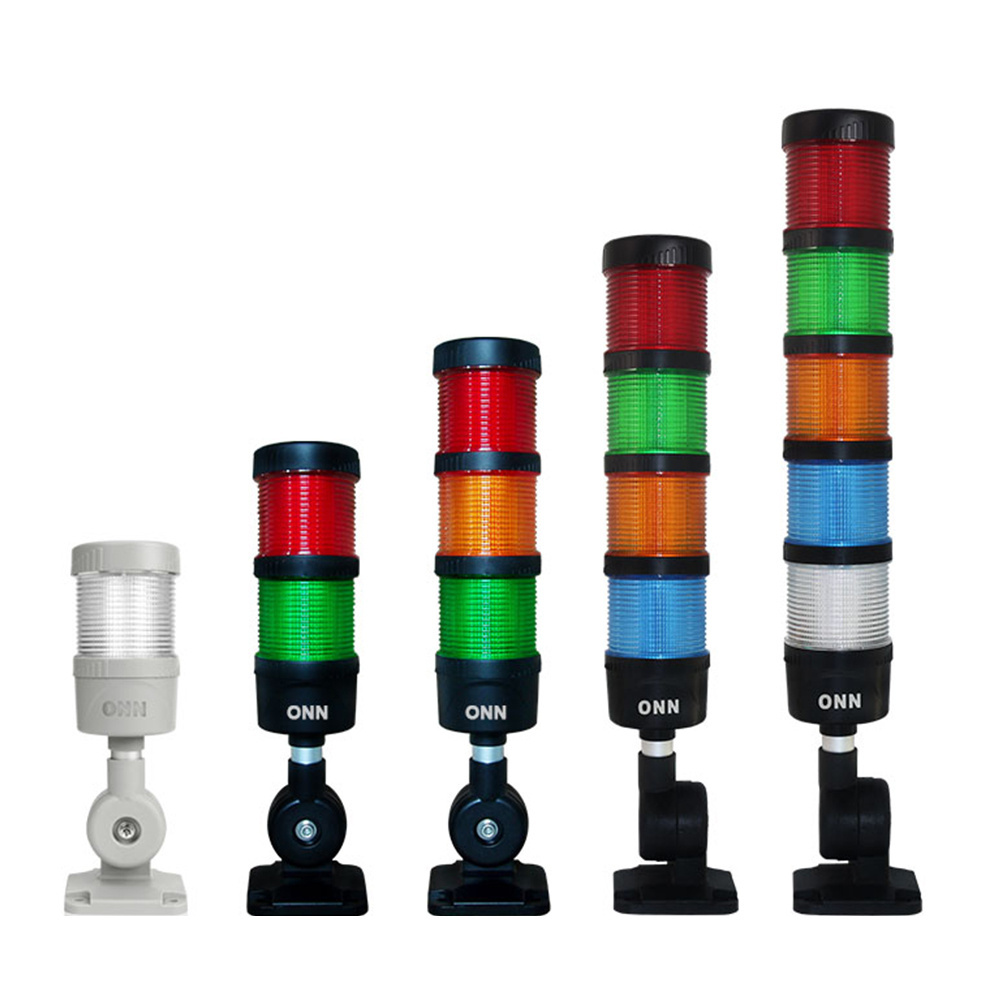

ONN-M4 series CE Approved Tri-color Led Signal Tower Light RYGBW 24V/220V stack light tower light
Product Description
Features
1.
Traditional design, multi-layer and multi-color available.
2. Buzzer optional, volume louder than 85dB.
3. High brightness LED chip, long lifetime and low decay.
4. Three kinds of base are available, easy to install.
5. Pole length can be customized.
Specifications
|
Power
|
1.4W for each color
|
|
Input voltage
|
DC12V, DC24V, AC100-240V(50/60Hz)
|
|
Current
|
60-70mA for each color
|
|
Working Temperature
|
-20~45℃
|
|
IP rating
|
IP53
|
|
Buzzer volume
|
>85dB
|
|
Material
|
PC lens and ABS body
|
|
Lifetime
|
50,000 hours
|
|
Installation
|
Fixed by screw or bracket
|
Ordering Code
|
ONN - M4
3
A
B
B
T
RYG
50S
|
|
|
|
1 2 3 4 5 6 7
|
|
|
|
1.Layer
|
1: Single layer, 2: Two layers, 3: Three layers
|
|
|
2. Mounting type
|
A: Foldable type, C: Pole and plate, E: L bracket
|
|
|
3. Voltage
|
B: DC24V, C: AC100-240V(50/60Hz)
|
|
|
4.Function
|
B: Steady, F: Steady with buzzer, S: Red flash,
C: Red flash with buzzer, D: All flash, E: All flash with buzzer |
|
|
5.Connect type
|
C: Contact type, T: PNP& NPN
|
|
|
6. Color
|
R: Red, Y: Yellow, G: Green
|
|
|
7. Diameter
|
50S: φ50mm
|
|
Product Size Drawing
Logo Print Service
Wiring Instruction
Application
CNC machine, Automatic equipment , SMT equipment etc.
