Product Name
|

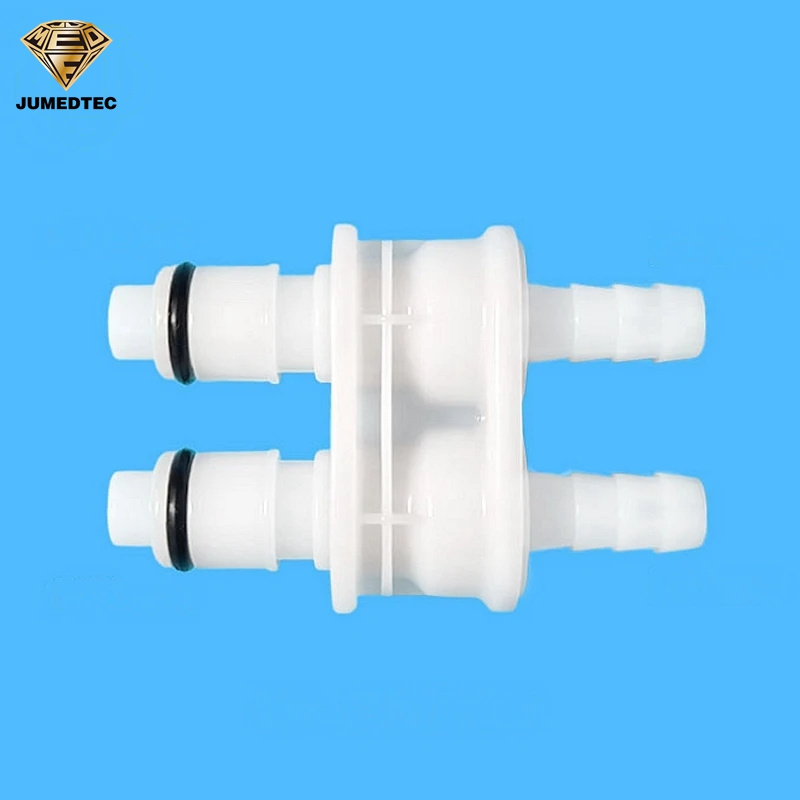

1/4" Acetal Shut Off In-Line Male Insert Quick Couplings Quick Disconnect Breakaway Dual Port Couplings Double Hose Connector
|
|
|
|
|||
|
Model Name
|
Valved:
AP2MD22004, AP2MD22005, AP2MD22006
Non-Valved:
AP2M22004, AP2M22005, AP2M2006
|
|
|
|
|||
|
Material
|
POM (Acetal)
|
|
|
|
|||
|
Color
|
White or customized
|
|
|
|
|||
|
Port Size
|
1/4"(6.4mm), 5/16"(7.9mm), 3/8"(9.5mm)
|
|
|
|
|||
|
Shape Option
|
1/4" Flow Plastic Body Male Quick Connector
|
|
|
|
|||
|
Valve Spring
|
316 Stainless Steel
|
|
|
|
|||
|
Seal Ring Material
|
Buna-N/FKM/EPDM/Silicone rubber, depends on your usage
|
|
|
|
|||
|
Valve Option
|
Valved(shut off) or Non-valved (open through)
|
|
|
|
|||
|
Working Pressure
|
Vacuum to 120 psi, 8.3 bar
|
|
|
|
|||
|
Working Temperature
|
32°F - 160°F (0°C - 71°C)
|
|
|
|
|||
|
Technics
|
Injection molding
|
|
|
|
|||
|
Adapted Medium
|
Water, Gas, Air, Fuel, Liquid
|
|
|
|
|||
|
Application
|
Analysis, medical, biochemical, industrial, lab,food processing etc
|
|
|
|
|||
|
Barbed Hose ID
|
1/16" Flow Small Series:
1/16" =1.6mm (01); 1/8"= 3.2mm (02);
1/8" Flow Medium Series: 1/16"=1.6mm (01); 1/8"=3.2mm (02); 3/16"=4.8mm (03); 1/4"=6.4mm(04); 1/4" Flow Large Series: 1/4"=6.4mm (04); 5/16"=8mm (05); 3/8"=9.6mm (06); 1/4" Flow All Plastic Series: 1/8"=3.2mm(430); 1/4"=6.4mm(04); 5/16"=8mm (05); 3/8"=9.6mm (06); |
|
|
|
|||
