Quick Details
-
Productivity:
-
40m3/h
-
Place of Origin:
-
Hebei, China
-
Weight:
-
1000 kg
-
Dimension(L*W*H):
-
1400*700*1650mm
-

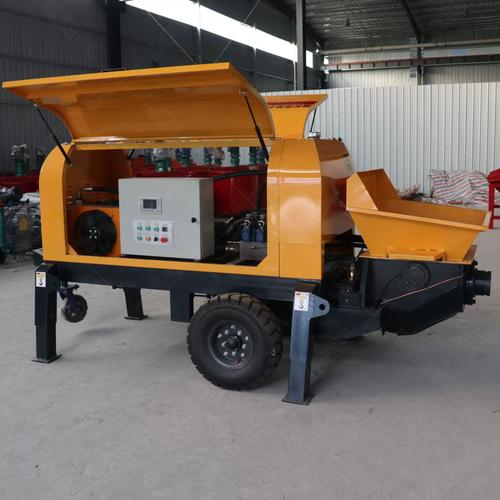

Product name:
-
Concrete Mixer Pump
-
Type:
-
Diesel Power
-
Color:
-
Customers' Requirement
-
Usage:
-
Construction Profiles
-
MOQ:
-
1
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
200M
-
Max. horizontal conveying distance:
-
600M
-
Productivity:
-
40m3/h
-
Place of Origin:
-
Hebei, China
-
Weight:
-
1000 kg
-
Dimension(L*W*H):
-
1400*700*1650mm
-
Product name:
-
Concrete Mixer Pump
-
Type:
-
Diesel Power
-
Color:
-
Customers' Requirement
-
Usage:
-
Construction Profiles
-
MOQ:
-
1
Products Description
This product is used for the transportation of mortar and fine aggregate concrete in high-rise buildings. Various types of secondary structural column grouting, pressure grouting for reservoirs, hydropower stations, port terminals, foundation treatment, soft foundation, reinforcement grouting, tunnels, etc. Backfilling grouting anchor rod support in subway and railway construction. This product adopts hydraulic feeding, and the vibrating screen filter with dual cylinder reciprocating operation can fully transport various types of mortar, fine aggregate concrete, etc. used in construction. This product has displacement capability. It has the characteristics of high pressure, labor-saving, material saving, and flexible movement. This is a principle. Think about mortar conveying equipment.
Product Details
1. Using advanced S-pipe valves to change direction can meet the transportation needs of fine aggregate concrete;
2. The glass plate and cutting ring are made of high hardness and wear-resistant alloy materials, with a longer service life;
3. Imported main oil pump with high outlet pressure can meet the transportation requirements of high-rise buildings and long-distance construction;
4. Hydraulic oil cooling adopts an air cooling system, which has a good cooling effect and is convenient to use;
5. Equipped with reverse pump function, it can minimize pipeline blockage to the greatest extent in the case of poor concrete slump;
6. Equipped with a centralized lubrication system to distribute lubricating oil to various parts to ensure the service life of rotating parts;
7. The electrical box adopts Mitsubishi Electric components and is equipped with a wireless remote control handle, which is stable and easy to operate.
Product display
|
OEM/ODM
|
Transportation time：10-30days
|
