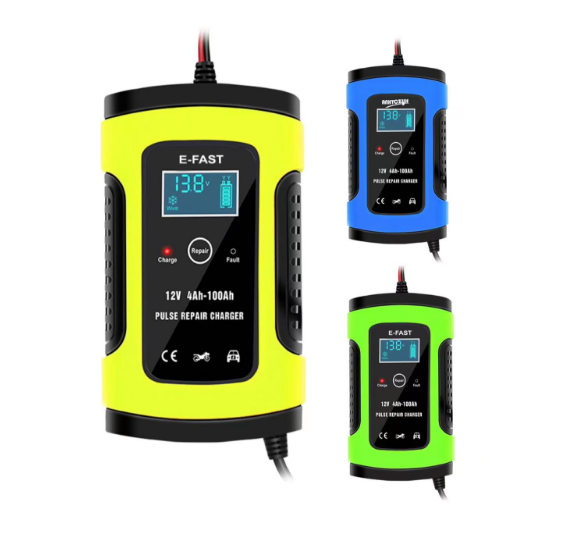

E-FAST 12V Intelligent Pulse Repair Battery Charger 12v 6A lead acid car battery charger for 4-100ah Battery Pack

E-FAST 12V Intelligent Pulse Repair Battery Charger 12v 6A lead acid car battery charger for 4-100ah Battery Pack

FOB Reference Price: Get Latest Price

≥2 Pieces

US $7

≥999 Pieces

US $6.5

≥4999 Pieces

US $6

≥9999 Pieces

US $5.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: E-Fast

Model Number:: ZYX-J10

output voltage and current:: 12V/6A

Maximum Output Power:: 75W

Place of Origin:: Anhui, China

Brand:: E-fast

Model:: ZYX-J10

Input voltage:: 100-240VAC,50-60HZ

Output Voltage and Current:: 12v6a

apply to:: car,motorcycle,vans,AGM

Weight:: 0.48g

SIZE:: 150X85X60mm

Efficiency:: App.85%

Minimum start voltage:: 8.0V

Quick Details

Type:: Electric, CAR CHARGER, Fast Charger, Smart Battery Charger, Lead Acid battery charger

Port:: DC, AC

Function:: Car battery charger

Brand Name:: E-Fast

Model Number:: ZYX-J10

output voltage and current:: 12V/6A

Maximum Output Power:: 75W

Place of Origin:: Anhui, China

Brand:: E-fast

Model:: ZYX-J10

Input voltage:: 100-240VAC,50-60HZ

Output Voltage and Current:: 12v6a

apply to:: car,motorcycle,vans,AGM

Weight:: 0.48g

SIZE:: 150X85X60mm

Efficiency:: App.85%

Minimum start voltage:: 8.0V

Specification

Name:	E-FAST 12V Intelligent Pulse Repair Battery Charger 12v 6A lead acid car battery charger for 4-100ah Battery Pack
Mode:	ZYX-J10
Input Voltage:	100-240VAC(50/60Hz)
Input current:	1.2A（@100VAC）、0.5A（@240VAC）
Output Voltage:	DC6-15.5V
Output current:	6A（@DC12V，lead-acid battery）
Efficiency:	A:78.0%(@Input Voltage:110VAC、Output Voltage:14.0V，Output current:6A) B:82.4%(@Input Voltage:220VAC、Output Voltage:14.0V，Output current:6A)
Battery Type:	DC12V，lead-acid battery
Place of Origin:	China，Anhui
Protection:	-Polarity protection -Output short protection -Short circuit protection -Overvoltage protection -Overcurrent protection -Overheating protection -Reverse connection protection
Apply to:	car, motorcycles, vans, etc.
color:	Blue,Yellow,Green
weight:	0.380KG
Dismension:	L150H85W60mm

Details Images

Product Function Introduction

Hot selling E-FAST J10 12V6A Wet Dry lead acid battery charger 6A car battery charger For EU US UK AU Plug

(1) output short circuit, anti-reverse connection: the product has an output short circuit, reverse battery prompt (reverse connection 1-2S detection, detection of reverse connection reverse connection or short circuit when the LCD display "ERO", the detection process will not cause damage to the product because of reverse connection or short circuit), and reverse connection, after the microprocessor program processing, there will be no reverse connection sparking phenomenon occurs. (2) battery power detection: no access to AC input voltage, battery clamps clamped on the positive and negative ends of the battery (red positive and black negative), you can display the battery current and voltage parameters in time (digital tube display data: voltage and ambient temperature cycle display, power grid according to the detected data in the form of a percentage display, the first power 6S self-test waiting, 6S not to show the temperature, 6S to reach the temperature and voltage cycle display)

(3) winter and summer mode: during the charging process, detect the ambient temperature, timely adjustment of the product charging state to ensure battery life and charging safety, winter mode: LCD display snowflakes, summer mode: LCD display sun

(4) over-temperature protection: the product has over-temperature protection function, the product detects the temperature is too high, will start the over-temperature protection program, when the temperature returns to normal values, restore the initial charging state

(5) Overcharge protection: the product has an overcharge protection function to avoid overcharging resulting in a decline in battery life and to enhance the reliability of charging safety (maximum charging time default 15.5-16.0H)

(6) Charging voltage self-test: automatic self-test after the battery is charged, without artificial switching, the self-test passes into the floating charge, and vice versa into the compensation charge, the compensation charge is completed into the floating charge

(7) LCD display status. a: full state: LCD display "FUL", power grid "100%" e: charging status: LCD cycle display voltage, current, temperature, power grid "charging special effects display" f: repair mode: LCD display "PUL", power grid "repair effect display", repair icon flashing g: no-load battery detection: LCD cycle display voltage, temperature, power grid according to the battery power in the form of percentage display .

Charging steps

Charging Steps

(1) detect the state of the battery before charging, the output alligator clips on both ends of the battery, red positive and
black negative, with LCD display data (power on 6S self-test, 6S after the temperature and voltage cycle display, self-test before the display temperature), this step must ensure that AC power is not connected, only AC power disconnected before operation.

(2) The charger AC input line into the plug, and then open the plug switch.
(3) mode selection (if the key after 30S self-locking, please remove any alligator clips, with LCD display OFF, key unlock,confirm good mode, clip on the alligator clips), and then charging.
(4) When the charger shows "FUL" or "End", it means that the charging or repair mode is over, disconnect the AC input at this time
and observe the battery capacity status after 10S (LCD cycle shows voltage and temperature, the power grid shows the current
battery capacity), confirm full, disconnect the alligator clips from the battery.
