Quick Details
-
Material:
-
NBR
-
Color:
-
Black
-
Application:
-
Petroleum Base Hydraulic Fluids
-
Reinforcement:
-
High Tensile Steel Wire
-
Certification:
-
ISO9001:2008
-
Type:
-
Soft Hose
-
Size:
-
1/4"~2"
-
Cover:
-
Weather Resistant Synthetic Rubber
-
Product name:
-
Hydraulic Hose SAE100R6
-
Temperature:
-
-40 °c to +100 °c
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Transportide
-
Model Number:
-
SAE
-
Material:
-
NBR
-
Color:
-
Black
-
Application:
-
Petroleum Base Hydraulic Fluids
-
Reinforcement:
-
High Tensile Steel Wire
-
Certification:
-
ISO9001:2008
-
Type:
-
Soft Hose
-
Size:
-
1/4"~2"
-
Cover:
-
Weather Resistant Synthetic Rubber
-
Product name:
-
Hydraulic Hose SAE100R6
-
Temperature:
-
-40 °c to +100 °c

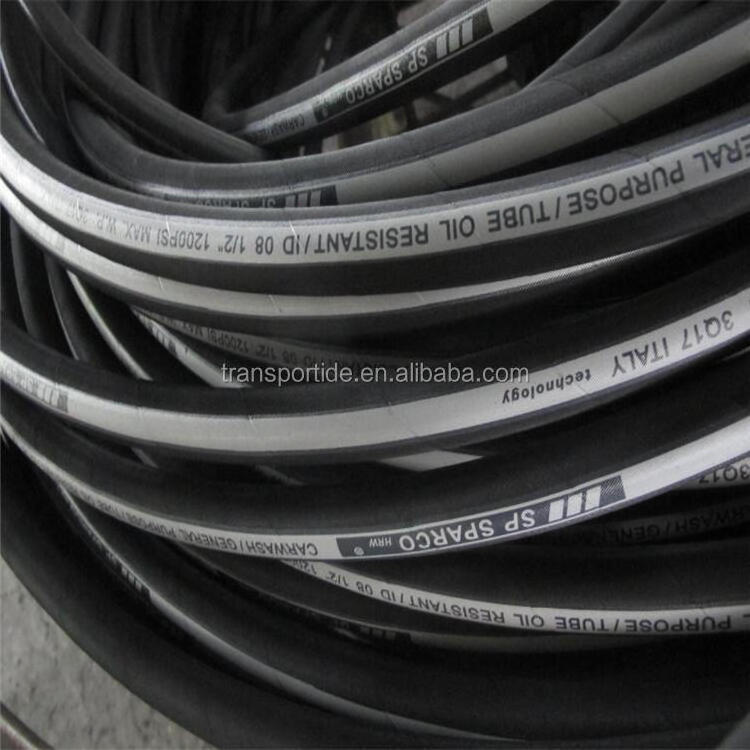

SAE100 Fiber Reinforced Hydraulic Industrial Rubber Hose R6
Tube: The inner tube is made of oil resistant synthetic rubber.
Reinforcement: One layer of suitable fiber.
Cover: Oil and weather resistant synthetic rubber.
Temperature: -40 °C to +100 °C (-40 °F to +212 °F).
|
SAE 100R6 Fiber Reinforced (Nonmetallic) Hydraulic Rubber Hose Technical Specification |
|||||||||||||
|
Size |
SAE Size |
I.D. |
O.D. |
Max. W.P. |
Proof Pressure P.P. |
Min. B.P. |
Min. B.R. |
Weight |
|||||
|
mm |
inch |
dash |
min. |
max. |
max. |
MPa |
psi |
MPa |
psi |
MPa |
psi |
mm |
kg/m |
|
5 |
3/16" |
-3 |
4.2 |
5.4 |
10.3 |
3.5 |
510 |
7 |
1015 |
14 |
2030 |
50 |
0.1 |
|
6.3 |
1/4" |
-4 |
5.6 |
7.2 |
11.9 |
2.8 |
410 |
5.6 |
810 |
11.2 |
1620 |
65 |
0.13 |
|
8 |
5/16" |
-5 |
7.2 |
8.8 |
13.5 |
2.8 |
410 |
5.6 |
810 |
11.2 |
1620 |
75 |
0.15 |
|
10 |
3/8" |
-6 |
8.7 |
10.3 |
15.1 |
2.8 |
410 |
5.6 |
810 |
11.2 |
1620 |
75 |
0.18 |
|
12.5 |
1/2" |
-8 |
11.9 |
13.5 |
19 |
2.8 |
410 |
5.6 |
810 |
11.2 |
1620 |
100 |
0.26 |
|
16 |
5/8" |
-10 |
15.1 |
16.7 |
22.2 |
2.4 |
350 |
4.8 |
710 |
9.8 |
1420 |
125 |
0.34 |
|
19 |
3/4" |
-12 |
18.3 |
19.9 |
25.4 |
2.1 |
310 |
4.2 |
610 |
8.4 |
1220 |
150 |
0.4 |
