Product name:
-
Double Diaphragm coupling
-
Keyword:
-
rigid coupling
-
Packing:
-
Carton or wooden box
-
MOQ:
-
2 pcs
-
Payment:
-
L/C Western Union T/T MoneyGram PayPal
Quick Details
-
Warranty:
-
1 years
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Other
-
Structure:
-
Universal
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Steel
-
Brand Name:
-
TIANNIU
-
Place of Origin:
-
Jiangsu, China
-
Product name:
-
Double Diaphragm coupling
-
Keyword:
-
rigid coupling
-
Packing:
-
Carton or wooden box
-
MOQ:
-
2 pcs
-
Payment:
-
L/C Western Union T/T MoneyGram PayPal
|
model parameter
|
common bore diameter d1,d2
|
ΦD
|
L
|
LF
|
LP
|
F
|
M
|
tightening screw torque
(N.M) |
|
GH-16X18
|
4,5,6,6.35,7,8
|
16
|
18
|
7.1
|
11.6
|
3.55
|
M3
|
0.7
|
|
GH-20X25
|
5,6,6.35,7,8,9,9.525
|
20
|
25
|
9.1
|
12.7
|
4.55
|
M4
|
1.7
|
|
GH-25X28
|
5,6,6.35,8,9,9.525,10,11,12,14
|
25
|
28
|
11.7
|
16.65
|
5.58
|
M4
|
1.7
|
|
GH-32x33
|
5,6,8,9,9.525,10,11,12,12.7,14,15,16
|
32
|
33
|
14
|
19.5
|
7
|
M4
|
1.7
|
|
GH-40X35
|
8,9,9.525,10,11,12,12.7,14,14,16,17,18,19,20
|
40
|
35
|
15.5
|
18.4
|
7.75
|
M4
|
1.7
|
|
GH-45X46
|
8,9,9.525,10,11,12.7,14,15,16,17,18,19,20,22
|
45
|
46
|
21.5
|
18.4
|
9
|
M5
|
4
|
|
GH-50X38
|
10,12,12.7,14,15,16,17,18,19,20,22,24,25
|
50
|
38
|
16.5
|
15
|
8.25
|
M5
|
4
|
|
GH-55X57
|
10,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32
|
55
|
57
|
27
|
17.5
|
10.5
|
M5
|
4
|
|
GH-63X47
|
14,15,16,17,18,19,20,22,24,25,28,30,32
|
63
|
47
|
21
|
17.5
|
10.5
|
M6
|
8.4
|
|
GH-70X77
|
16,17,18,19,20,22,24,25,28,30,32,38,40
|
70
|
77
|
36.5
|
25
|
13.5
|
M8
|
10.5
|
|
model parameter
|
Rated torque(N.m)
|
allowable eccentricity
(mm)
|
allowable deflection angle
(°)
|
allowable axial deviation
(mm)
|
maximum speed
(rpm)
|
static torsional stiffness
(N.M/rad)
|
weight
（g）
|
|
GH-16X18
|
0.7
|
0.8
|
3
|
±0.2
|
9000
|
30
|
6
|
|
GH-20X25
|
1.2
|
1.2
|
3
|
±0.2
|
7000
|
58
|
18
|
|
GH-25X28
|
2
|
1.6
|
3
|
±0.2
|
6000
|
130
|
25
|
|
GH-32x33
|
4.5
|
2
|
3
|
±0.2
|
4800
|
270
|
44
|
|
GH-40X35
|
9
|
2.4
|
3
|
±0.2
|
3600
|
520
|
81
|
|
GH-45X46
|
12
|
2.8
|
3
|
±0.2
|
3500
|
560
|
136
|
|
GH-50X38
|
19
|
2.6
|
3
|
±0.2
|
3000
|
800
|
142
|
|
GH-55X57
|
22
|
3.3
|
3
|
±0.2
|
2800
|
795
|
255
|
|
GH-63X47
|
19
|
3
|
3
|
±0.2
|
2500
|
1200
|
320
|
|
GH-70X77
|
56
|
3.8
|
3
|
±0.2
|
2500
|
1260
|
445
|
Product Features

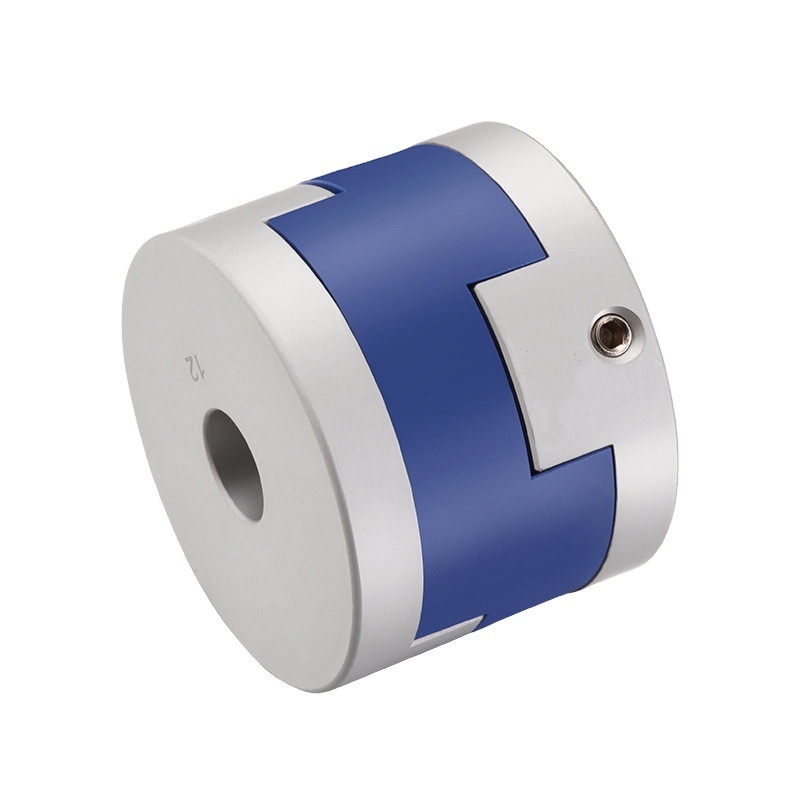

>The colloid material is imported PA66, which has good wear resistance, corrosion resistance and electrical insulation
>Sliding design can compensate radial and angular deviation more effectively
>Detachable design, easy to install
>Fastening method of clamping screw
>Sliding design can compensate radial and angular deviation more effectively
>Detachable design, easy to install
