Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Insight
-
Model Number:
-
STAR 20
-
MOQ:
-
1pc
-
Product Name:
-

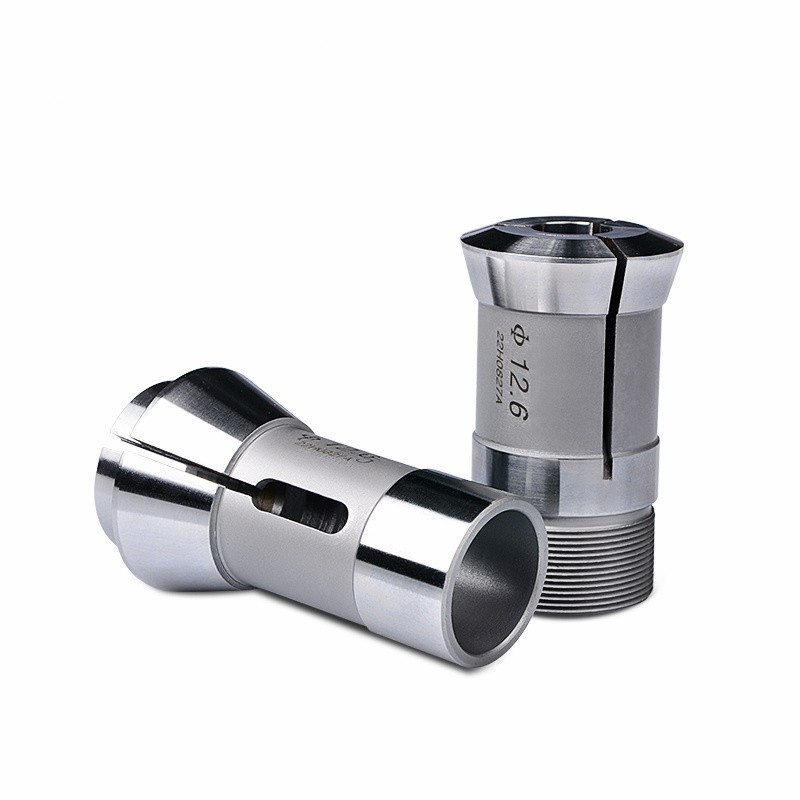

Swiss Lathe Collet
-
Model:
-
STAR 20
-
Package:
-
Plastic Box + Export Carton
-
Certification:
-
ISO9001:2015
-
Precision:
-
0.003-0.005
-
Type of collet chuck:
-
main collet/sub collet/guide bush
-
OEM/ODM:
-
available, can provide technical support
-
shape:
-
round, hex, square, rectangle
Quick Details
-
Number of Jaws:
-
3
-
Material:
-
Spring Steel, Solid Carbide, Spring Steel/solid carbide
-
Warranty:
-
1 month
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Insight
-
Model Number:
-
STAR 20
-
MOQ:
-
1pc
-
Product Name:
-
Swiss Lathe Collet
-
Model:
-
STAR 20
-
Package:
-
Plastic Box + Export Carton
-
Certification:
-
ISO9001:2015
-
Precision:
-
0.003-0.005
-
Type of collet chuck:
-
main collet/sub collet/guide bush
-
OEM/ODM:
-
available, can provide technical support
-
shape:
-
round, hex, square, rectangle
Product Description
A high quality collet is mostly important to achive a high accuracy requested in Swiss type lathes and precision machines.
We provide a full range of collets, most of types are available immediately from our stock.
We also provide service for non-standard bore sizes of steel or carbide collets, delivery time 5-7 days.
We produce some special execution, modification or custom made collets according to drawing.
We produce some special execution, modification or custom made collets according to drawing.
|
Machine Model
|
Main Collet
|
Guide Bush
|
Sub Collet
|
|
JNC16,RNC10/10B,SNC10DX
|
TF15
|
TD10
|
|
|
SH7
|
TF15
|
SW7
|
|
|
SR10J
|
TF15
|
TD10
|
TF15
|
|
SW7
|
TF15
|
SW7/TD10
|
TF15/TF10
|
|
SB12/12R,SW12RZ
|
TF18
|
SNC15
|
TF18
|
|
ECAS16,KJR16B,SA16,SB16,SR16,SV12,VNC12
|
TF20
|
TD20R
|
TF20
|
|
JNC16
|
TF20
|
TD20R/SNC15
|
|
|
RNC16/16B,SE16,SH16,SNC15DX
|
TF20
|
TD20R
|
|
|
SA12
|
TF20
|
SNC15
|
TF20
|
|
SH12,SE12
|
TF20
|
SNC15
|
|
|
Sl12
|
TF20
|
SNC15
|
TF15
|
|
SST16
|
TF20
|
TD20R
|
TF10-TF20
|
|
ECAS20,KNC16/20B,SW20,SR20,SV20
|
TF25
|
TD25S
|
TF25
|
|
VNC20
|
TF25
|
TD25S
|
TF20
|
|
SNC25DX
|
TF34
|
TD32S
|
CD25
|
|
ECAS32,KNC25/32B,SR32,SV32J
|
TF37
|
TD32S
|
TF37
|
|
STM32,JNC25/32
|
TF37
|
TD32S
|
|
|
VNC32
|
TF37
|
TD32S
|
TF30
|
|
SF25
|
TF37
|
0161
|
|
|
SG42
|
TF48
|
|
TF48
|
|
STM38
|
TF48
|
STM38
|
|
|
SV38R,ST38
|
TF48
|
STM38
|
TF48
|
|
MAF42
|
TF48
|
|
|
Specification
Properties and Application of Round Collet:
1. Material: Spring Steel / solid carbide
1. Material: Spring Steel / solid carbide
2. Hardness: clamping part - HRC 55-60, elastic part - HRC 43-48
3. For tools or workpieces with cylindrical shank
4. Used in automatic lathes and other machines in which the spindle is adapted for mounting DIN 6343 collets
5. Special flange fits perfectly into the machine's spindle narrowing hole to specific diameter 6. Properly cut grooves allow collet to work freely
Details Images
* Smooth bores for use on ground stock and small diameters
* Grooved bores designed for stronger gripping force
* Serrated bores to achieve maximum gripping force
* Grooved bores designed for stronger gripping force
* Serrated bores to achieve maximum gripping force
* Long Nose Collets offered in both straight and tapered style
* Over-grip/Step collets/Special profile bores manufactured per customer’s specifications
* V-line slots ideal for holding profiles other than round and additionally to help keep contamination out and prevent unwanted marks
* Brass guides to support small diameter material
* Over-grip/Step collets/Special profile bores manufactured per customer’s specifications
* V-line slots ideal for holding profiles other than round and additionally to help keep contamination out and prevent unwanted marks
* Brass guides to support small diameter material
