Quick Details
-
Max. Lifting Load:
-
Customized
-
Span:
-
10--40 M
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NYBON
-
Weight (KG):
-
20000 kg
-
Product Name:
-
Double Girder Bridge Overhead Lifting Crane 100ton 30ton
-
span:
-
10~40M or customizable
-
Lifting height:
-
10~30M or customizable
-
Working level:
-
A3~A4
-
Lifting speed:
-
3--8 M/min
-
Trolley running speed:
-
20 M/min
-
Running speed of cart:
-
20 m/min
-
Operation mode:
-
air operation, ground operation, remote control
-
Lifting Capacity:
-
5ton~320ton
-
Lifting mechanism:
-
Electric Winch Trolley
Quick Details
-
Max. Lifting Height:
-
10--30 m, Customized
-
Marketing Type:
-
New Product 2023
-
Rated Lifting Moment:
-
/
-
Max. Lifting Load:
-
Customized
-
Span:
-
10--40 M
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NYBON
-
Weight (KG):
-
20000 kg
-
Product Name:
-
Double Girder Bridge Overhead Lifting Crane 100ton 30ton
-
span:
-
10~40M or customizable
-
Lifting height:
-
10~30M or customizable
-
Working level:
-
A3~A4
-
Lifting speed:
-
3--8 M/min
-
Trolley running speed:
-
20 M/min
-
Running speed of cart:
-
20 m/min
-
Operation mode:
-
air operation, ground operation, remote control
-
Lifting Capacity:
-
5ton~320ton
-
Lifting mechanism:
-
Electric Winch Trolley

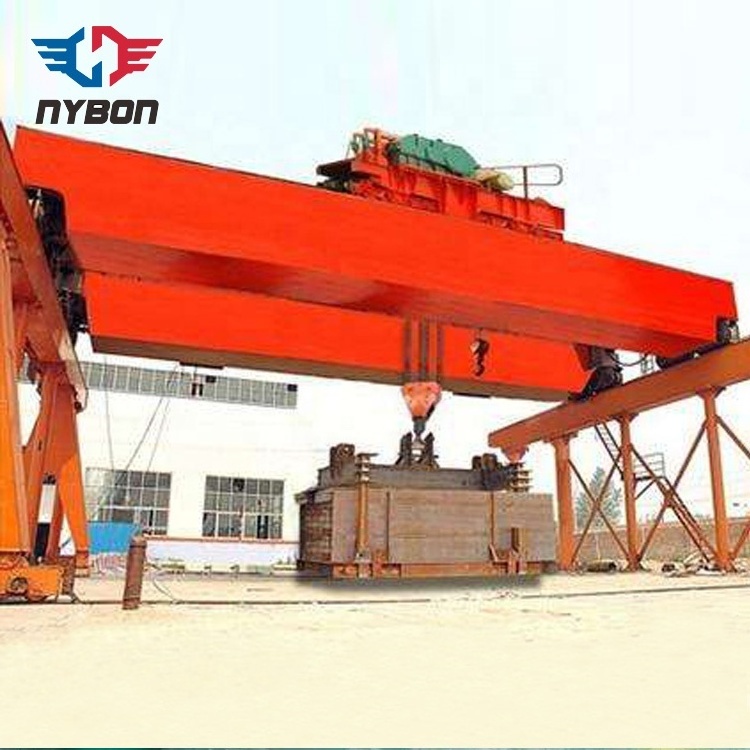

Industrial Used Double Girder Bridge Overhead Lifting Crane 100ton 30ton
Double Beams Overhead Crane
is consisting of the beam, lifting mechanism, trolley travelling mechanism, crane travelling mechanism, cabin or hand controller,and electrical control system. Trolley can move horizontally on the rail .This type crane holds many characters of light structure, easy to install and maintain, which is typically used for either manufacturing or maintenance applications, where efficiency or downtime are critical factors, for instance, plants, warehouses, or material stocks.
The beam adopts the whole type without welding, which structure is more reasonable and reliable.Cabin, radio controller or hand controller can be used for operating. The cabin has seats inside.Floor adopts insulation pads and toughened glass for windows; extinguisher and fanareequipped. Otheraccessory equipments like air-condition, buzzer, interphone can be configured according to our client’s request!
The travelling motor can be standard motor, soft start motor or work with frequency controller to meet the different speed
requirements.
requirements.
Parts show:
China steel overhead crane supplier double girder bridge crane is consisting of main girder, end beam, electric Trolley, long
travelling mechanism, Crane Hook, cabin or hand controller, electrical control system, Remote Control, etc.
China steel overhead crane supplier double girder bridge crane is consisting of main girder, end beam, electric Trolley, long
travelling mechanism, Crane Hook, cabin or hand controller, electrical control system, Remote Control, etc.
Technical Parameter
|
Lifting Capacity
|
|
|
T
|
5
|
10
|
16/3.2
|
20/5
|
32/5
|
50/10
|
|||||||||
|
Span
|
|
|
m
|
10.5-31.5
|
|
|
|
|
|
|||||||||
|
Speed
|
Main Hook Lifting
|
A5
|
m/min
|
11.3
|
8.5
|
7.9
|
7.2
|
7.5
|
5.9
|
|||||||||
|
|
|
A6
|
|
15.6
|
13.3
|
13
|
12.3
|
9.5
|
7.8
|
|||||||||
|
|
Aux. Hook Lifting
|
|
|
|
|
16.7
|
19.5
|
19.5
|
10.4
|
|||||||||
|
|
Traveling of Trolley
|
|
|
37.2
|
43.8
|
44.6
|
44.6
|
42.4
|
38.5
|
|||||||||
|
|
|
A5
|
|
89.8/91.8
|
90.7/91.9
/84.7
|
84.7/87.6
|
84.7/87.6
|
87/74.2
|
74.6
|
|||||||||
|
|
|
A6
|
|
92.7/93.7
|
115.6/116
/112.5
|
112.5/101.4
|
112.5/101.4
|
101.4/101.8
|
75/76.6
|
|||||||||
|
Operational Model
|
|
|
|
Cabin; remote control; ground handle
|
|
|
|
|
|
|||||||||
|
Working Duty
|
|
|
|
A5/A6/A7/A8
|
|
|
|
|
|
|||||||||
|
Power Supply
|
|
|
|
Three-phase A.C. 380V, 50Hz or customized
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
||||||||||
