Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300X900mm
-
Cutting Thickness:
-
0-30mm (acrylic)
-
Control Software:
-
CorelDraw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
xm
-
Weight (KG):
-
410 KG
-
Core Components:
-
laser source
-
After-sales Service Provided:
-
No overseas service provided
-
Color:
-
Request
-
Worktable:
-
honeycomb or blade
-
Engraving Speed:
-
60000mm/min
-
Engraving Depth:
-
5mm
-
Up and down work table:
-
Ec Up and down 550mm adjustable
-
Minimum Shaping Character:
-
1 X 1mm
-
Resolution Ratio:
-
0.0254mm (1000dpi)
-
Power Supply:
-
220V(or110V)+/-10% 50Hz
-
Resetting Positioning:
-
Accuracy less than or equal to 0.01mm
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-5000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300X900mm
-
Cutting Thickness:
-
0-30mm (acrylic)
-
Control Software:
-
CorelDraw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
xm
-
Weight (KG):
-
410 KG
-
Core Components:
-
laser source
-
After-sales Service Provided:
-
No overseas service provided
-
Color:
-
Request
-
Worktable:
-
honeycomb or blade
-
Engraving Speed:
-
60000mm/min
-
Engraving Depth:
-
5mm
-
Up and down work table:
-
Ec Up and down 550mm adjustable
-
Minimum Shaping Character:
-
1 X 1mm
-
Resolution Ratio:
-
0.0254mm (1000dpi)
-
Power Supply:
-
220V(or110V)+/-10% 50Hz
-
Resetting Positioning:
-
Accuracy less than or equal to 0.01mm

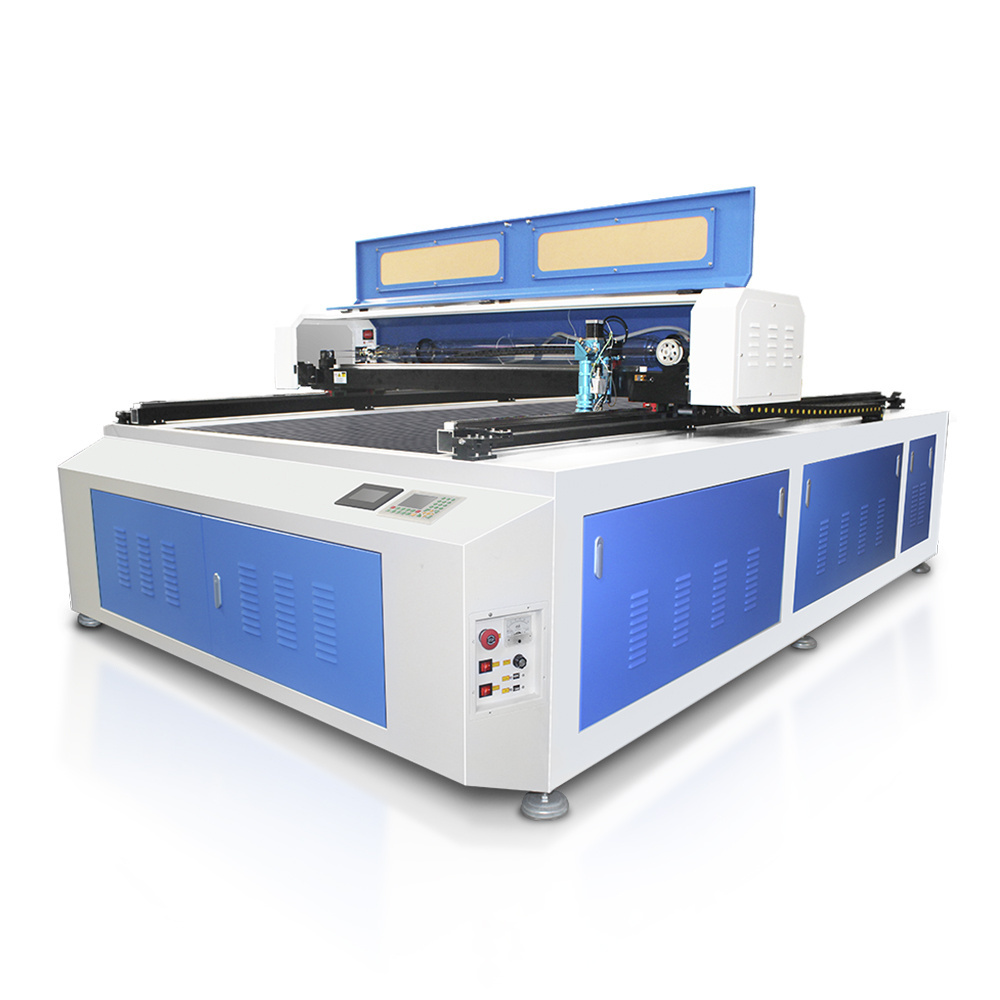

1325 MIXED CUTTING MACHINE
Our Advantages
1.Mix Cutting: lt supports both Metal and Non-Metal Cutting, can cut stainlesssteel, carbon steel, mild steel, also can cut acrylic, wood, MDF, PVC board,paper, fabric, etc.
2.Adopt 150w / 180w / 260w / 300w Laser Tube, high power.
3.Dynamic Auto-Focusing Metal Sheet Laser Cutting Head: When the metasheet is not plain, the dynamic focus laser cutting head can adjust thefocusing distance automatically.
4.Advanced LCD Touch Screen+ USB port+ DSP Offline Control: which can notonly work without computer, but also connect to U disk, USB communication.
5.Matched Professional cutting software: MetalCut, is particularly desiqnedand written for both metal and non-metallic cutting, with high compatibilitysupport Windows operating system.
Details Images
Products Description
Product Paramenters
|
Machine description:
|
FST-1325 Laser Machine
|
|
Work area size
|
1300*2500mm
|
|
Laser type:
|
Hermetic and detached CO2 laser tube
|
|
Laser power:
|
150w/180w/220w/300w
|
|
Cooling mode:
|
Circulating-water-cooling
|
|
Power adjustment:
|
0-100% controlling, no segment and adjusting by software
|
|
Machine control and drive:
|
Speedy DSP controlling, stepper motor
|
|
Max engraving speed:
|
60000mm/min
|
|
Max cutting speed:
|
50000mm/min
|
|
Repeating location:
|
0.01mm
|
|
Minimum character:
|
Chinese character: 1.5mm; crisscross-row: 1mm
|
|
Working voltage:
|
AC220V 50Hz / 110V 60Hz
|
|
Working environment:
|
Temperature: 0-45℃, Humidity: 5%-95%, and congeal-water removed
|
|
Controlling software language:
|
English, Chinese
|
|
Dictate format:
|
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support AutoCAD,CoreDraw direct outputting
|
Product Acessories
Therefore, if you cut non-metals most of the time, and the time forcutting metals is not much, the precision requirements for cuttingmetals are not very high, and the budget is limited, we recommendthat you choose the co2 mixed cutting machine, which is verysuitable.
lf you cut a large amount of metal, the cutting work is busy, or youneed to cut high reflective materials such as aluminum and copper,or the thickness of the cut metal exceeds 3mm, we stronglyrecommend that you choose a fiber laser cutting machine.
Application
Product packaging
Certifications
FAQ
1.How can I choose the most suitable machine?
Please tell us three questions, our customer service staff will recommend the most suitable product for you.
1) which material is mainly used for? Cutting, engraving or marking?
2) what is the max thickness of the cut?
3)How big working area you need?
2.How long can deliver the machine?
Common machine can be delivered within 3~7 days.Custom-made machine needs 12~14 days.
3.Is there any after-sales service?
Yes, we have a perfect after-sale service team to supply technical support toour customers.
Our technicians can assist you to install the machine and give you free training after you receive machine.
