Quick Details
-
Weight:
-
2350 KG, 2350 kg
-
Product name:
-
Boom sprayer
-
Type:
-
Self-propelled
-
Tank capacity:
-
1200L
-
Spraying width:
-
Spraying width
-
Ground clearance:
-
Ground clearance
-
Nozzle qty:
-
28pcs
-
Wheel diameter:
-
Wheel diameter
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VOLUN
-
Diameter:
-
1600 cm
-
Weight:
-
2350 KG, 2350 kg
-
Product name:
-
Boom sprayer
-
Type:
-
Self-propelled
-
Tank capacity:
-
1200L
-
Spraying width:
-
Spraying width
-
Ground clearance:
-
Ground clearance
-
Nozzle qty:
-
28pcs
-
Wheel diameter:
-
Wheel diameter
Diesel Motorized Agricultural Pesticide Sprayer Agricultural Boom Sprayer for insecticide and fertilization
Product description:
Self-propelled agriculture boom sprayer has good performance and high efficiency. It can be controlled the pests of early, middle and late for a variety of crops. The sprayer focused on wheat, corn, rice, soybeans, cotton, tobacco, vegetables, sugar cane, sorghum, potatoes and other crops pre-disease prevention and control of spraying and field management operations. Can effectively carry out large-scale spraying of crops, flexible and convenient handling.
Features:
1. electric boom, gentle manipulation, simple and convenient.
2. The four-wheel steering, steering convenient, less pressure seedlings, less money, unique system, 5 minutes straightening.
3. Can be installed fertilization ,lift fertilizer spreader, convenient plus fertilizer, manure spreaders evenly.
4. Unique in-gear mechanism, convenient and easy to operate.
5. Loader Frame , Hydraulic system , strong anti-sabotage, durable.
|
Model |
3VLJZ- 7 00 K |
3VLJZ-1000 K |
3VLJZ-1000 J |
|
Product name |
self-propelled boom sprayer |
||
|
W ork pressure |
0.2-0.5Mpa |
0.2-0.5Mpa |
0.3-0.9Mpa |
|
Medicine box volume |
700L |
1000L |
1200L |
|
Spray width |
11500 |
1500mm |
1600mm |
|
Spray height |
500-1800mm |
500-1800mm |
500-3000mm |
|
Min . ground clearance |
1050mm |
1010mm |
2100mm |
|
Wheelbase |
1520mm |
1805mm |
1950-2600mm |
|
Boom structure |
Hydraulic automatic folding, automatic balancing |
||
|
Matche power |
50hp diesel engine |
50hp diesel engine |
55hp diesel engine |
|
Driven type |
four-wheel drive |
four-wheel drive |
four-wheel drive |
|
Dimension(mm) |
4860x2010x2980 |
5 84 0 x 2 10 0 x 3 18 0 |
4900x2400x3200 |

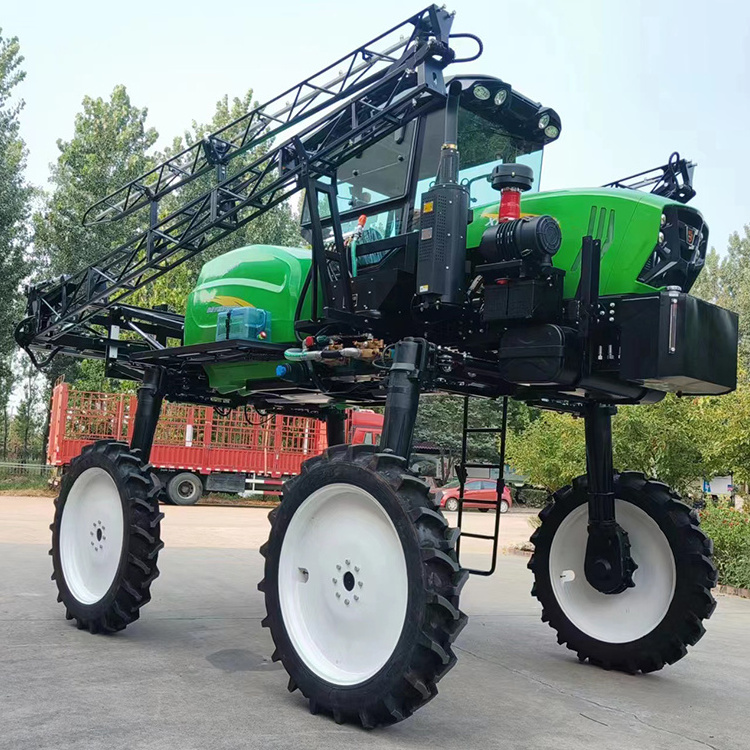

More machine pictures of self-propelled boom sprayer
Details pictures of boom sprayer
