Quick Details
-
Brand Name:
-
EG
-
Surface Treatment:
-
Smooth/Matted/Anti-slip/3k
-
color:
-
black
-
Type:
-
carbon fibre stick
Quick Details
-
Application:
-
construction
-
Technique:
-
pultrusion
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EG
-
Surface Treatment:
-
Smooth/Matted/Anti-slip/3k
-
color:
-
black
-
Type:
-
carbon fibre stick

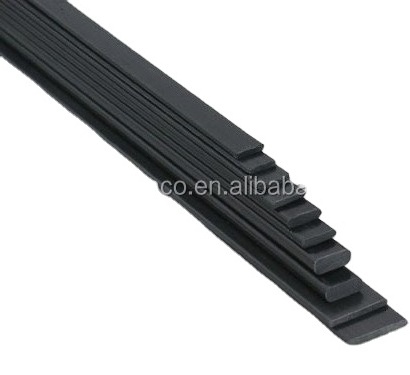

Carbon fiber Strip
Light Weight, High Strength
Process: Pulwinding
Color: Any
The specifications of our fiberglass rods/tubes ( outer dia. from 1.0mm to 80 mm), square tubes, rectangular tubes, FRP profiles, e tc. cover wide ranges. The regular colors include black, gray, red, orange, yellow, white, green, blue, etc. Actually, any color is available according to customers' requirements; and unit length could be from several millimeters to more than 30 kilometers (for small Dia rods ) according to customer's requirements.
Regular Sizes (Unit: mm)
|
Carbon Fiber Strip/Flat/Bar *Continuous Carbon Fiber Roving +Thermosetting Vinylester/Epoxy resin (UL94 Compliant)* *We list our regular sizes in the sheets below. If you fail in finding the items you request,feel free to contact us. We are experienced in custom products design* |
|||||
|
Diameter ( mm ) |
Diameter ( inch ) |
||||
|
Thickness |
Width |
Length |
Thickness |
Width |
Length |
|
0.5 |
3.0 |
100 |
.019 |
.018 |
39.4 |
|
0.5 |
10.0 |
1000 |
.019 |
.393 |
39.4 |
|
0.6 |
3.0 |
1000 |
.024 |
.118 |
39.4 |
|
0.6 |
5.0 |
1000 |
.024 |
.196 |
39.4 |
|
0.8 |
1.2 |
1000 |
.031 |
.047 |
39.4 |
|
0.8 |
3.0 |
1000 |
.031 |
.118 |
39.4 |
|
0.8 |
25.4 |
1000 |
.031 |
1.000 |
39.4 |
|
1.0 |
3.0 |
1000 |
.039 |
.118 |
39.4 |
|
1.0 |
6.0 |
1000 |
.039 |
.236 |
39.4 |
|
2.0 |
5.0 |
1000 |
.079 |
.197 |
39.4 |
|
2.0 |
15.0 |
1000 |
.079 |
.591 |
39.4 |
|
3.0 |
12 |
1000 |
.118 |
.472 |
39.4 |
|
3.0 |
15 |
1000 |
.118 |
.591 |
39.4 |
|
3.0 |
30 |
1000 |
.118 |
1.181 |
39.4 |
|
4.0 |
15 |
1000 |
.157 |
.591 |
39.4 |
Application :
|
Automotive · Light Aircraft Tubing · Construction · Duct rod / Fish rods · Aerospace Instrument & Interior Supports · Photography & Sound Booms · Outer Space & Terrestrial Antennae Supports · Corrosion Resistant Equipment Marine |
· Sporting Goods · Oil & Gas · Robotic Arms & Supports · Power Generation · Window Shades · Wastewater Treatment · Advertising Panels · Lifting Spars |
