Quick Details
-
Ejector Stroke(mm):
-
130 mm
-
Ejector Force(kN):
-
45 kN
-
Theoretical Shot Volume(cm³):
-
220 cm³
-
Injection Rate (g/s):
-
100 g/s
-
Injection Weight (g):
-
200 g
-
Screw Speed (rpm):
-
150 - 450 rpm
-
Screw diameter (mm):
-
40 mm
-
Screw L/D Ratio:
-
21, 21
-
Weight (KG):
-
4300 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
380 mm
-

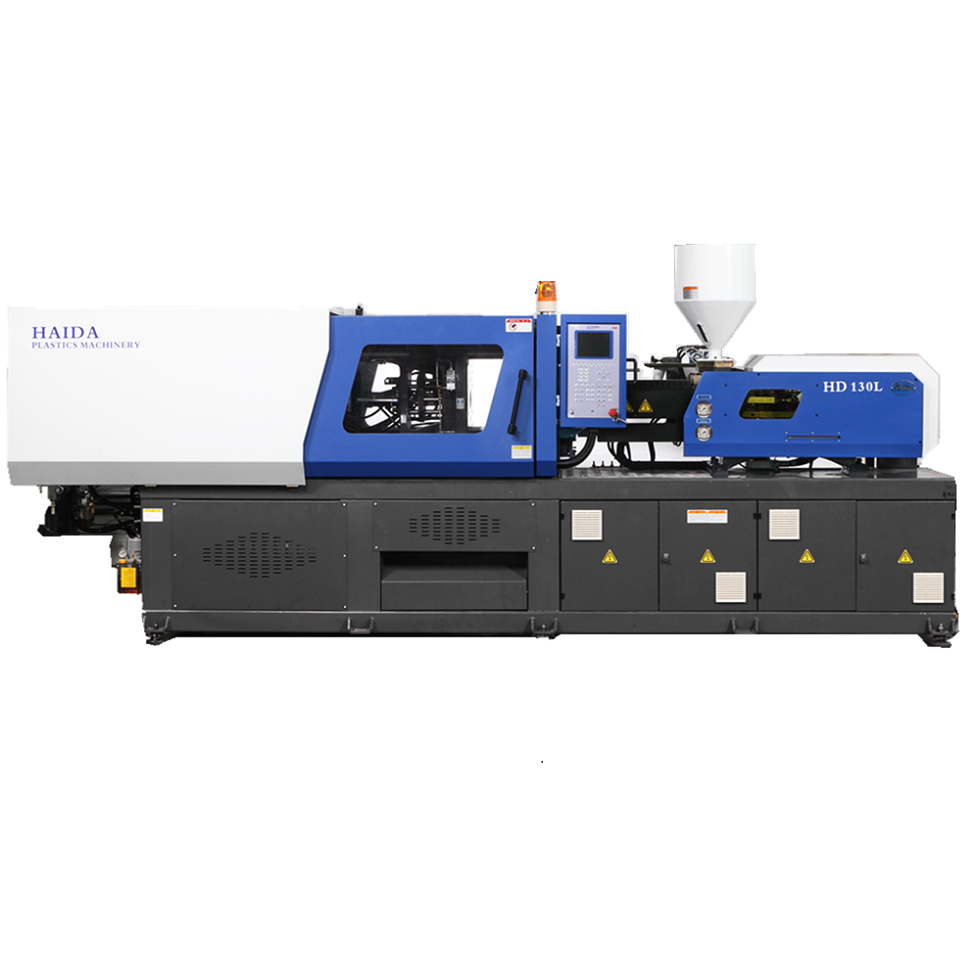

Model Number:
-
HD130L
-
Brand Name:
-
HAIDA
-
Power (kW):
-
13 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
YES
-
Color:
-
Blue \ White
-
Application:
-
cap
-
Injection Pressure:
-
182
-
Machine dimension(L*W*H):
-
4.85*1.2*2M
-
Heating power:
-
9.5KW
-
System Pressure:
-
16Mpa
-
Mold Location Recess Diameters:
-
125MM
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
420mm
-
Distance between Tie Bars(Height)(mm):
-
420mm
-
Mold Height(mm):
-
150 - 450 mm
-
Ejector Stroke(mm):
-
130 mm
-
Ejector Force(kN):
-
45 kN
-
Theoretical Shot Volume(cm³):
-
220 cm³
-
Injection Rate (g/s):
-
100 g/s
-
Injection Weight (g):
-
200 g
-
Screw Speed (rpm):
-
150 - 450 rpm
-
Screw diameter (mm):
-
40 mm
-
Screw L/D Ratio:
-
21, 21
-
Weight (KG):
-
4300 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
380 mm
-
Model Number:
-
HD130L
-
Brand Name:
-
HAIDA
-
Power (kW):
-
13 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
YES
-
Color:
-
Blue \ White
-
Application:
-
cap
-
Injection Pressure:
-
182
-
Machine dimension(L*W*H):
-
4.85*1.2*2M
-
Heating power:
-
9.5KW
-
System Pressure:
-
16Mpa
-
Mold Location Recess Diameters:
-
125MM
WIDER APPLICATION SCOPE
L series with strong inclusive platform continue and strive to improve various special requirements for configuration. Centered on customer demand, provide compressive and efficient solutions to meet various special requirements
for processing. Coexisted specificity and generality, screw of multiple diameters are optional for each model, to
realize optimized product quality. High precision, repeated accuracy, rapidity or dynamics, no matter which one you
need, you will be satisfied with L series which can meet
various technical requirements for injection.
SOPHISTICATED AND RELIABLE STABILITY
Accumulated decades of experience in design and
manufacturing, L series has advantages such as platen
with high strength, high rigidity, impact resistance, uniform stress distribution and less transformation, etc.
Toggle with oiling bush, equipped with centralized
automatic lubrication system to have better lubricating
effect and extend service life of joints. Adopt new frame
type structure to have more reasonable stress on
machine body, and strengthened column has improved
rigidity of wall effectively.
USER-FRIENDLY DEGISN
SIMPLE AND EFFECTIVE
Effectively improved injection seat, centering and fine
regulating device of nozzle, the users may center and
adjust the nozzle easily.
FAST AND FLEXIBLE
Various ejection mode; the ejection force and speed
may be set in accordance with product requirements, to
improve the rate of finished products. High-speed ejection can shorten the idle-running time significantly.
SIMPLIFIED CONTROL
Latest easily-operated controller for injection machine
has shorter response time, LCD display with eight-level
gray scales.
GREAT COST PERFORMANCE
Standard hose safety chains, avoid accidents caused by
Adopt plastic machine serve pump system of world
|
ITEM
|
|
UNIT
|
DATA
|
|
|
|||
|
Injection Unit
|
Screw Diameter
|
mm
|
38
|
40
|
45
|
|||
|
|
Screw L/D Ratio
|
L/D
|
22.1
|
21
|
18.7
|
|||
|
|
Injection Volume
|
cm
3
|
199
|
220
|
278
|
|||
|
|
Shot Weight
|
g
|
181
|
200
|
253
|
|||
|
|
Injection Pressure
|
Mpa
|
201
|
182
|
143
|
|||
|
Clamping Unit
|
Clamping Force
|
kN
|
1300
|
|
|
|||
|
|
Opening Stroke
|
mm
|
380
|
|
|
|||
|
|
Mould Thickness(Min-Max)
|
mm
|
150-450
|
|
|
|||
|
|
Space Between Tie-Bars
|
mm
|
420×420
|
|
|
|||
|
|
Ejector Force
|
kN
|
45
|
|
|
|||
|
|
Ejector Stroke
|
mm
|
130
|
|
|
|||
|
General
|
Motor Power
|
kW
|
13
|
|
|
|||
|
|
Heater
|
kW
|
9.5
|
|
|
|||
|
|
Pump Pressure
|
Mpa
|
16
|
|
|
|||
|
|
Machine Dimension
|
m
|
4.78×1.19×1.98
|
|
|
|||
|
|
Machine Weight
|
T
|
3.8
|
|
|
|||
|
|
Mould Orientation Ring Diameter
|
mm
|
Φ125
|
|
|
|||
|
|
Nozzle Radius
|
mm
|
SR10
|
|
|
|||
