Quick Details
-
Voltage:
-
220v/380V/others
-
Dimension(L*W*H):
-
1.2*1.1*1.55m
-
Power (kW):
-
20~22
-
Weight (KG):
-
400 KG
-
Product Name:
-
Jiuxu 2024 hydraulic drive H56 model Pu foam spray equipment
-
Applicable materials:
-
PU Chemical A+B,polyurea coating A+B
-
Application:
-
Spray Wall,roof,house
-
Drive mode:
-
Hydraulic Pressure
-
Air source:
-
0.5-0.8mpa≥0.5m3/min
-
Max output flow:
-
2-12kg/min
-
Max heating hose length:
-
120m
-
Heating power:
-
22kw
-
Insulation material mixing ratio:
-
1:1 or 1:2(variable)
-
Cleaning:
-
Self Cleaning
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JX
-
Machine Type:
-
Fast Mould Change machine
-
Voltage:
-
220v/380V/others
-
Dimension(L*W*H):
-
1.2*1.1*1.55m
-
Power (kW):
-
20~22
-
Weight (KG):
-
400 KG
-
Product Name:
-
Jiuxu 2024 hydraulic drive H56 model Pu foam spray equipment
-
Applicable materials:
-
PU Chemical A+B,polyurea coating A+B
-
Application:
-
Spray Wall,roof,house
-
Drive mode:
-
Hydraulic Pressure
-
Air source:
-
0.5-0.8mpa≥0.5m3/min
-
Max output flow:
-
2-12kg/min
-
Max heating hose length:
-
120m
-
Heating power:
-
22kw
-
Insulation material mixing ratio:
-
1:1 or 1:2(variable)
-
Cleaning:
-
Self Cleaning

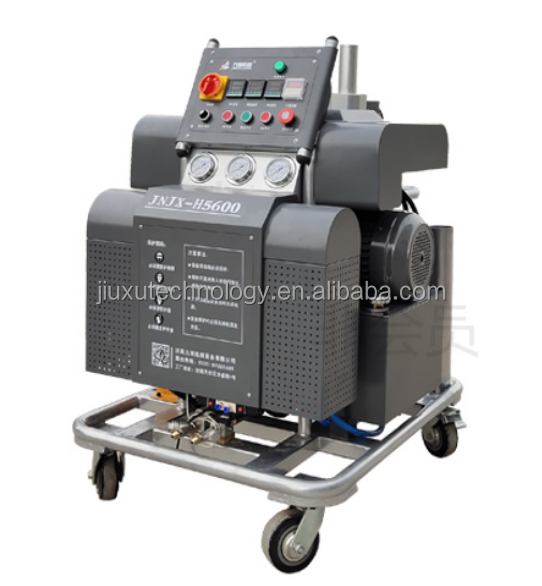

Jiuxu 2024 hydraulic drive H56 model Pu foam spray equipment
Product Description
Hydraulic driven machine-H56 model
Jiuxu 2024 hydraulic drive Pu foam spray equipment
Hydraulic driven machine-H56 model
Jiuxu 2024 hydraulic drive Pu foam spray equipment
JX-H56 is a professional,cost effective pu spray machine,it and inject machine,it is high pressure with heating industry machine,
It has complete functions. It can not only spray polyurethane foam for house insulation and sound insulation, but also spray polyurea coating for waterproofing, trucks, etc., and can also inject polyurethane foam for plates, etc
Product Paramenters
|
item
|
Jiuxu 2024 hydraulic drive H56 model Pu foam spray equipment
|
|
Drive mode
|
Hydraulic Pressure
|
|
Air source
|
0.5-0.8mpa 0.6m3/min
|
|
Max output flow
|
2-12kg/min
|
|
Max heating hose length
|
120m
|
|
Heating power
|
20-22kw
|
|
Maximum output pressure
|
36Mpa
|
|
AB material mixing ratio
|
1:1
|
|
Voltage
|
220v/380V
|
|
Dimension(L*W*H)
|
1.2*1.1*1.55m
|
|
Weight (KG)
|
400KG
|
|
Applicable materials
|
PU Chemical A+B,polyurea coating A+B
|
Details Images
|
Packing lists:
|
|
|
|
|||
|
Main machine
|
1 SET
|
P2 spray gun
|
1 SET
|
|||
|
lift pump
|
2 Pieces
|
15m heating hose
|
1 SET
|
|||
|
Main air pipe
|
1 SET
|
Spray gun connector
|
2 Pieces
|
|||
|
Feed delivery pipes
|
2 Pieces
|
Air delivery pipes
|
1 SET
|
|||
|
Accessories box
|
1 SET
|
Manual
|
1 Copy
|
|||
