Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GOOTU
-
Model Number:
-
JSY-H48102E160-D
-
Input Voltage:
-
220/230Vac
-
Output Voltage:
-
230Vac
-
Output Current:
-
44.3A
-
Output Frequency:
-
50Hz/ 60Hz
-
Certificate:
-
CE
-
Warranty:
-
2 Years
-
Weight:
-
15.7KGS
-
Product name:
-
Hybrid Solar Inverter
-
Application:
-
Home Solar Power System
-
Inverter type:
-
On Off Solar Inverter
-
Protection:
-
Short Circuit Overload Overvolt Overtemp
-
Display:
-
LCD Display
-
Battery type:
-
Lead Acid \ Lithium \ Gel
-
Rated power:
-
10200W
-
Communication:
-
RS232/WIFI/Remove LCD/GPRS
-
Waveform:
-
Pure Sine Wave
-
Battery Voltage:
-
48VDC
Quick Details
-
Output Type:
-
Single, DUAL
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
98%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GOOTU
-
Model Number:
-
JSY-H48102E160-D
-
Input Voltage:
-
220/230Vac
-
Output Voltage:
-
230Vac
-
Output Current:
-
44.3A
-
Output Frequency:
-
50Hz/ 60Hz
-
Certificate:
-
CE
-
Warranty:
-
2 Years
-
Weight:
-
15.7KGS
-
Product name:
-
Hybrid Solar Inverter
-
Application:
-
Home Solar Power System
-
Inverter type:
-
On Off Solar Inverter
-
Protection:
-
Short Circuit Overload Overvolt Overtemp
-
Display:
-
LCD Display
-
Battery type:
-
Lead Acid \ Lithium \ Gel
-
Rated power:
-
10200W
-
Communication:
-
RS232/WIFI/Remove LCD/GPRS
-
Waveform:
-
Pure Sine Wave
-
Battery Voltage:
-
48VDC
Product Description

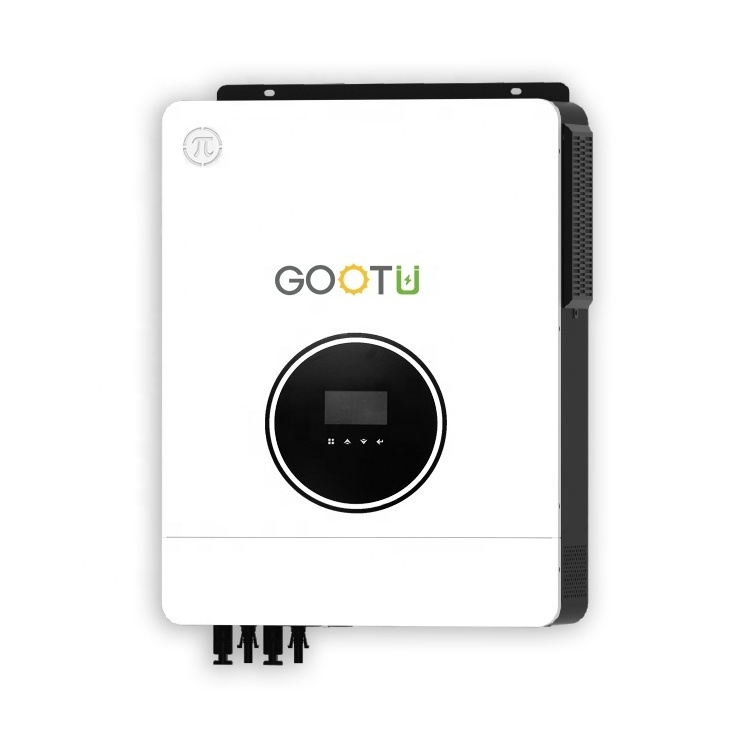

GOOTU π Series Hybrid Solar Inverter -- Cost-effective Premium Inverter
Main Features:
* Pure sine wave solar inverter (Grid Tie / Off Grid).
* 1.0 output power factor.
* WIFI & GPRS available for IOS and android.
* Support running without battery.
* One click to restore factory settings.
* Built-in 160A MPPT solar charger. (Dual / Single MPPT optional)
* Built-in lithium battery automatic activation.
* Built-in anti-dusk kit for harsh environment(optional).
* High PV input voltage range(360~500VDC)
* High PV input voltage range(360~500VDC)
* Smart battery charge design to optimize battery life. * Touch button, RGB light.
* Dual output / PV input.
Note:
* The π Series Inverters are wide voltage Hybrid Inverters. The voltage that starts to connect to the solar panels must be above 120V for the Hybrid Inverter to work normally. If you have any questions before order, please feel free to contact us, thank you!
* The π Series Inverters are wide voltage Hybrid Inverters. The voltage that starts to connect to the solar panels must be above 120V for the Hybrid Inverter to work normally. If you have any questions before order, please feel free to contact us, thank you!
Data Sheet
|
Model
|
JSY-H4872E140-D
|
JSY-H4882E160-D
|
JSY-H48102E160-D
|
|||
|
Rated Output Power
|
7200W/7200VA
|
8200W/8000VA
|
10200W/10200VA
|
|||
|
Max. PV Input Power
|
8200W
|
8200W
|
10200W
|
|||
|
Max. Solar Charging Current
|
160A
|
160A
|
160A
|
|||
|
Grid Tie Operation
|
|
|
|
|||
|
PV Input(DC)
|
|
|
|
|||
|
Normal DC Voltage / Max. DC Voltage
|
360VDC/500VDC
|
|
|
|||
|
Start-up Voltage / Initial Feeding Voltage
|
90VDC/120VDC
|
|
|
|||
|
MPPT Voltage Range
|
90VDC~450VDC
|
|
|
|||
|
Number of MPPT Tracker / Max. Input Current
|
1/27A
|
|
|
|||
|
Grid Output(AC)
|
|
|
|
|||
|
Nominal Output Voltage
|
220/230/240VAC
|
|
|
|||
|
Output Voltage Range
|
195~253VAC
|
|
|
|||
|
Nominal Output Current
|
31.3A
|
35.6A
|
44.3A
|
|||
|
Power Factor
|
＞0.99
|
|
|
|||
|
Feed-in Grid Frequency Range
|
49~51±1HZ
|
|
|
|||
|
Efficiency
|
|
|
|
|||
|
Max. Conversion Effeciency(DC/AC)
|
98%
|
|
|
|||
|
Two Load Output Power
|
|
|
|
|||
|
Full Load
|
7200W
|
8200W
|
10200W
|
|||
|
Max. Main Load
|
7500W
|
8200W
|
10200W
|
|||
|
Max. Second Load(Battery Mode)
|
2400W
|
2733W
|
3400W
|
|||
|
Main Load Cut Off Voltage
|
44VDC
|
44VDC
|
44VDC
|
|||
|
Main Load Return Voltage
|
48VDC
|
48VDC
|
48VDC
|
|||
|
Off Grid Operation
|
|
|
|
|||
|
AC Input
|
|
|
|
|||
|
AC Start-up Voltage / Auto Restart Voltage
|
120-140VAC/180VAC
|
|
|
|||
|
Acceptable Input Voltage Range
|
90-280VAC/170-280VAC
|
|
|
|||
|
Max. AC Input Current
|
40A
|
40A
|
50A
|
|||
|
Nominal Operatiing Frequency
|
50/60HZ
|
|
|
|||
|
Super Power
|
14400W
|
16400W
|
20400W
|
|||
|
PV Input(DC)
|
|
|
|
|||
|
Max. DC Voltage
|
500VDC
|
|
|
|||
|
MPPT Voltage Range
|
90VDC~450VDC
|
|
|
|||
|
Number Of MPPT Tracker/Max. Input Current
|
1/27A
|
|
|
|||
|
Battery Mode Output(AC)
|
|
|
|
|||
|
Normal Output Voltage
|
48VDC
|
|
|
|||
|
Output Waveform
|
Pure Sine Wave
|
|
|
|||
|
Efficiency(DC to AC)
|
94%
|
|
|
|||
|
Battery & Charger
|
|
|
|
|||
|
Nominal DC Voltage
|
48VDC
|
|
|
|||
|
Max. Solar Charging Current
|
160A
|
160A
|
160A
|
|||
|
Max. AC Charging Current
|
120A
|
140A
|
140A
|
|||
|
General
|
|
|
|
|||
|
Physical
|
|
|
|
|||
|
Product Dimension
|
420*310*110mm
|
|
|
|||
|
Carton Dimension
|
588*463*205mm
|
|
|
|||
|
Net Weight
|
14.2KGS
|
14.2KGS
|
14.5KGS
|
|||
|
Gross Weight
|
15.7KGS
|
15.7KGS
|
16KGS
|
|||
|
Interface
|
|
|
|
|||
|
Communication Port
|
RS23 / WIFI / Remove LCD /GPRS
|
|
|
|||
|
Enviroment
|
|
|
|
|||
|
Operating Temperature
|
-10~50°C
|
|
|
|||
